2MP WDR Face Recognition Camera Module
US $24.70 - US $29.45
US $26.00 - US $31.00
Production Lead Time:
5 day(s)
Shipping Method:
express delivery
Model No.:
HAMPO-003-0689
Application:
Win XP/Win7/Win8/Win10/Linux
Sensor Size:
CMOS, 1/2.7" AR0230
Frame rate:
30fps
FOV:
73.5°
Function:
Wide Angle
Focusing:
Fixed Focus
Resolution:
1920*1080
Customised:
Yes
Size:
60*13(mm)
Description
Contact Supplier
Description
Product Description

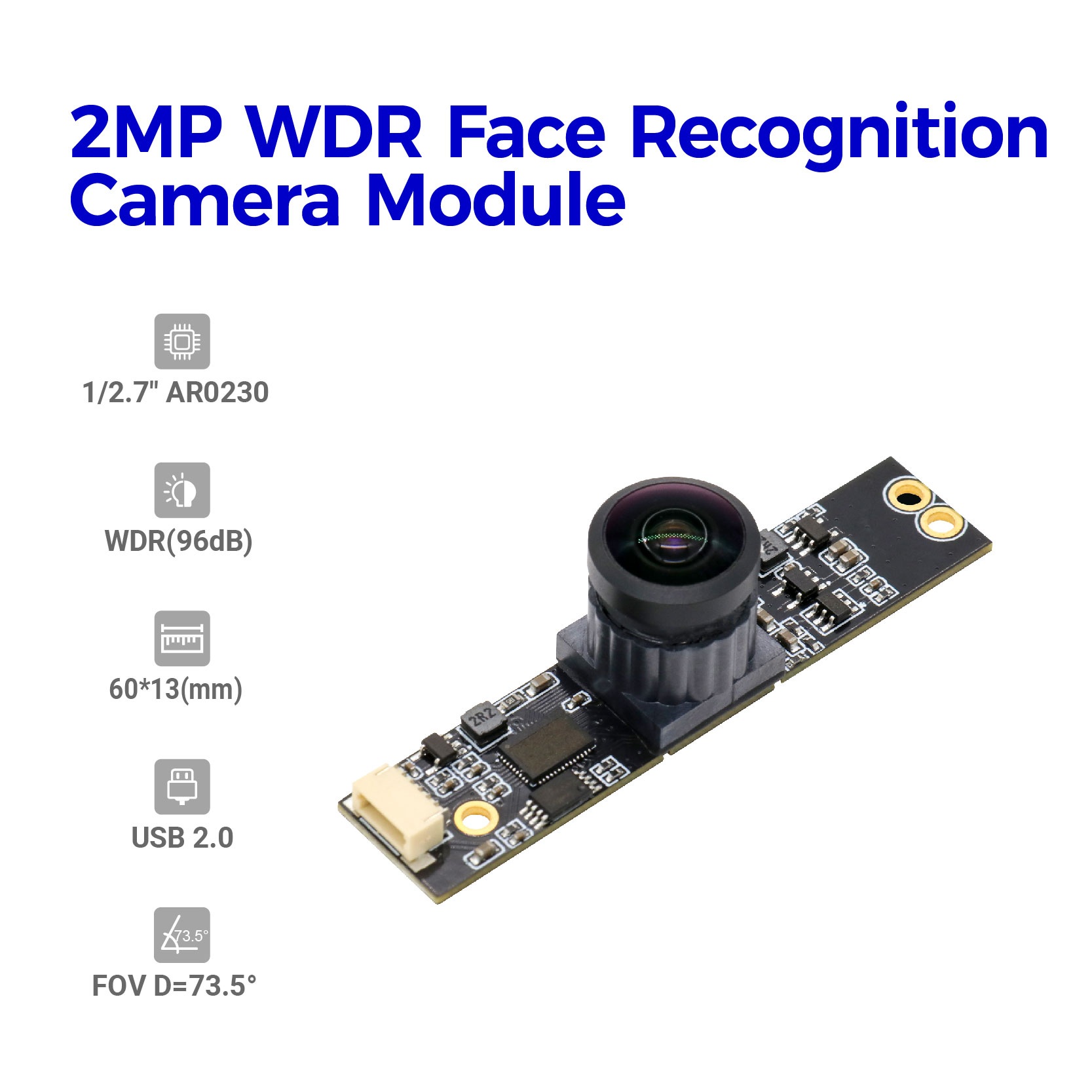

HAMPO-003-0689 is a 2MP HDR(High Dynamic Range) camera module with a wide view of angle no distortion lens,the dynamic range up to 96dB,which allow the camera could compensates for images where there are dark and bright areas with WDR technology,in which can see sharp image even under the backlight. This HDR USB camera moduless are compliant with UVC protocol, based on 1/2.7" AR0230 CMOS image sensor with pixel size of 3.0 x 3.0 µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This 2MP camera module captures sharp images at a 30fps high frame rate per second.
Key Features
Full HD Resolution: The camera module has a full HD resolution, max pixel 1920*1080.
HD Sensor AR0230 Chip: The high definition sensor chip AR0230 enables stable working performance with better clarity as well.
High Dynamic Range: The camera module with WDR technology, the max dynamic range could up to 96dB, which allow the camera capture a clear image or video even under the backlight condition.
73.5 Degree Large View: Comes with 73.5 degree large field of view, providing you with larger visual range and wider field of view.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

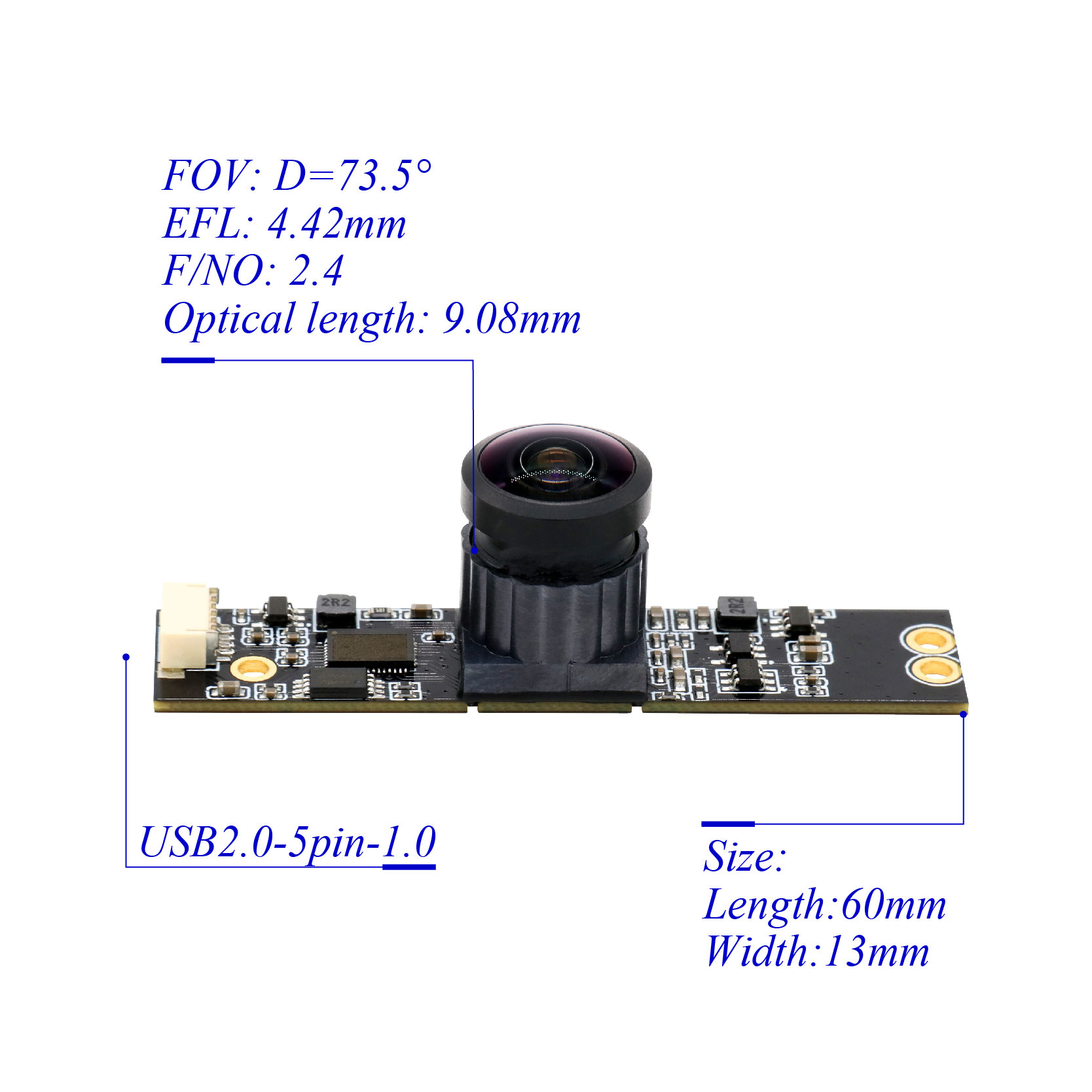

Wide Applications: The camera module with mini PCB board at 60mm*13mm, can be installed in most hidden and narrow position such as access control system, advertisement machine, license plate recognition,visual doorbell, smart terminal etc.

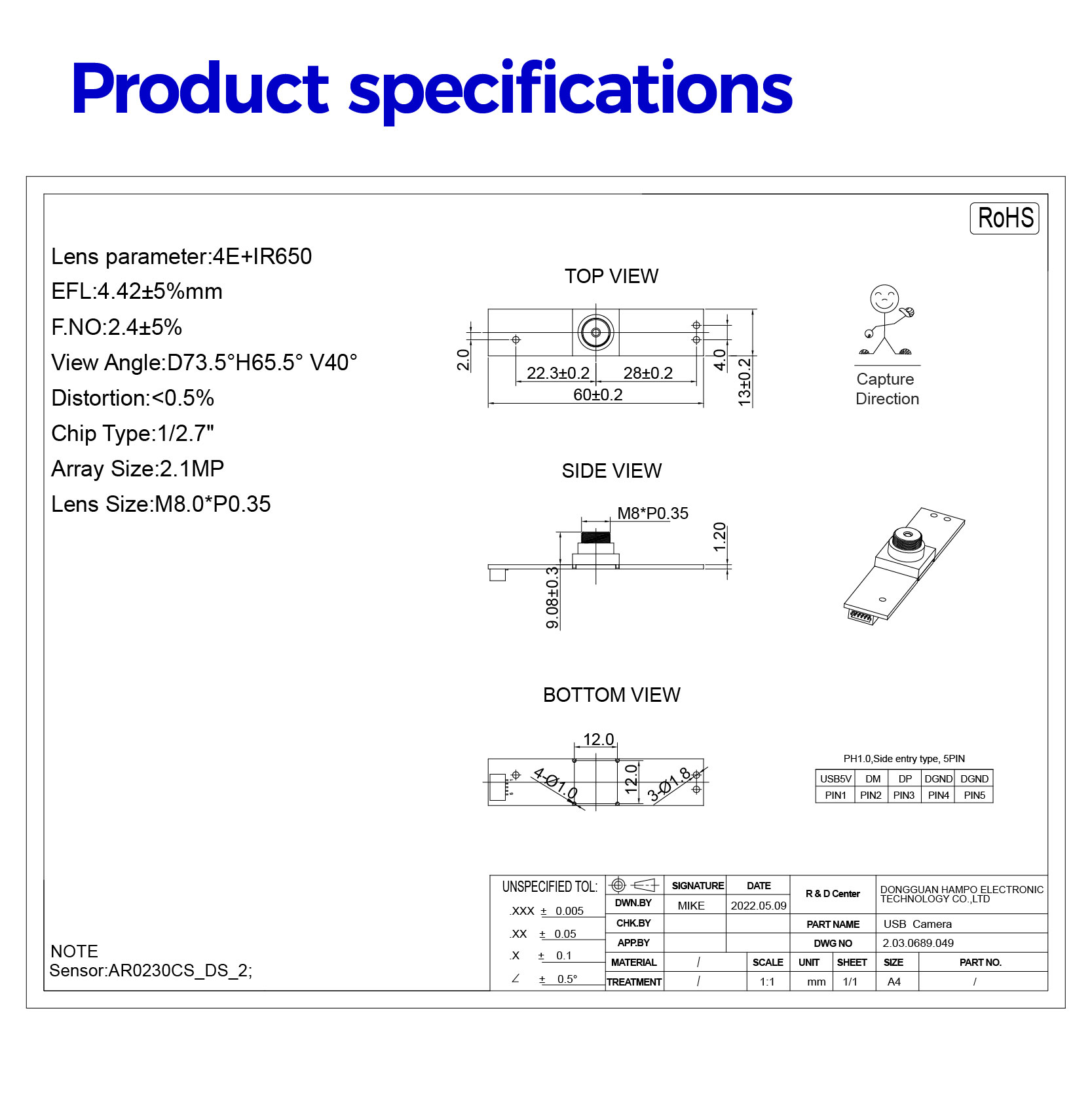

Specification
Company Profile

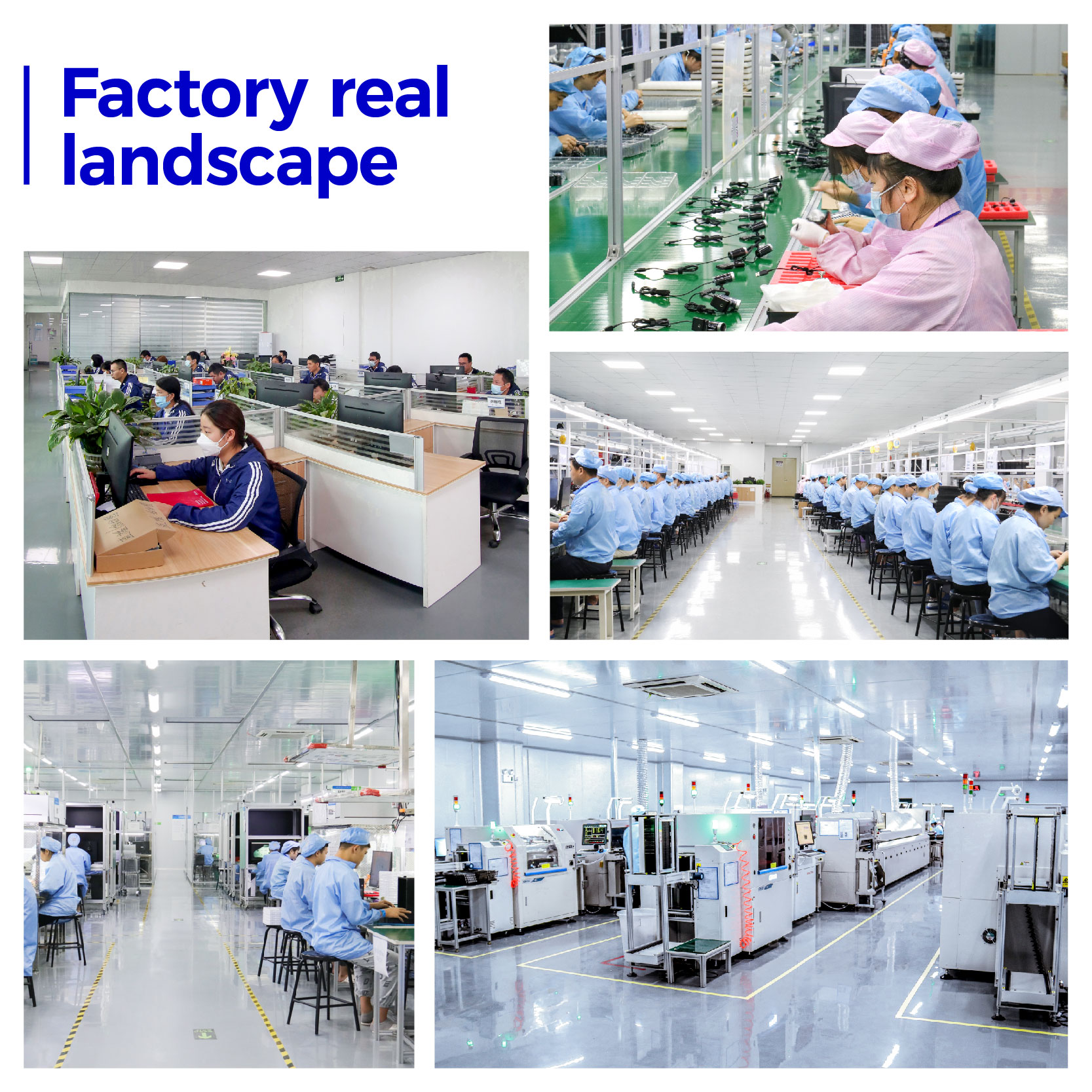

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
