2MP WDR Face RecognitionCamera Module

US $26.60 - US $30.40

US $28.00 - US $32.00

Production Lead Time:

5 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-003-0394

Special Features:

Face Recognition, H.264, AI algorithm

Resolution:

1920*1080

Compression Format:

H.264/MJPG/YUV

Focusing:

Aotu focus

Sensor:

1/2.7"

Function:

Built-in Mic

Customized support:

OEM, ODM

Frame Rate:

30fps

PCB Size:

32*32(mm)

FOV:

D=96°

Description

Contact Supplier

Product Description

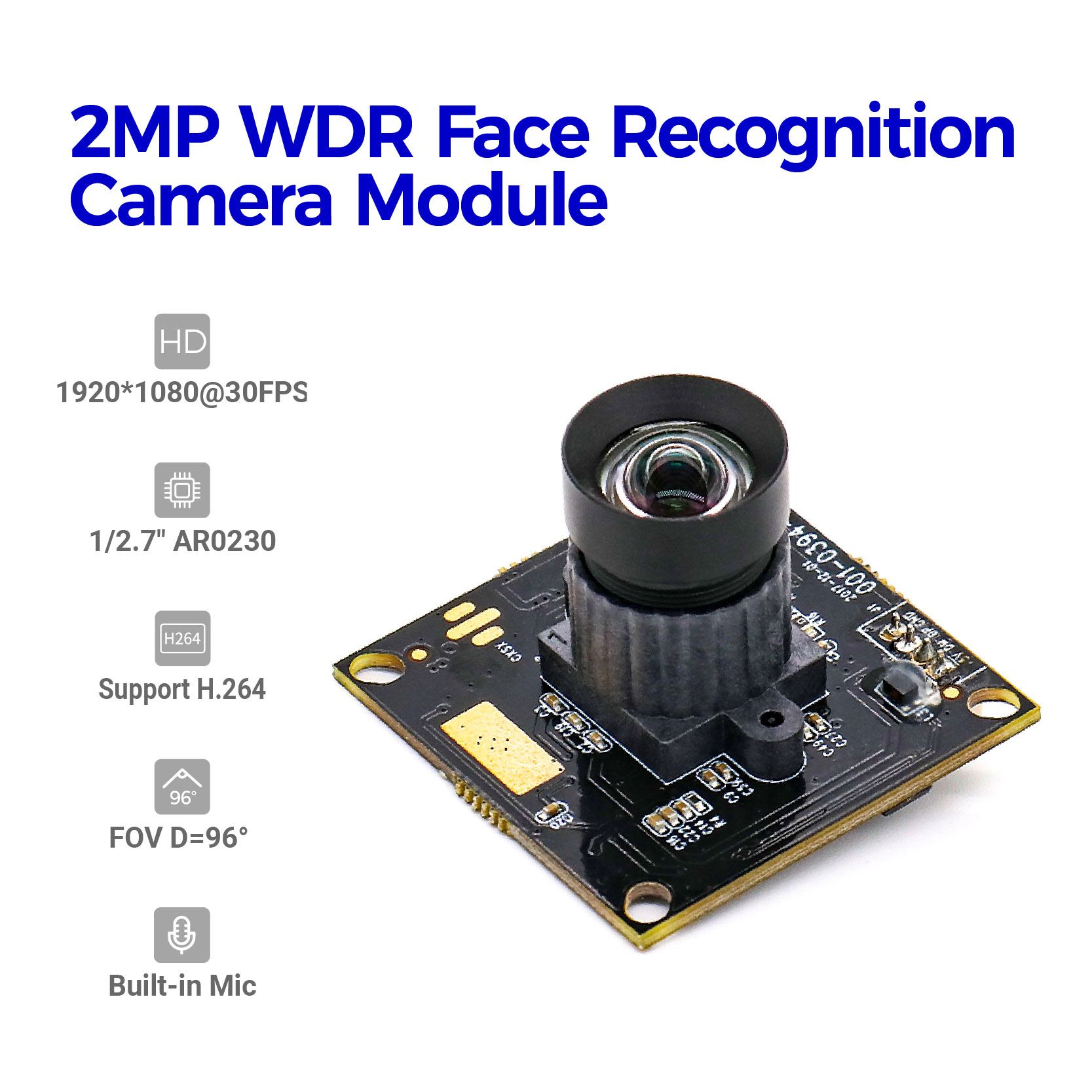

Hampo-03-0394, is 1080P Full HD USB 2.0 camera module featuring Wide Dynamic Range (WDR) and H.264 for AI face recognition. The WDR scheme used is multi−exposure WDR.
This allows the sensor to handle up to 96 dB of dynamic range. In WDR mode, the sensor sequentially captures two exposures by maintaining two separate reads and reset pointers that are interleaved within the rolling-shutter readout. This WDR camera is based on 1/2.7" AR0230 CMOS image sensor with advance 3.0µm pixel BSI technology.

Key Features

High Definition 1080P Webcam：High-definition 1080P video, capturing the most exciting details at every 30fps,it can record clear video even in dim light the picture quality is realistic and pure clear images

High speed USB2.0, Plug and Play：Get up and running immediately without having to bother about installing any drivers. USB Connecting port in this camera module support high speed usb 2.0 data transmission,improved the working efficiency.

Wide Application：Ideal for many applications like ATM Machine, Face Recognition,Robot, PC, Kiosk,Security Systems, Portable Video System, Video Phones, Industrial Machine Monitoring and Toys etc.

Compatible with most system :Compatible for OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/WIN CE with UVC/Android 4.0 or above (Except for IOS),plug and play,free driver UVC.

Specification

Model NO.	003-0394
Sensor Size	1/2.7"
Max Resolution	1920*1080P
Wide Dynamic Range	96dB
Output Format	Mjpg/YuY2
Working Current	Max500mA
Ttl	19mm
Origin	China
Feature	Mini Size
Remote Control	Without Remote Control
Pixel Size	3.0μm*3.0μm
Frame Rate	30fps

Applications

Machinary equipment All-in-one machine
Robot
Document scanner
Industrial machine

DroneMedical auxiliary equipment
Security camera
Face recognition
ATM

Company Profile

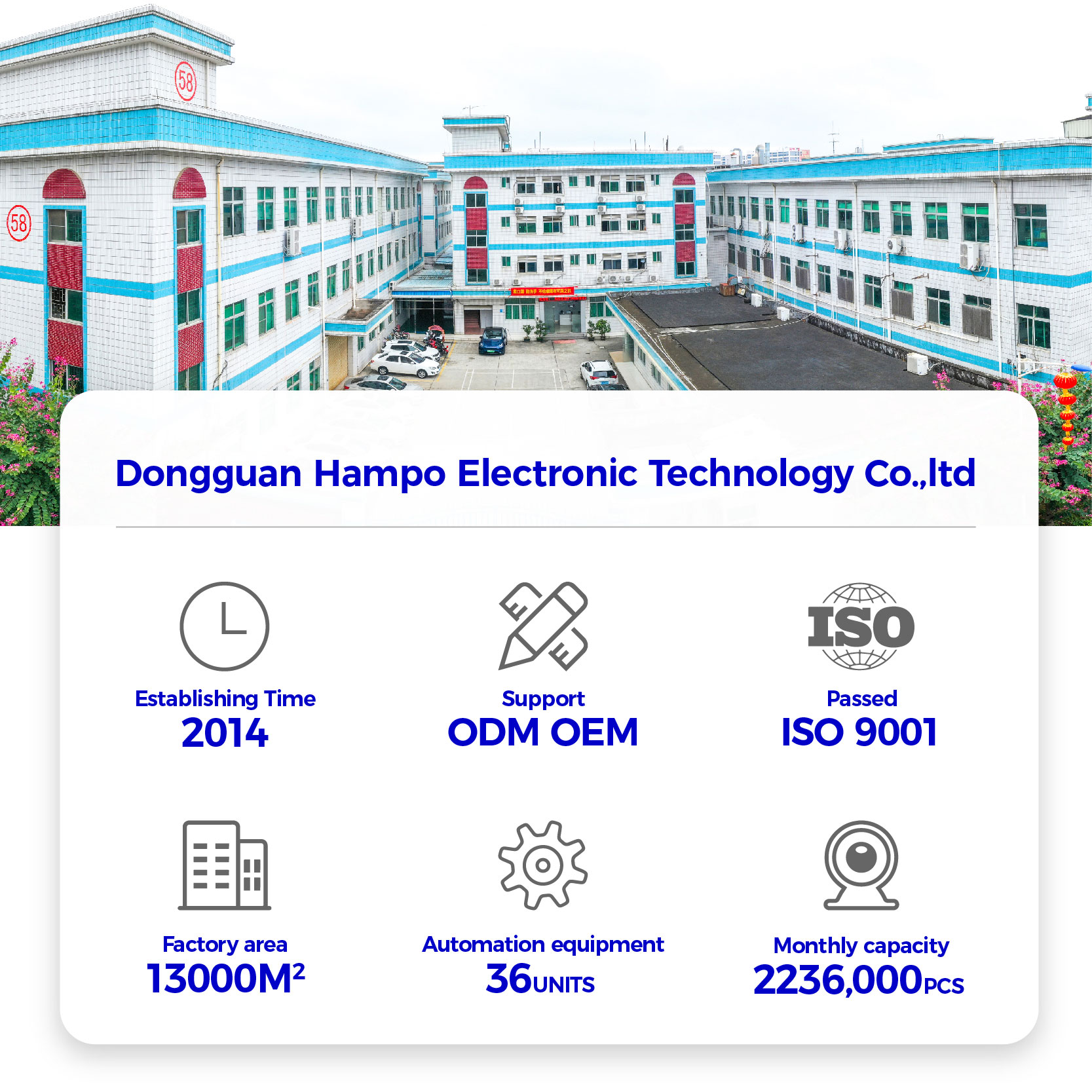

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

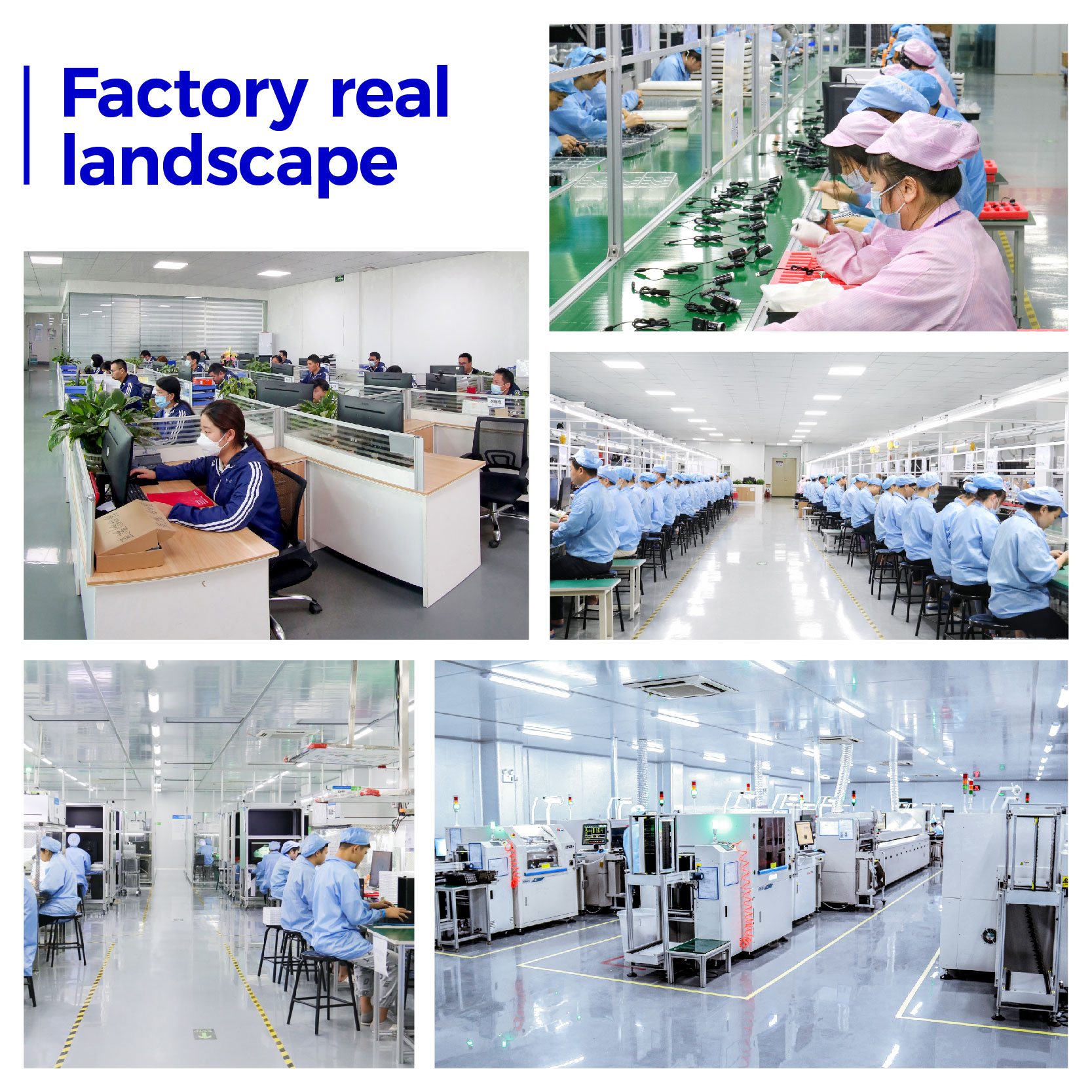

Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
