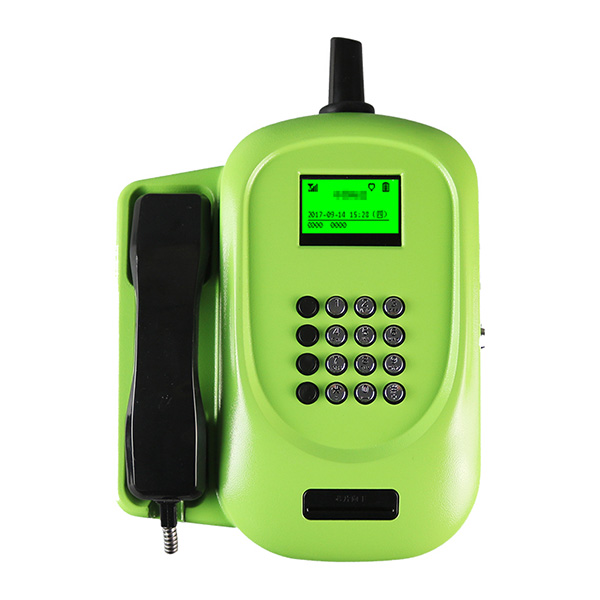

4G Swipe Card Waterproof Smart Landline Telephones

Production Lead Time:

60 day(s)

Shipping Method:

Air shipment, Sea shipment, Express shipment

Brand:

ODM/OEM

Model No.:

KT28

Size:

365mm*260mm*110mm

Weight:

4KGS

Power Source:

AC Power

Frequency Band:

TD-LTE：B38/B39/B40/B41 LTE-FDD：B1/B3/B5/B8

USB port :

Micro USB

Antenna :

External Full direction antenna

Description

Certification & Document

Contact Supplier

Index		Parameters
Basic	Phone material	Aluminum alloy die casting
	Handset material	Special explosion-proof PC/ABS
	Cord	304 stainless steel, built-in high-strength tensile steel cable, tensile strength ≥ 250kg
	Product size	365mm260mm110mm
	Weight	3.5kg
	Installation way	Wall mounted
	Environment	Indoor
		Outdoor, anti-water, anti rain protection
Communication	Network type	4G
Module	Working frequency	TD-LTE：B38/B39/B40/B41 LTE-FDD：B1/B3/B5/B8
LCD	Type	Dot matrix
	Pixel	128 × 64
	Color	Black font, green light
	Display fonts	Chinese/English
Keyboard	material	12 Zinc alloy,4（ABS+PC）
	numbers	16 keys，4*4
	Life of use	>2 Million times
Antenna	Type	External
	directional	Full direction
Interface	USB	MINI USB
	Serial port	623PCB
Power supply	Power voltage	DC 12V
	Working current	<600mA（DC12V）
Power adapter	Input voltage	100-240 AC
	Output voltage	12V/1A DC
	Cable length	AC cable length：1.5M
		DC cable length：2.2M
Power consumption	<2.0W
Performance	Reboot from sleep mode	<20S
	Plug in card reading time	<5S
Accessories	Assist part	Expansion bolt3, guide paper1
	key	1
	Power adapter	1
	User manual	1
others	Humidity	20％～95％(no condensation)
	Air pressure	86-106Kpa
	Working temperature	-20℃～+60℃
	Store temperature	-20℃～+60℃

Company Profile

Founded in 1996
100+ R&D engineers, hundreds of patents
Self-owned SMT & Assembly lines
Leading designer and manufacturer of FWPs, Android desk phones, CPEs, Outdoor payphones, Electronic student ID cards, Landline phones
Long-term partnership with China Mobile, China Unicom and China Telecom
Products being shipped to more than 50 overseas channel buyers and operators
