General Description

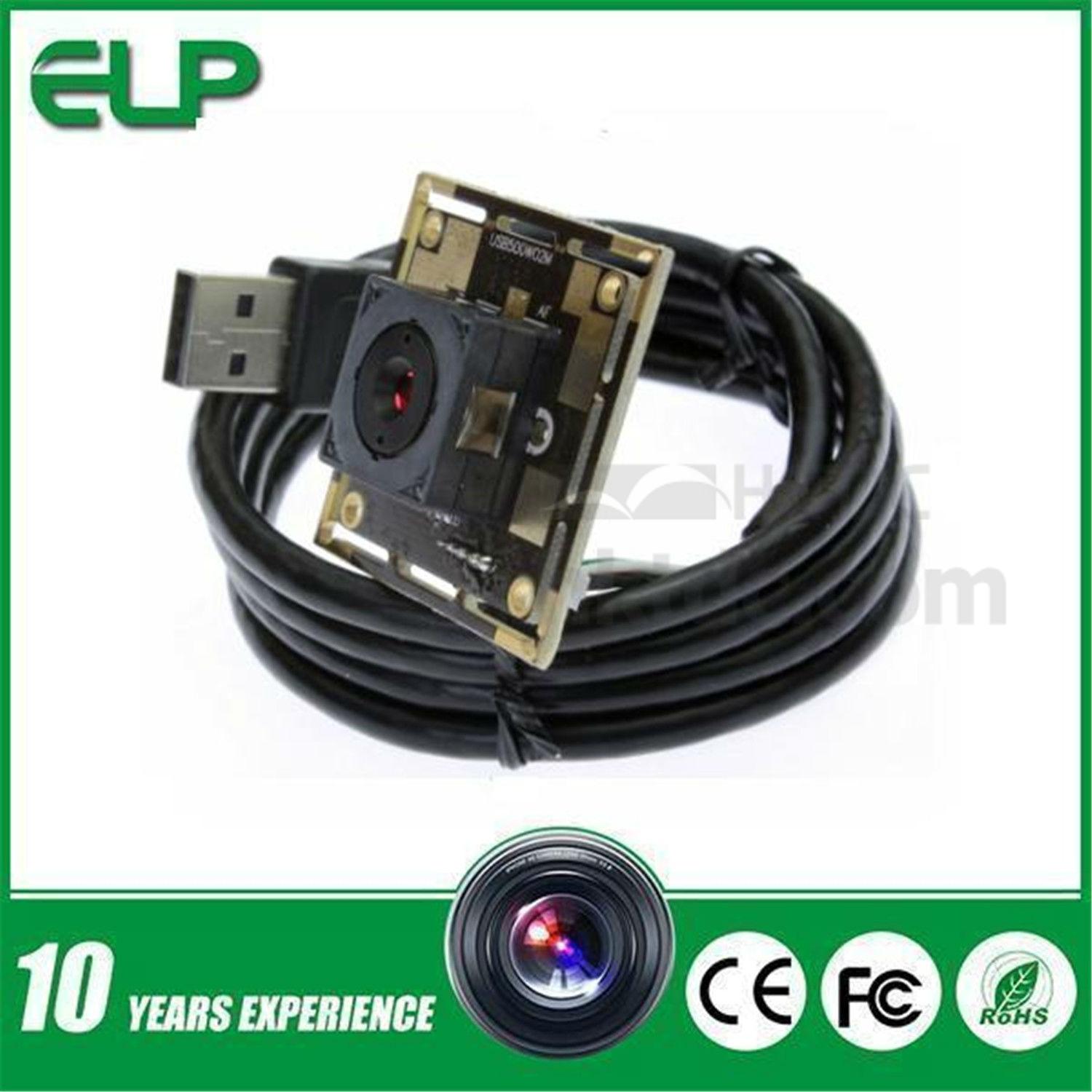

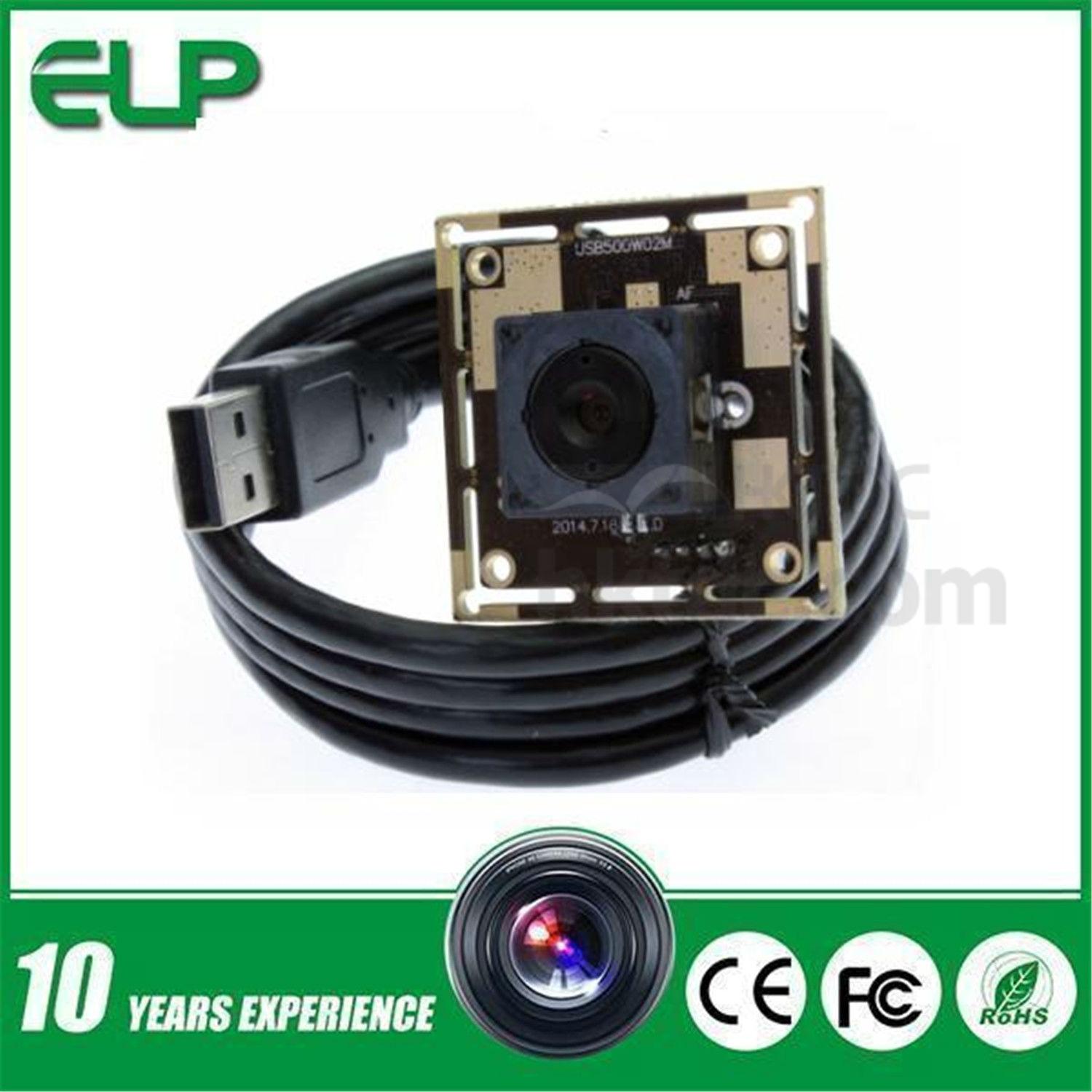

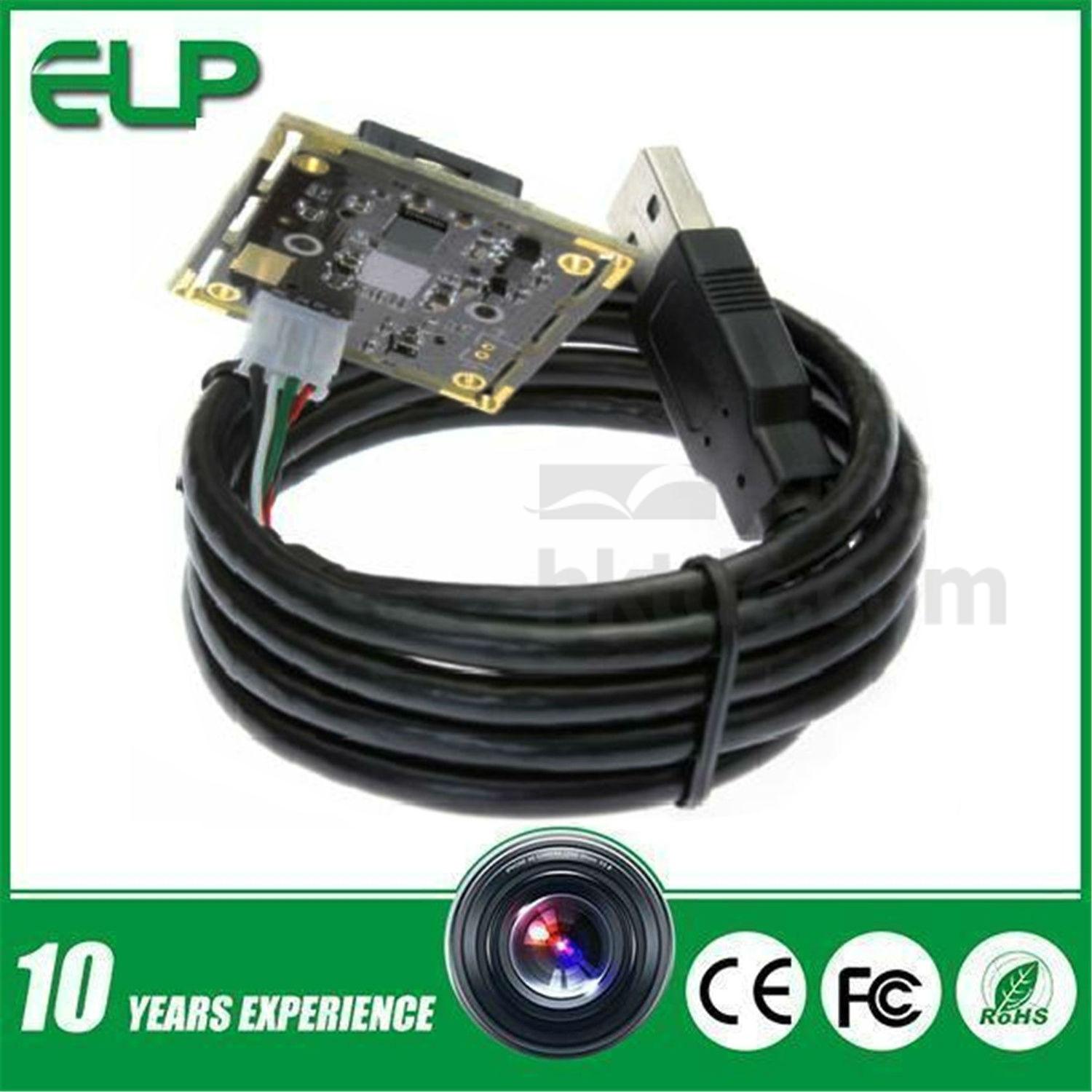

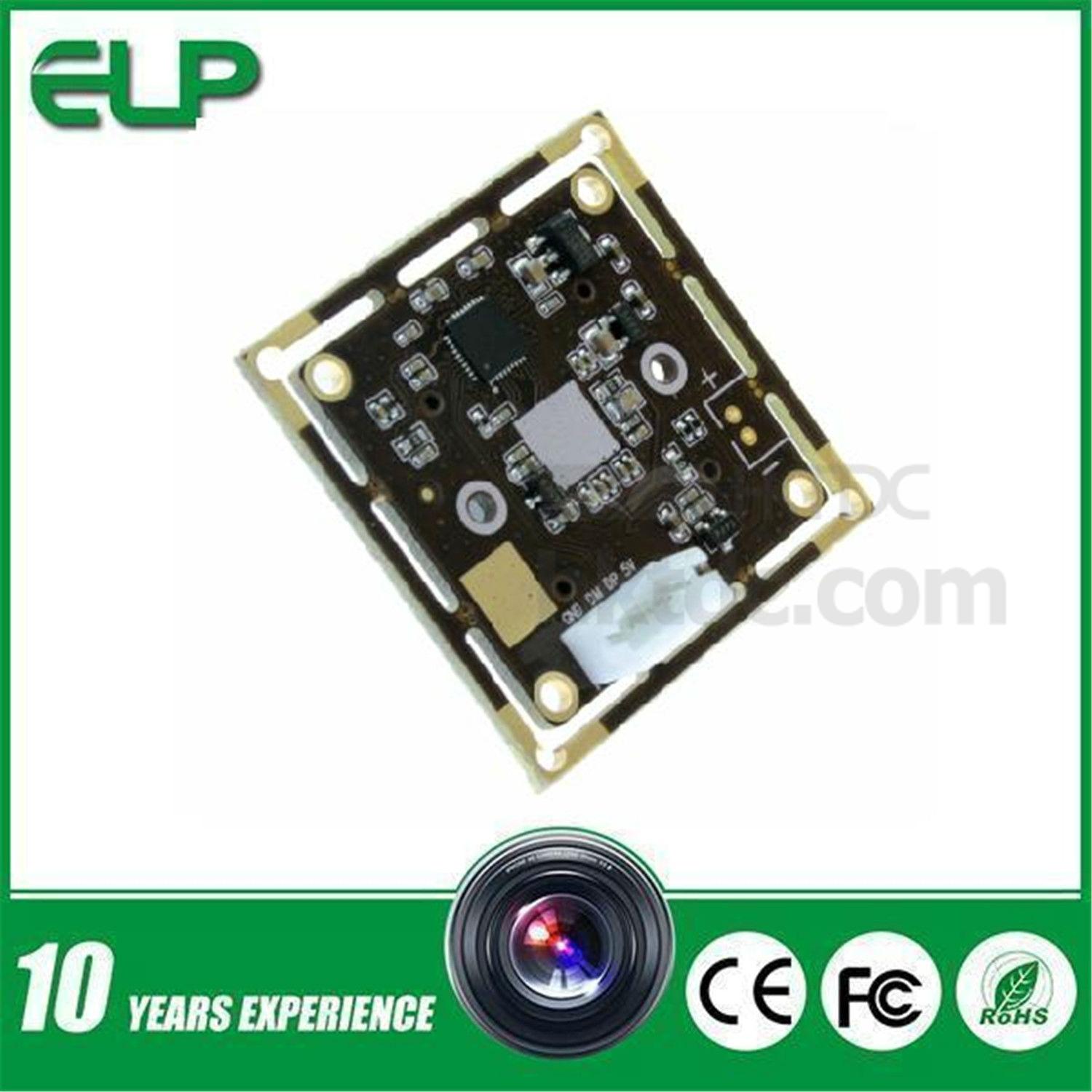

• The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys.
• The USB camera are ideal for equipment manufacturers, experimenters and hobbyists.


Application:

• Used for all kinds of machine as below:
• Machinery equipment, POS equipment, TV box, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, tablet external, evaluator, medical equipment, cat-eye system, simple security system, teaching system, project video capture, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, biological microscope, box inside surveillance, endoscope, medical auxiliary equipment etc.

Features

• High speed USB 2.0 interface.
• Super small outline and thin profile for embedded applications.
• High frame rate–30 fps in 1280X720 resolution.
• Low power consumption – ideal for portable equipment.
• Camera with UVC.
• Free driver, plug & play

Parameters
* Image Sensor: OmniVision1/4” Color CMOS image sensor OV5640
* LENS: HD 30 degree auto focus lens (45/60/100 degree no distortion, 170 degree fisheye lens optional)
* CABLE: 1m USB cable (2M/3M/5M optional)
(can also make the other special length cable according to your requirement)
* Signal Output: Serial data for USB standard compliant 2.0
* Performance:
2592 (H) x 1944 (V) pixels  MJPEG 15fps      YUY2 3fps
2048 (H) x 1536 (V) pixels  MJPEG 15ps       YUY2 3fps
1600 (H) x 1200 (V) pixels  MJPEG 15fps      YUY2 3fps
1920 (H) x 1080 (V) pixels  MJPEG 15fps      YUY2 3fps
1280 (H) x 1024 (V) pixels  MJPEG 15fps      YUY2 7.5fps
1280 (H) x 720 (V) pixels   MJPEG 30fps      YUY2 7.5fps
1024 (H) x 768 (V) pixels   MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels    MJPEG 30fps      YUY2 30fps
640 (H) x 480 (V) pixels    MJPEG 30fps      YUY2 30fps
320 (H) x 240 (V) pixels    MJPEG 30fps      YUY2 30fps
* Operating System: Linux 2.6.26 or above, Windows XP SP2or above
* Operating temperature: -30°C-70°C
* Power Consumption: 5V 120mA
* Dimensions (mm): 32mm*32mm/38mm*38mm
(can make other dimension as customers’ requirement)
