5MP OV5648 Fixed Focus USB Camera Module

US $28.00 - US $35.00

Production Lead Time:

7 day(s)

Shipping Method:

FOB SZ

Model No.:

003-1500

Size:

38mm*38mm

Sensor:

OV5648

FOV:

D=83.3°

Focusing:

Resolution:

2592*1944

Description

Contact Supplier

Product Description

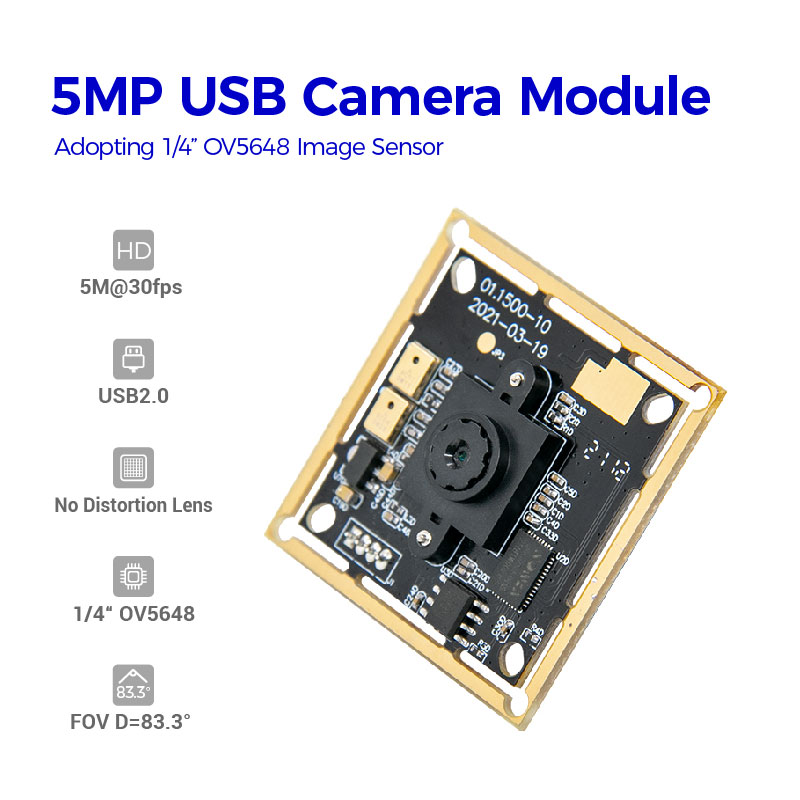

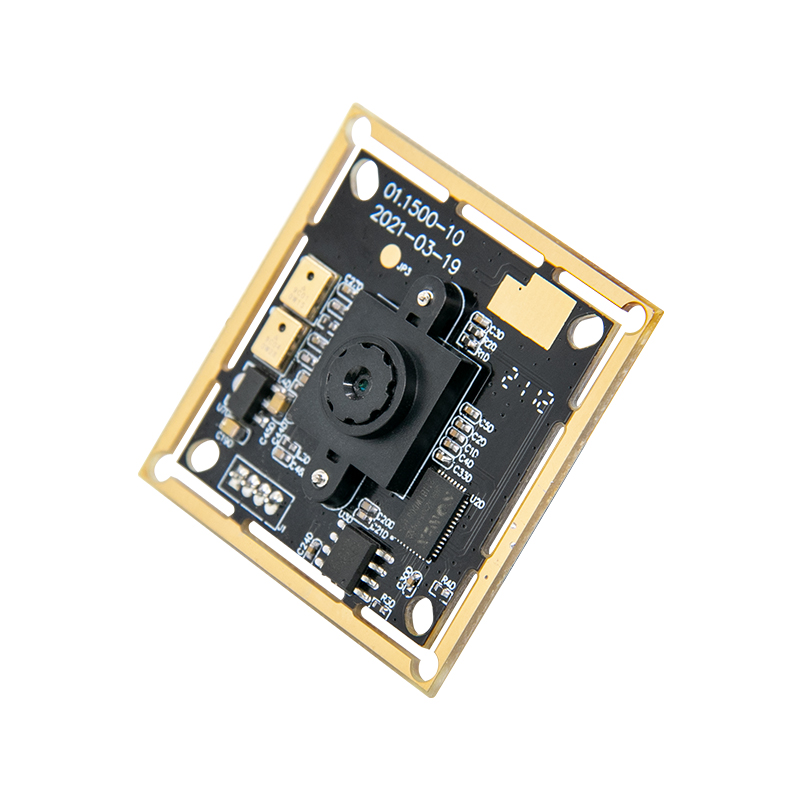

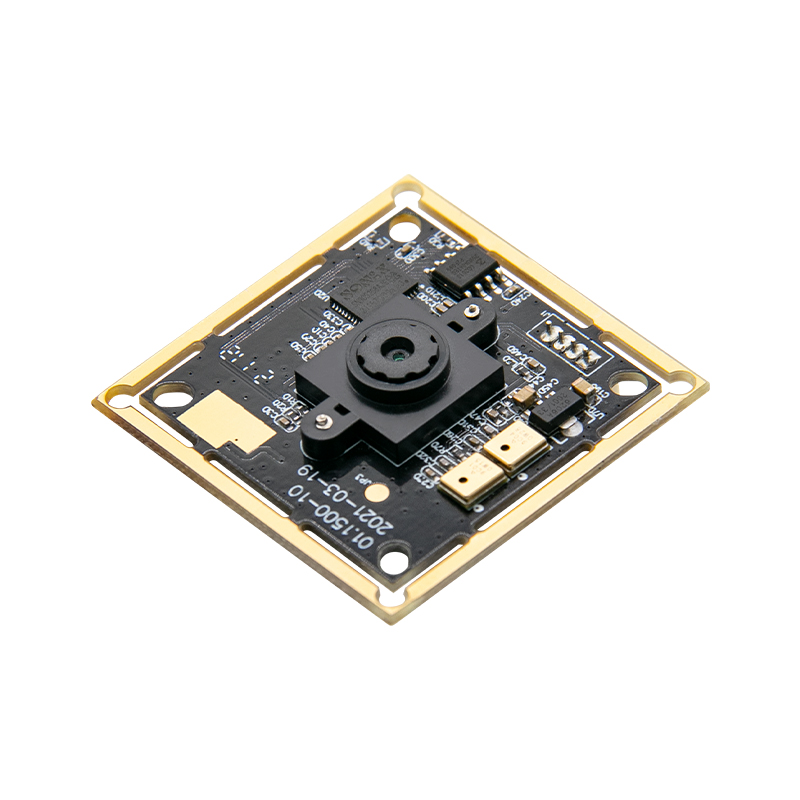

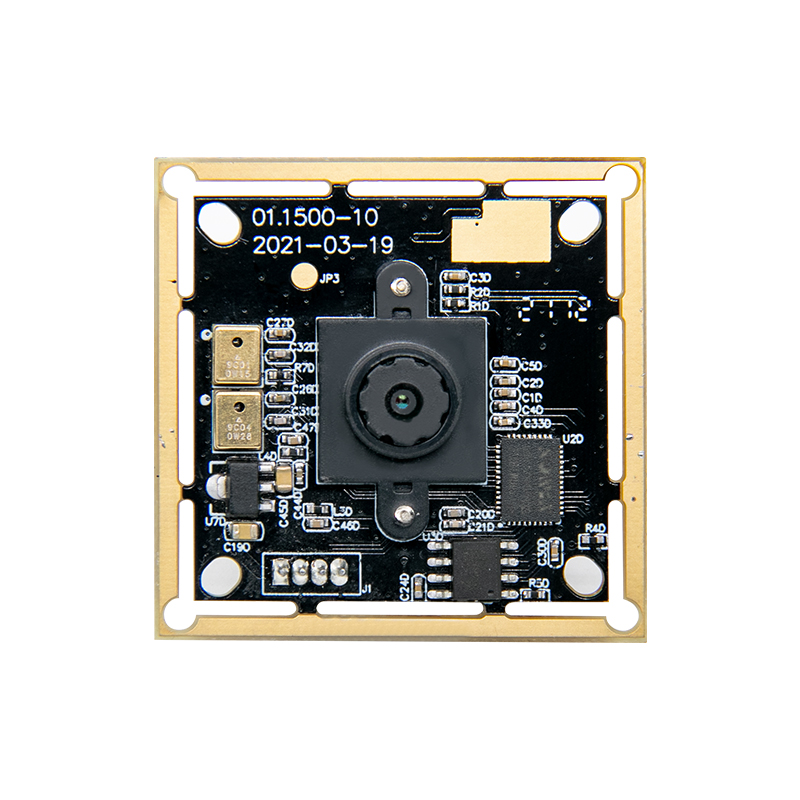

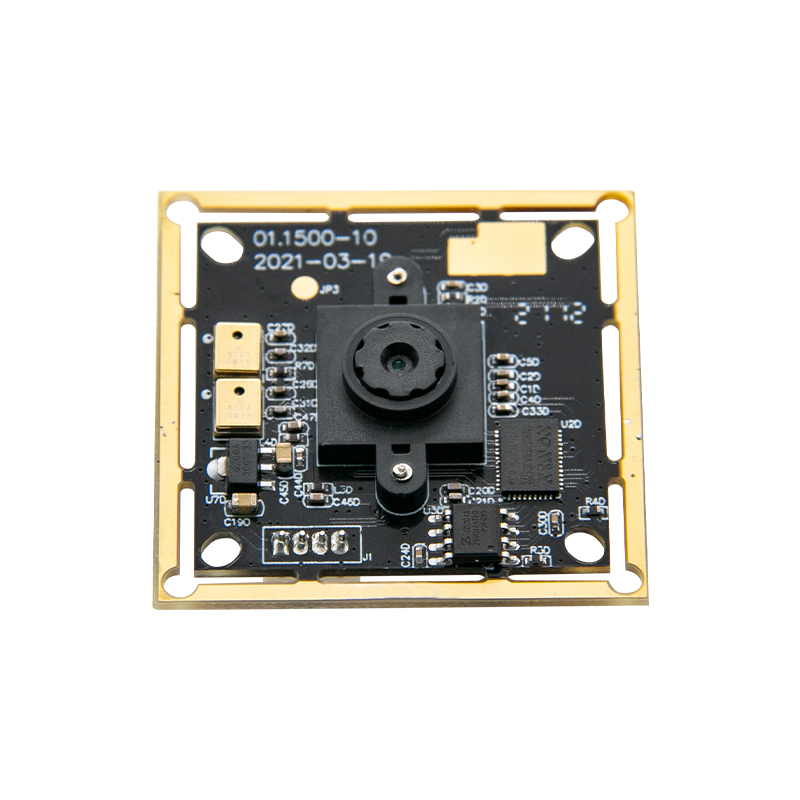

Hampo 003-1500 is a 5megapixel high resolutionfF mini camera module, which is on the basic of 1/4" OV5648 CMOS sensor, the image quality is very high and stable. The USB connection port in the camera module supports USB 2.0 high-speed data transmission and OTG protocol (UVC). The 5MP USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression The camera module with ultra tiny PCB board at 32mm*32mm, can be installed in most hidden and narrow position such as document scanner, LED large screen displayer, advertisement machine, all-in-one machine, laptop,intelligent electronic blackboard and other educational products application. Compatible with Windows 7, 8/10/11, Linux operating system.

Key Features

More than HD: This camera adopts 5MP OV5648 sensor for sharp image and accurate color reproduction.

Capture Video with Audio: High frame rates, MJPG 15fps@2592*1944, 30fps@1080P; YUY2 30fps@640x 480.

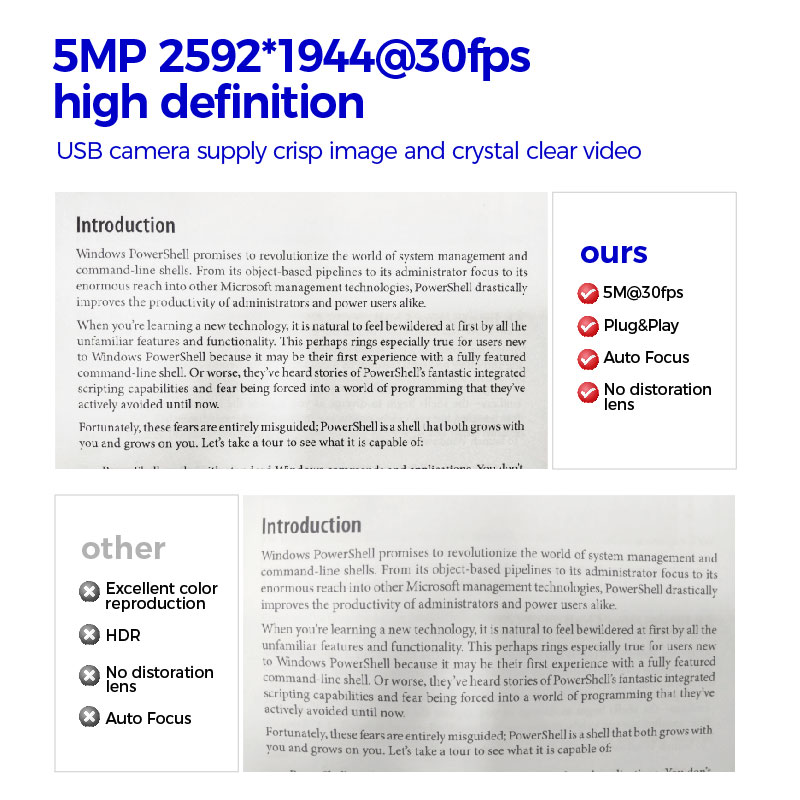

High Quality of Image/Video: The camera with high definition 2592*1944P and lower color reproduction deviation produce sharp image and accurate information.

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

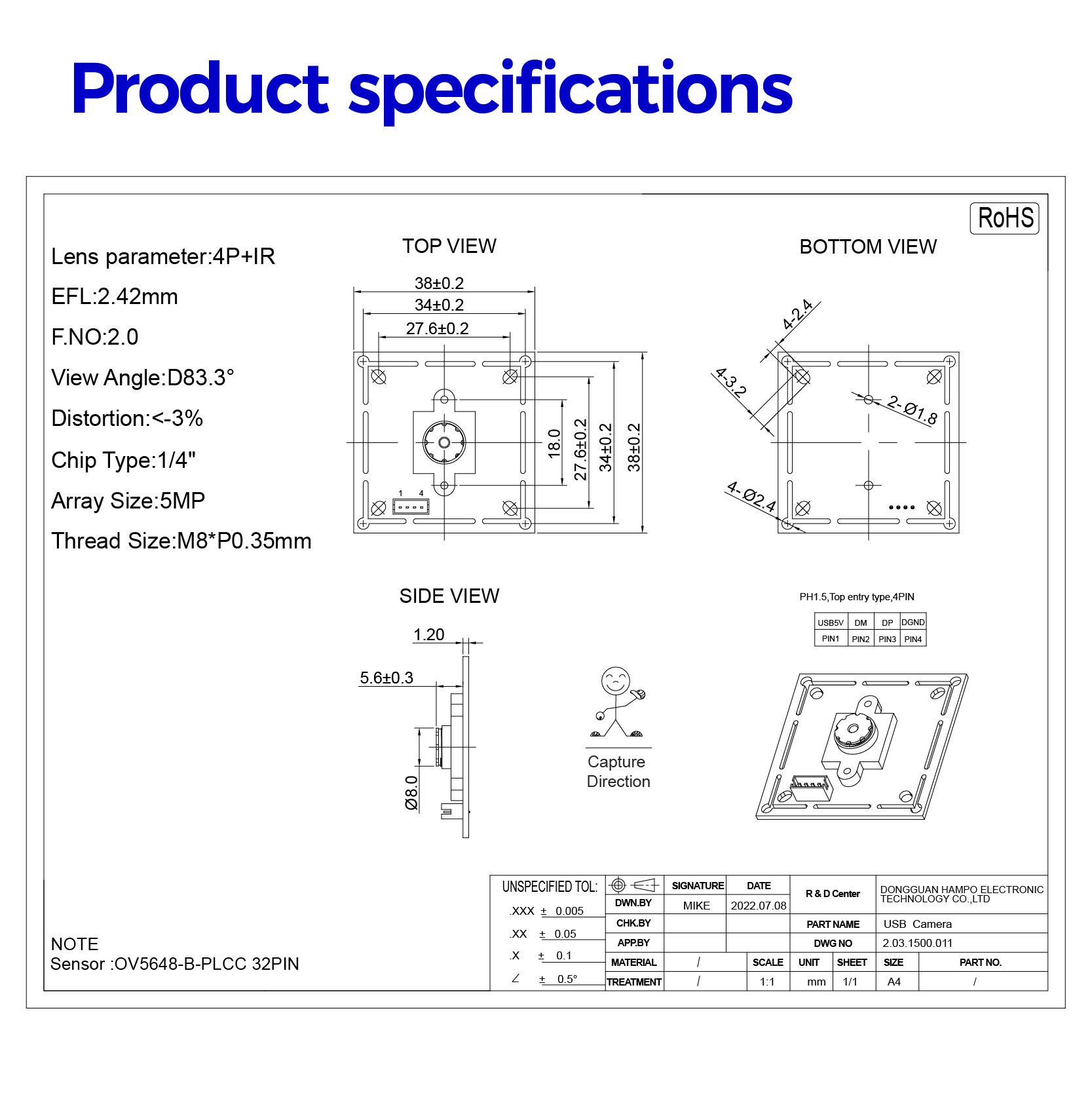

Specification

Camera
Model No.	003-1500
Max Resolution	2592*1944P
Sensor	1/4" OV5648
Frame Rate	MJPG 30fps@2592*1944
Pixel Size	1.4μm*1.4μm
Output Format	YUY2/MJPG
Dynamic Range	72DB
Lens
Focus	Fixed focus
FOV	D=83.3°
Lens Mount	M8 * P0.35mm
Power
Working Current	MAX 200mA
Voltage	AVDD2.8V/DVDD1.2V/DOVDD2.8V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
Operating Temp	0°C~+60°C
PCB Size	38mm38mm&32mm32mm
Cable Length	3.3ft (1M)
TTL	5.6MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

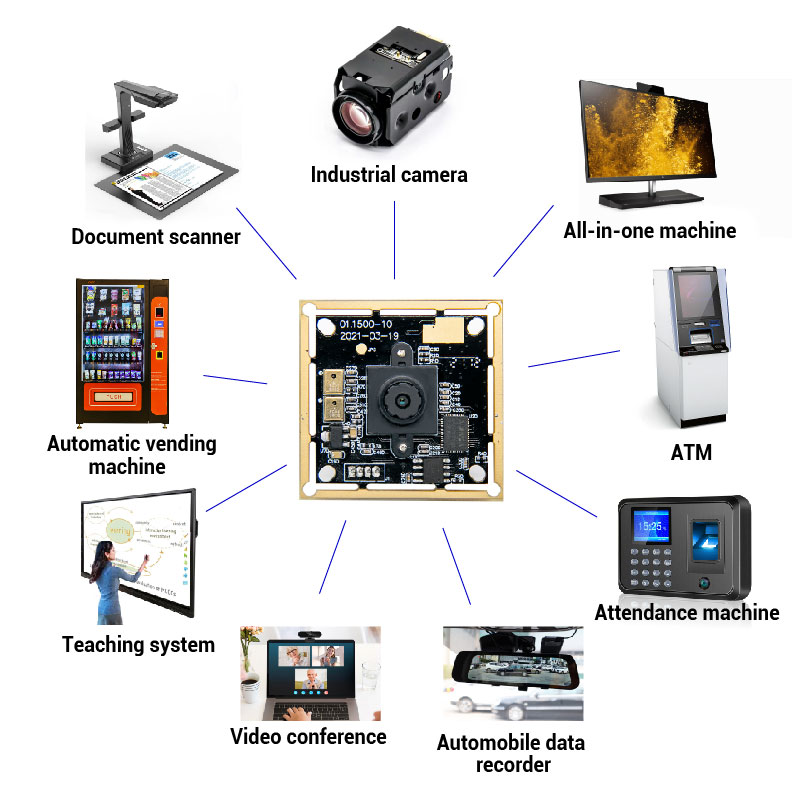

Applications

All-in-one machine
POS equipment /Credit card machine
Automatic vending machine
ATM
Face Matching
OCR components/OCR Reader
Teaching system
Security system
Automobile data recorder
Attendance machine
Industrial camera
Document Reader/Document scanner
