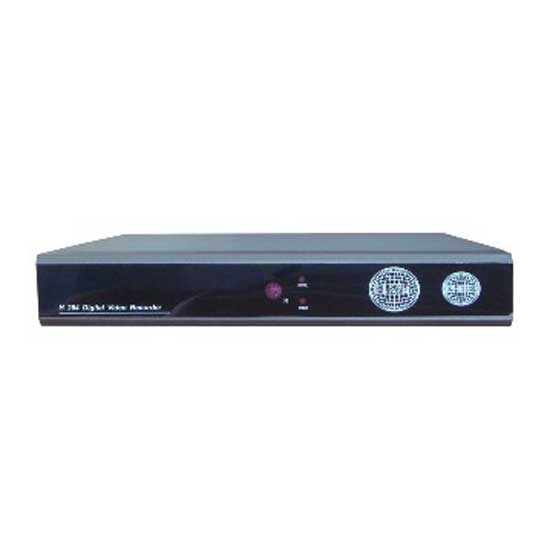

8CH DVR
Model No.:
WS-D4008A
Colour:
Black
Description
Contact Supplier
Description
The digital video recorder offers powerful performance and reliability through its embedded operating system. Users can maximize the recording time by adjusting video quality. With a maximum recording speed, the DVR is an ideal choice in both cost and performance.
- Video: 8CH BNC input, 1CH BNC output.
- Audio: 1CH input/output.
- 1CH VGA output (1,280 x 1,024).
- 4CH synchronous playback.
- Supports dual stream network transmission
- Supports electronic zoom, playback in PIP and picture round tour
- Supports multi language menu, PAL/NTSC adjustable
- Supports network, PTZ RS485, USB interface, mouse and remote control
- Supports mobile monitoring (Windows, Symbian, iPhone, Blackberry, Android).
- Supports SATA HDD up to 2T.
- Auto recovery recording after power cut.
- Lightning protection.
- Main processor high performance embedded microprocessor.
- Operation system: embedded Linux OS.
- Signal system: PAL/NTSC.
- System resource recording, playback, remote access.
- Operation interface mouse, remote control.
- Video split: 1/4/8 split display.
- Video resolution: D1.
- Video playback resolution: 1D1+7CIF.
- Video compression: H.264 CBR/VBR.
- Image control: 6 levels.
- Recording speed: PAL: 25fps/CH, NTSC: 30fps/CH.
- Motion detection: configurable detection areas (22 x 18 blocks) and sensitivity.
- Audio compression: G.711.
- Local playback: 4CH synchronous playback.
- Playback: search date, time, event, channel.
- Video storage: local HDD, network, USB.
- Backup mode: local HDD, network, USB.
- Video input: 8CH BNC.
- Video output: 1CH BNC, 1CH VGA.
- Audio input: 1CH BNC.
- Audio output: 1CH BNC.
- Ethernet interface: RJ45 10M/100M Base-TX.
- PTZ interface: 1 x RS485.
- USB interface: 2 x USB2.0.
- HDD/SATA interface: 1 x SATA.
- Power supply: DC12V±10%.
- Power consumption: < 20W (HDD not included).
- Working temperature: -10℃-55℃.
- Working humidity: 10%-90%.
- Atmosphere pressure: 86kpa-106kpa.
