8MP IMX179 High Definition USB3.0 Camera Module
US $38.00 - US $45.00
Production Lead Time:
7 day(s)
Shipping Method:
FOB SZ
Model No.:
003-1061
Size:
38mm*38mm
Sensor:
IMX179
FOV:
D=80°
TTL:
21.51MM
Resolution:
3264*2448
Description
Contact Supplier
Description
Product Description

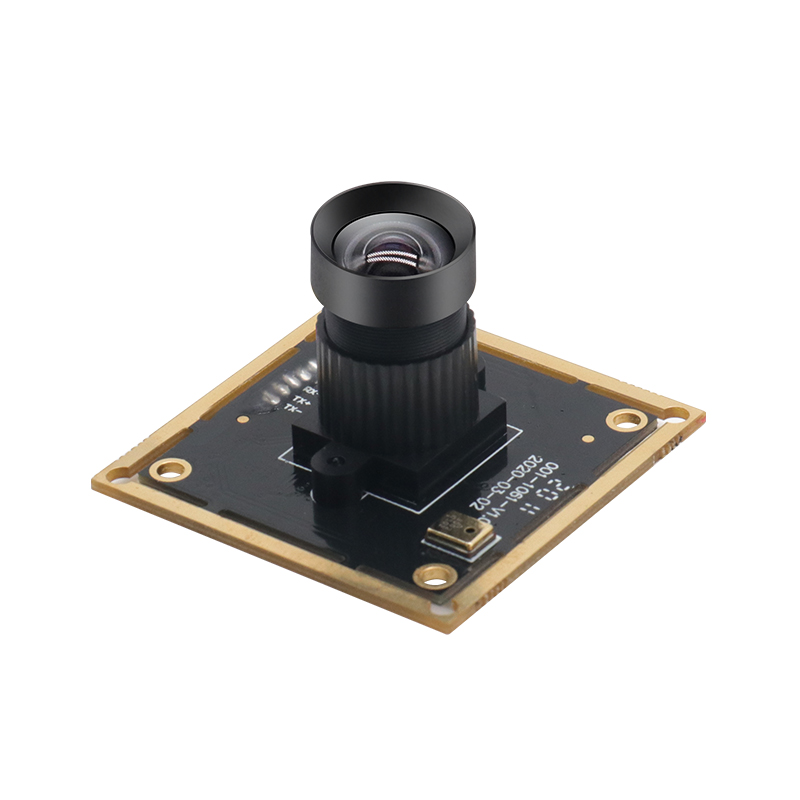

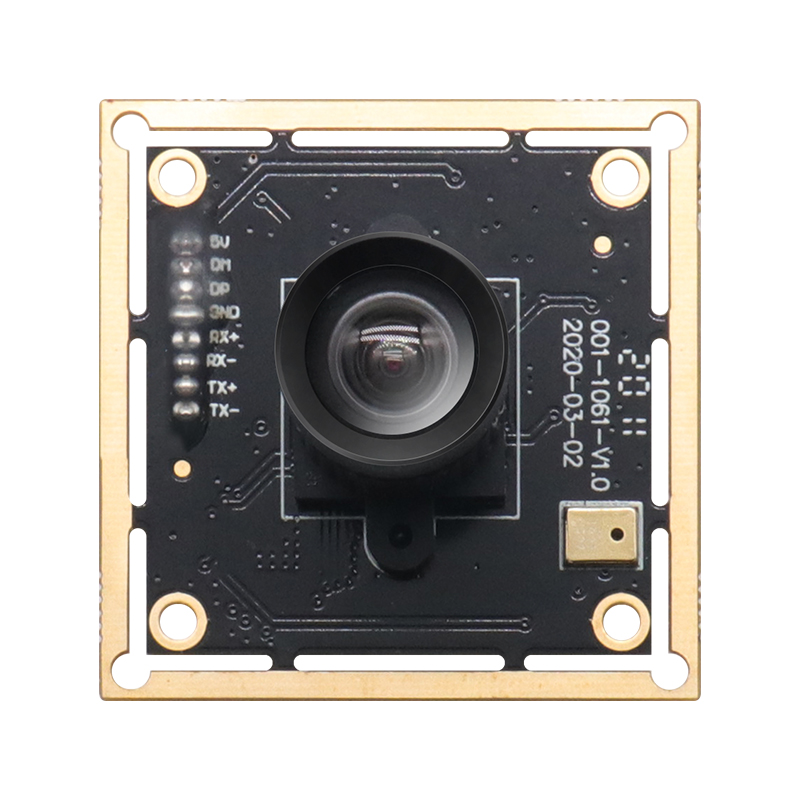

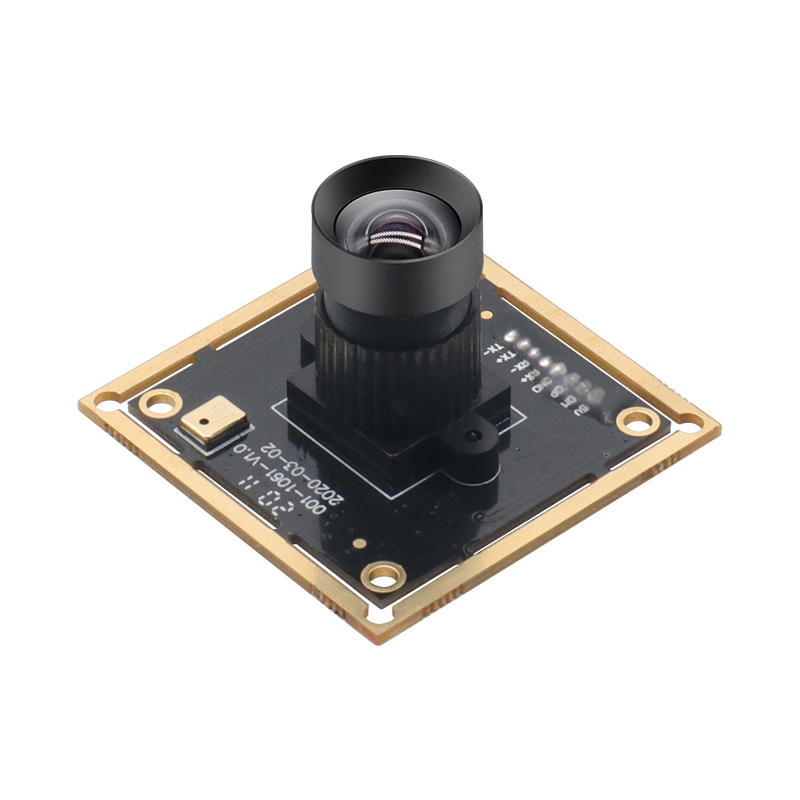

Hampo 003-1061 is a 8megapixel high resolution FF fixed focus mini USB3.0 camera module, which is on the basic of 1/3.2" advanced Sony IMX179 CMOS sensor, the image quality is very high and stable. The USB connection port in the camera module supports USB 3.0 high-speed data transmission and OTG protocol (UVC). It is also backward compatible with USB 2.0, although in USB 2.0, this camera supports fewer resolutions at lower frame rates.The 8MP USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression The camera module with mini PCB board at 38mm*38mm,compatible with 32mm*32mm, can be installed in most hidden and narrow position such as document scanner, LED large screen displayer, advertisement machine, all-in-one machine, laptop,intelligent electronic blackboard and other educational products application. Compatible with Windows 7, 8/10/11, Linux operating system.
Key Features

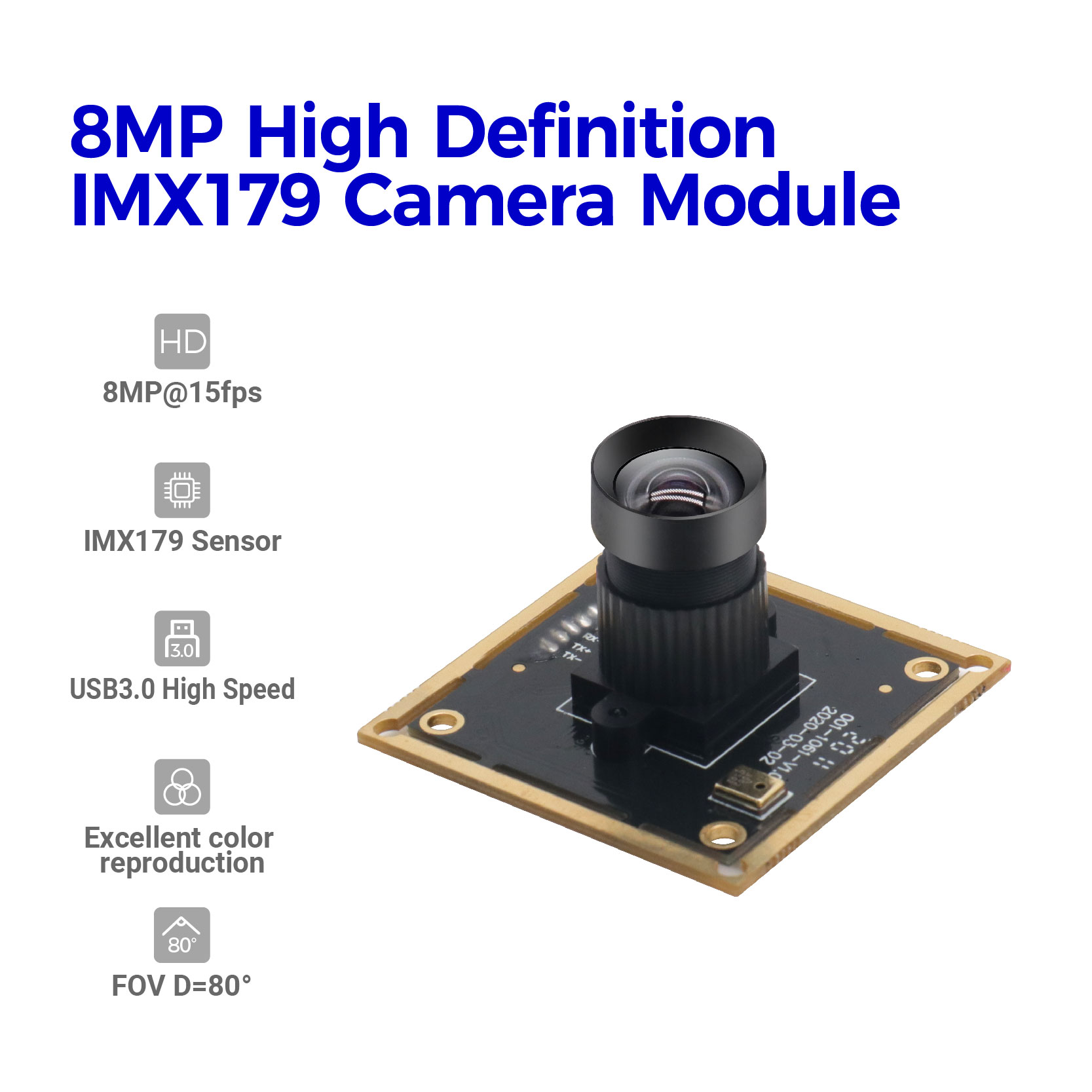

More than HD: This camera adopts 8MP IMX179 sensor for sharp image and accurate color reproduction.
High Quality of Image/Video: The camera with high definition 3264*2448P and lower color reproduction deviation produce sharp image and accurate information.
High Speed USB 3.0: USB connecting port in this camera support high speed USB 3.0 data transmission.Faster and better experience than regular USB 2.0. Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This camera module are widely used for document scanner, LED large screen display, advertisement machine, all-in-one machine, laptop camera, POS equipment, ATM, or other machine vision application.
Applications
All-in-one machine
POS equipment
Credit card machine
ATM
