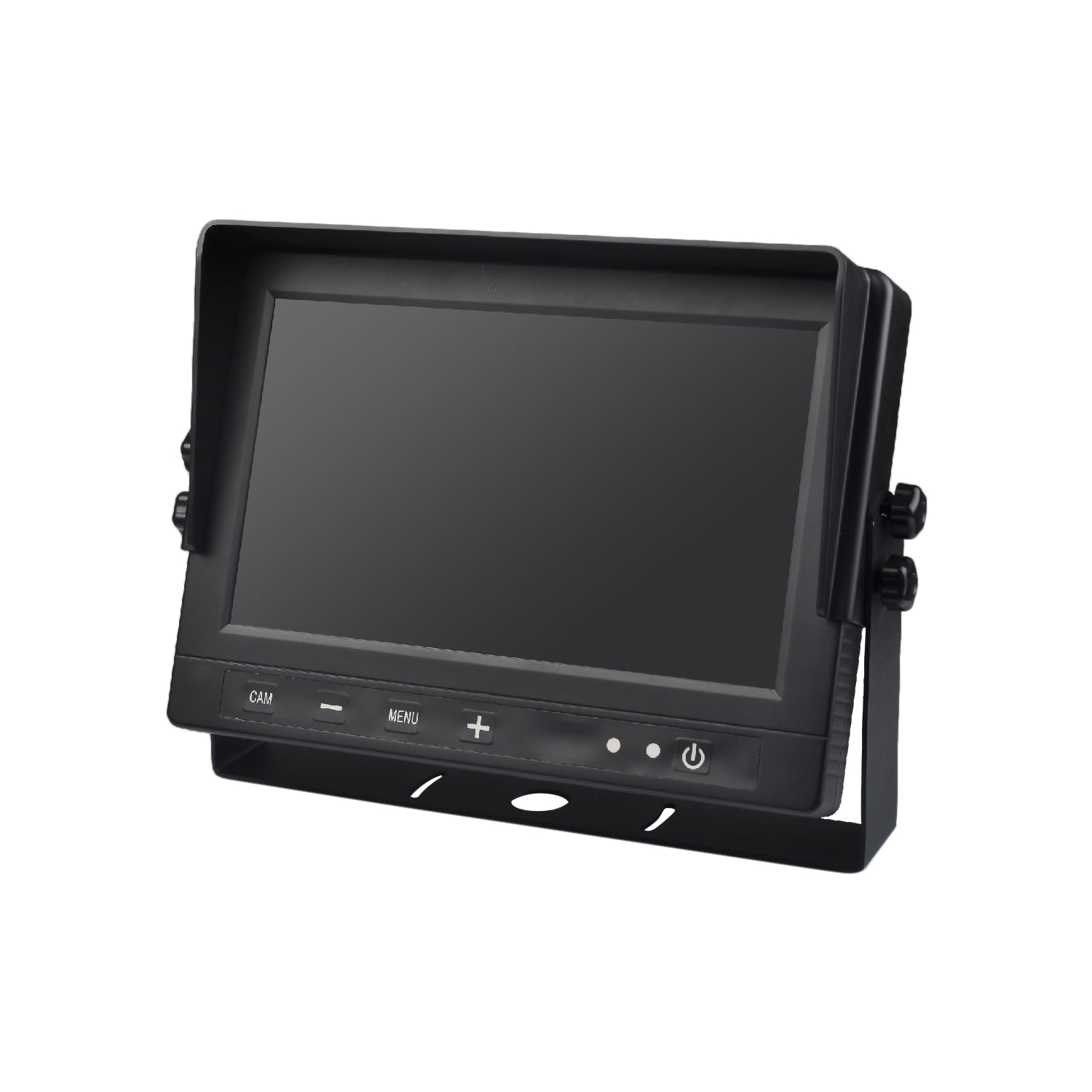

AHD Digital Quad Monitor

Production Lead Time:

45 day(s)

Model No.:

VT-M9111

Brand:

VIDEOTEK

Colour:

Black

Size:

7"/10"

Customised:

Yes

Description

Contact Supplier

Single view/ split view/three view/ quad image view selectable totally 8 different view modes.each camera can be full displayed when it is triggered
Blue backlight keypad will help drivers to see and operate accurately at night or low light situation OSD MENU separately set each camera trigger priority;
OSD MENU separately set each camera reversing image delay time 0-30s OSD MENU separately set each camera image can be rotated to mirror or normal 1 cable solution system make it easy for users to install and use the device in any places 4 color trigger wires (reversing, turn left, turn right, front) are used for automatically showing image full screen when it is activated
Color system:NTSC or PAL(AUTO)
Display resolution:2400(H) x 480(V)dot Support four camera inputs:1.0Vp-p75Ω
Wide view angle(CR:10):(up/down):45/65(left or right):65/65
Brightness(cd/m2):400(automatically adjust according to ambient light)
Contrast ratio:500:1
Operating temperature:-20degree -- +70degree Storage temperature:-30degree -- +80degree
Load dump:DC14 + 87V(Td400ms) 5 pulses
Free operating voltage:DC11-32V(system power max.20W)
