ART – Alloy Replacement Technology - uses a universal, re-usable organic block-piece and a UV-curable adhesive, helping to protect both environment and staff.

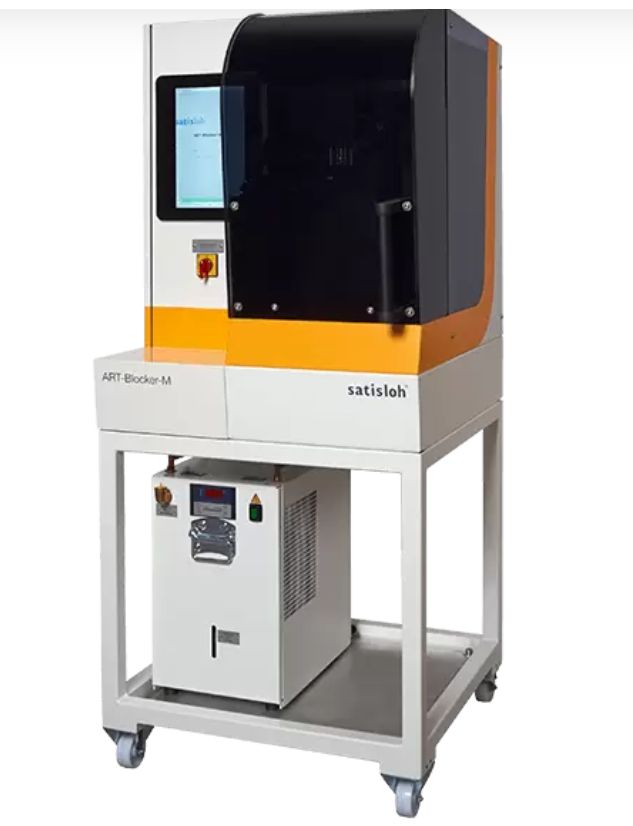

A scanner interface enters job data automatically, enabling the operator to be more flexible and save time. ART-Blocker-M features a prism tool that helps set the lens in the correct position and makes the lens easy to insert or load, avoiding malfunction due to wrong setting. It is not only easy to operate, but also easy to maintain.

Technical information

Lens materials

all standard organic materials

Working range

blank diameter: 65 – 85 mm
blank thickness: up to 30 mm
plano up to +15 dpt base curve / prism up to 5°
progressives, multi-focals, single vision lenses

Energy requirements

1, KVA, 220 – 240 V,  50-60 Hz

Dimensions (wxdxh)

701 x 711 x 1696 mm / 28 x 28 x 67 inches

Weight

210 kg / 463 lb
