This is an access control system that comes with a user-friendly interface for ease of operation. It is well engineered to deliver reliable and high-precision performance. This access control system is easy to install and maintain.

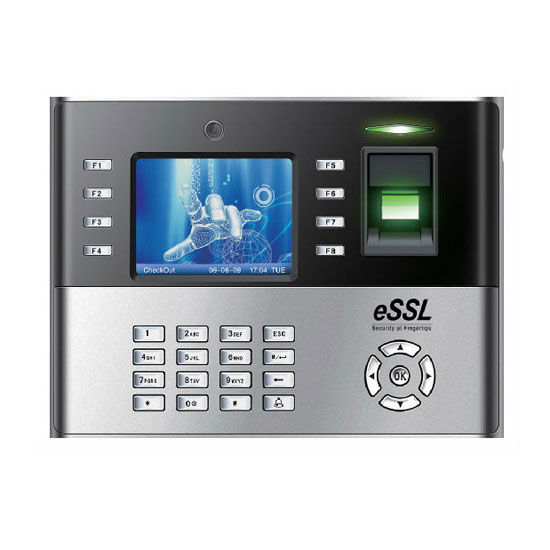

• iClock990 time attendance and access control terminal features 10.0 fingerprint algorithm for fast and accurate fingerprint identification.
• It can manage 10,000 templates within 1 second (I: N identification).
• iClock990 features high performance, high image quality optical fingerprint sensor.
• The patented optical sensor is resistant to scratches, impact, vibration and electrostatic shock.
• The iClock990 can be used in multi factor authentication that supports fingerprint, password, proximity and MIFARE card.
• It comes with standard TCP/IP, RS-232/485, USB-host, USB-client and optional Wi-Fi and GPRS connectivity and battery backup.
• Users: 10,000/50,000 (optional) fingerprints.
• Card capacity: 10,000.
• Transactions: 2,00,000 logs.
• Sensor: 500dpi optical sensor.
• CPU: 32 bit microprocessor (800MHz).
• Display: 3.5” TFT.
• Identification speed: =1 sec.
• FAR: = 0.0001%.
• FRR: =1%.
• Communication: RS232, RS485, TCP/IP.
• USB-host and client 2.0 port.
• Function keys: 8.
• Power: 12V DC, 400mA.
• Operating temperature: 0- 45℃.
• Operating humidity: 20% - 80%.
• Wiegand I/O: 26 bit.
• Access control interface: supports exit reader: KR 500, KR503, 101HE and F12 50 time zones, 5 groups, 10 time combinations.
