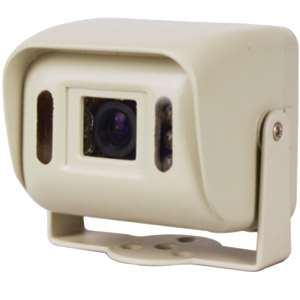

CCTV Camera, 1/4 inch Sharp color CCD, Security Camera with Night Vision, IR Camera, Surveillance
Model No.:
DF-111C
Brand:
Veise
Description
Contact Supplier
Description
- Image pick-up device: 1/4 inch Sharp color CCD.
- Horizontal resolution: 420 TV lines.
- Number of pixels: NTSC: 510 (H) x 492 (V); PAL: 500 (H) x 582 (V).
- Scanning system: NTSC: 525 lines, 60 field/sec,
- PAL: 625 lines 50 field/sec.
- Sync system: internal synchronization.
- Gamma characteristic: 0.45.
- S/N ratio: ≥48dB (AGC off).
- Electronic shutter time: on: NTSC 1/60~1/100,000sec, PAL 1/50~1/100,000sec; off: NTSC 1/60sec, PAL 1/50sec.
- Usable illumination: 1lux (F: 2.0).
- Lens: board lens 3.6mm/F2.0 (optional).
- Video output: 1.0Vp-p 75ohm.
- Gain control (AGC): auto.
- Cable: BNC jack.
- Operation temperature: -10℃～+50℃ RH95% max.
- Storage temperature: -20℃～+60℃ RH95% max.
- Power supply: DC 12V ± 10% 400mA.
- Dimension: 62 (W) x 46 (D) x 58 (H)mm.
