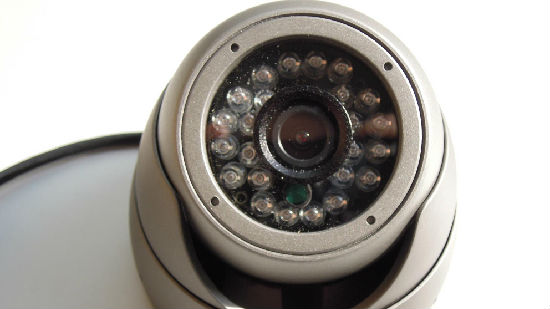

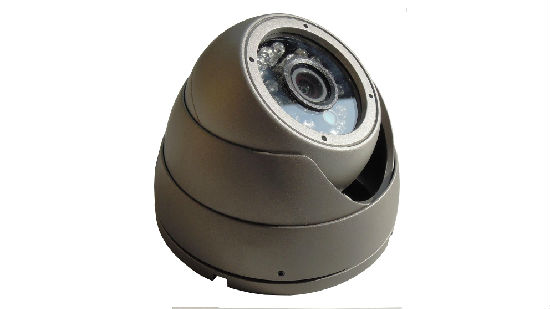

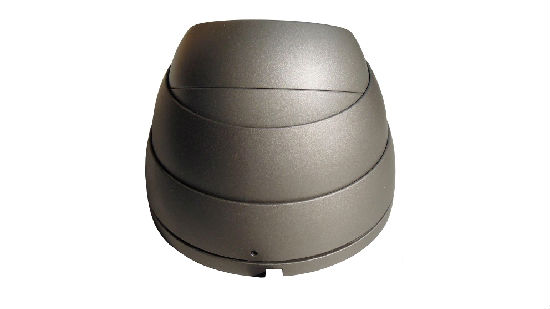

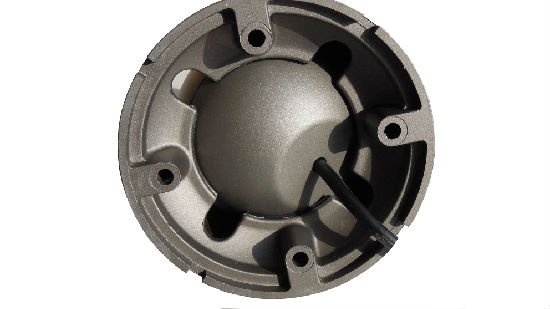

CCTV Camera

Production Lead Time:

7 day(s)

Model No.:

AP-14SG

Brand:

SUNIVISION

Colour:

White, Black, Grey

Port:

Guangzhou

Type of Payment:

T/T, PayPal, Western Union, L/C

Minimum Order Quantity:

Description

Contact Supplier

Feature:

Economic CMOS 420TVL.
High sensitivity in the dark environment, 0.01 lux/F2.0, 0 lux (IR on).
Smart light control to avoid over-exposure.
Day and night features for 24-hour surveillance.
IR distance: up to 15 meters with 24 IR LEDs.
IP66, suitable for indoor and outdoor use.
Image device: 1/4" CMOS.
TV format: PAL/NTSC.
Number of pixel NTSC: 510 x 592/PAL: 628 x 582.
Resolution: 420 TV lines.
Sync. system: Internal.
IR LED: 24 units IR LEDs.
IR effective range: up to 15 meters.
Minimum illumination: 0 lux (IR on).
LEN: f3.6mm/6mm (F2.0).
IP rating: IP66.
AGC: auto.
S/N ratio: ≥48dB.
Smart light control: yes.
Gain control: auto.
White balance: auto (2500K-9500K).
Electronic shutter auto E shutter: 1/60 (1/50)~1/100000 Sec (PAL), 1/60-1/120,000 Sec (NTSC).
Back light compensation: auto.
Video output: 1.0Vp-p composite 75ohm.
Power consumption: 300mA.
Power supply: DC 12V.
Operation temp.: -10℃-50℃.
