CD Player DC Motor
Production Lead Time:
30 day(s)
Model No.:
SFF050
Colour:
Silver
Size:
L: 15.5mm x W: 12.0mm x H: 28.3mm
Port:
Hong Kong
Type of Payment:
T/T, L/C
Minimum Order Quantity:
2000
Description
Contact Supplier
Description

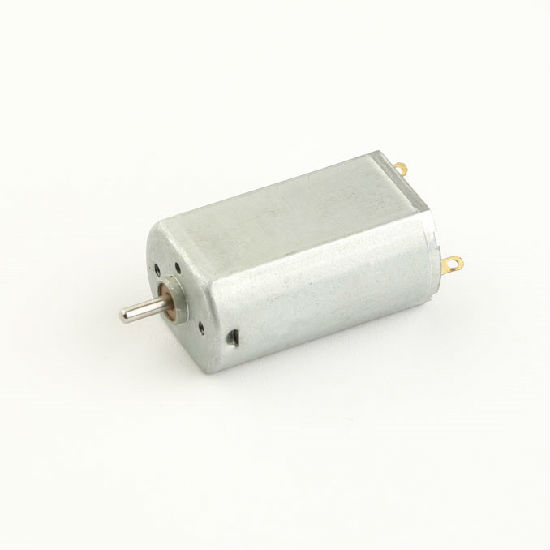

Featured here is a DC motor with a lightweight and compact design. It is manufactured under strict quality supervision. This DC motor delivery exceptional performance with high stability.
- Nominal voltage: 4.5V.
- Operating voltage range: 1.0-4.5V.
- Speed: 7,100rpm (no load), 5,600rpm (maximum efficiency).
- Current: 0.05A (no load), 0.18A (maximum efficiency).
- Torque: 0.100oz-in, 7.4g-cm.
- Output wattage: 0.43W.
- EFF: 51.1%.
- Stall torque: 0.49oz-in, 35.5g-cm.
- Weight: 17.5g.
- Typical Application: CD/DVD Player.
