DALI-2 DT6 Driver Module
US $3.00 - US $3.50
Production Lead Time:
15 day(s)
Shipping Method:
Buyer specified.
Brand:
RICOVO
Model No.:
RK-DALI2-V3
Description
Contact Supplier
Description

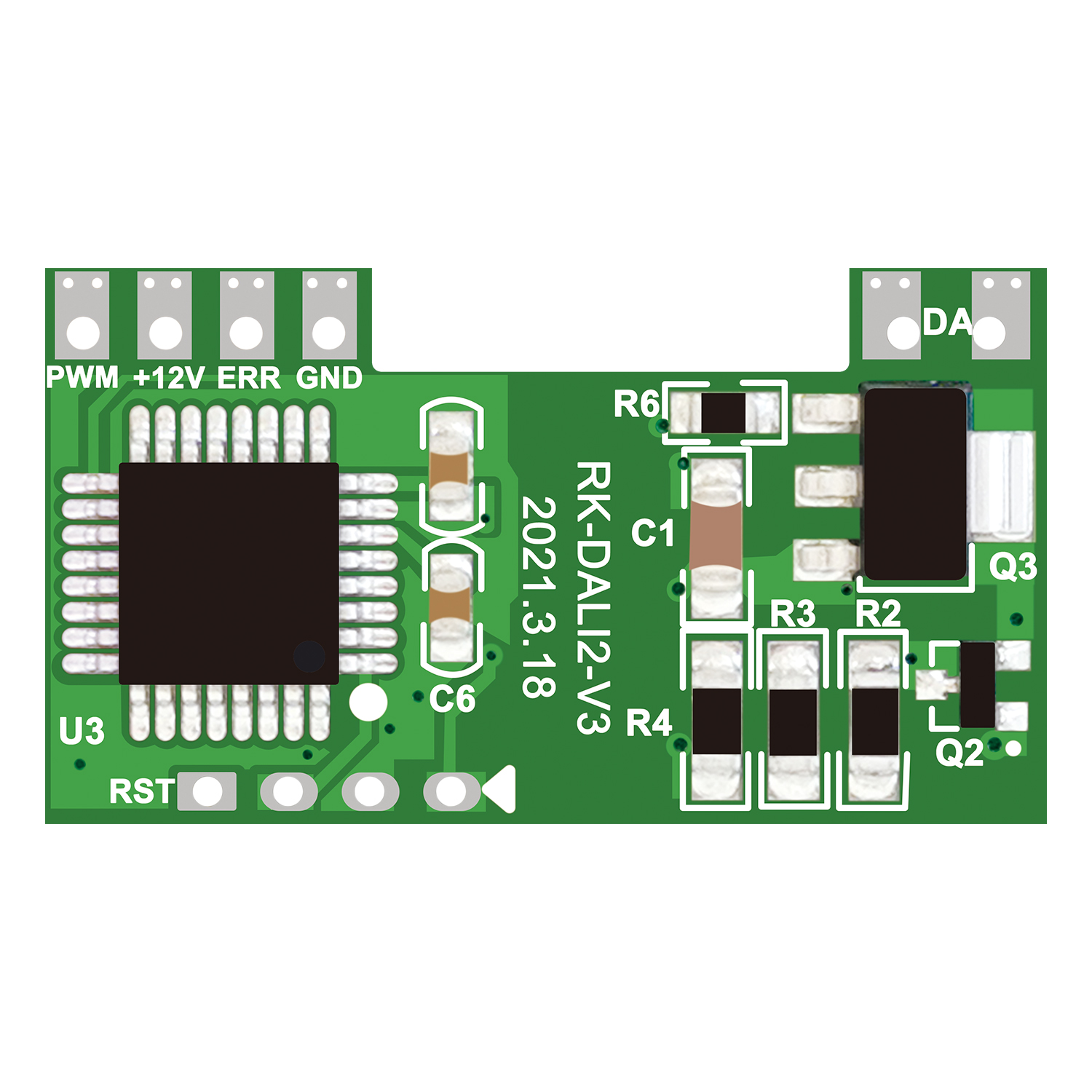

Model: RK-DALI2-V3
Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207.
Supported Functions: DALI-2 dimming, PushDim（be compatible with Tridonic).
Power Supply: DC7V~15V, higher than 20mA.
DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V high voltage.
Output PWM: 1 channel PWM, 4kHz，dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).
Working Temperature: -40~85 °C.
Board Size: 31.5X17.5X6mm.
Installation Method: Gold finger/Pin header.
DALI Certification: Compliant with DALI-2 certification standards, and we can assist customers in completing DALI-2 certifications.
