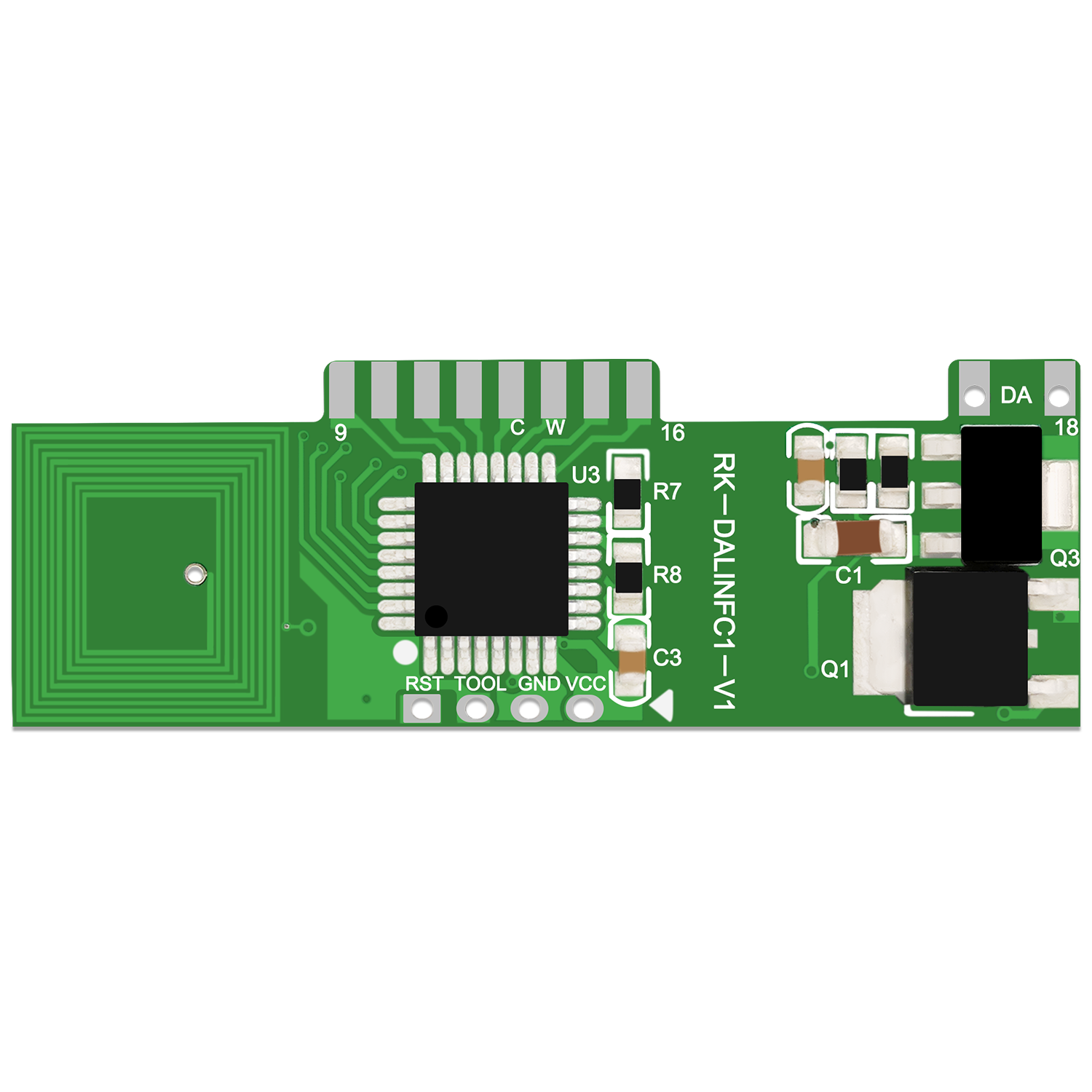

Model: RK-DALINFC1-V1

Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207.

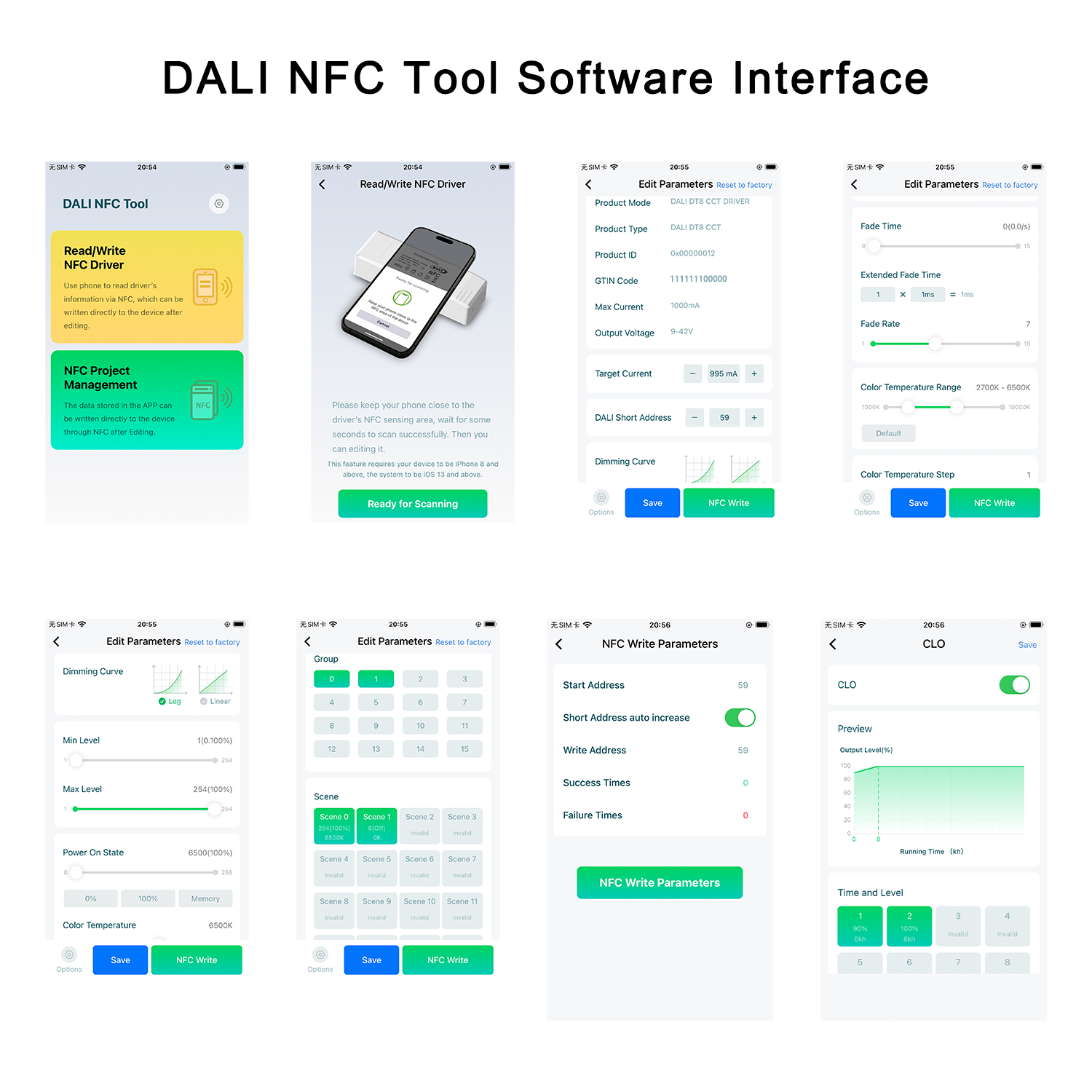

Supported Functions: DALI-2 DT6 dimming,Push DIM, it adopts the ISO15693 international standard and features NFC settings, current reading, and various configurable parameters of DALI-2.

Power Supply: DC 5V, higher than 20mA.

DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V.

Output PWM: 1 channel PWM, dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).

Working Temperature: -40~85 °C.

Board Size: 51X17.5X6mm.

Installation Method: Gold finger/Pin header.

DALI Certification: Compliant with DALI-2 and D4i certification standards, and we can assist customers in completing DALI-2 and D4i certifications.
