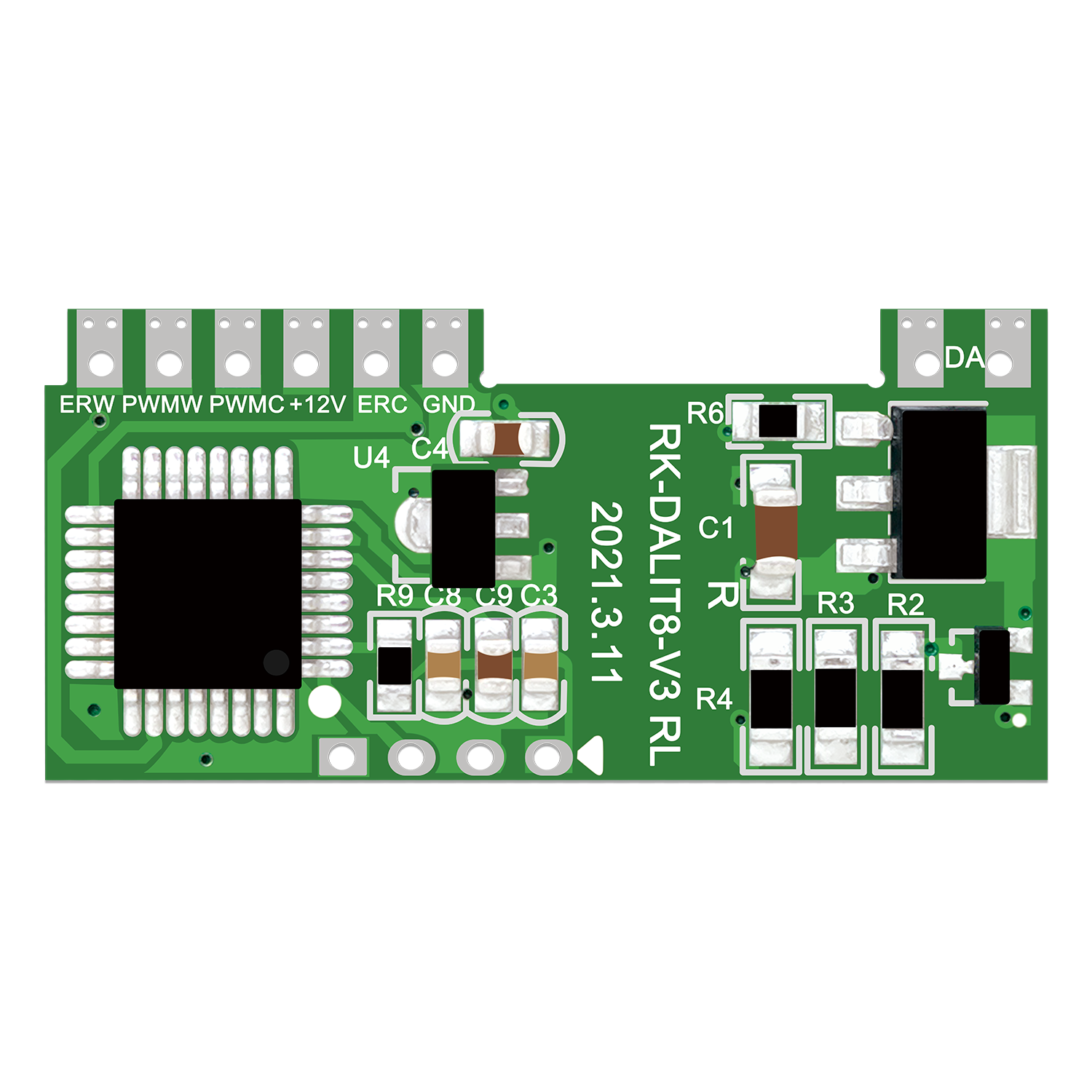

Model: RK-DALIT8-V3

Supported Protocols: IEC62386-101, IEC62386-102, IEC62386-207

Supported Functions: DALI-2 dimming, PushDim（be compatible with Tridonic), 0-10V.

Power Supply: DC7V~15V, higher than 20mA.

DALI Interface: 9.5V-22.5V, 1.9mA, Protected against accidental connection to 220V high voltage.

Output PWM: 1 channel PWM, 4kHz，dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).

Working Temperature: -40~85 °C.

Board Size: 37.5X17.5X6mm.

Installation Method: Gold finger/Pin header

DALI Certification: Compliant with DALI-2 certification standards, and we can assist customers in completing DALI-2 certifications.
