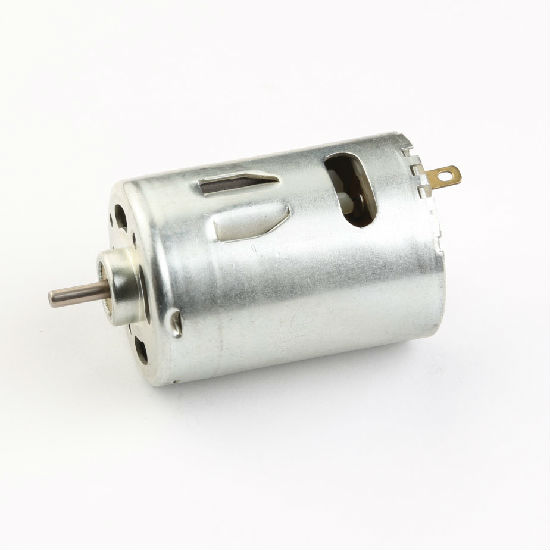

Model: SR385SPH-16140
Voltage

• Operating range: 12.0~30
• Nominal: 24.0V

No load

• Speed: 9050rpm
• Current: 0.09A

At maximum efficiency

• Speed: 7560rpm
• Current: 0.46A
• Torque: 1.260 oz-in; 90.0 g-cm

Output

• 0.6980W

EFF

• 63.9%

Stall torque

• 7.570 oz-in; 545g-cm


Model: SR385SPH-2465
Voltage

• Operating range: 6.0~24.0
• Nominal: 24.0V

No load

• Speed: 20000rpm
• Current: 0.25A

At maximum efficiency

• Speed: 17140rpm
• Current: 1.5A
• Torque: 1.596 oz-in; 144.0 g-cm

Output

• 25.37W

EFF

• 70.5%

Stall torque

• 7.850 oz-in; 565g-cm


Model: SR-385S-2073
Voltage

• Operating range: 12~26
• Nominal: 12.0V

No load

• Speed: 11000 rpm
• Current: 0.15A

At maximum efficiency

• Speed: 9100 rpm
• Current: 0.72 A
• Torque: 0.860 OZ-in; 61.7 g-cm

Output

• 5.760W

EFF

• 66.4%

Stall torque

• 5.000 OZ-in; 360 g-cm



Model: SR-385S-16115
Voltage

• Operating range: 12.0~26
• Nominal: 24.0V

No load

• Speed: 14500 rpm
• Current: 0.12A

At maximum efficiency

• Speed: 12000 rpm
• Current: 0.58A
• Torque: 1.020 OZ-in; 73.8 g-cm

Output

• 9.100W

EFF

• 65.3%

Stall torque

• 5.970 OZ-in; 430 g-cm




Weight: 62g/63g (approximately)
