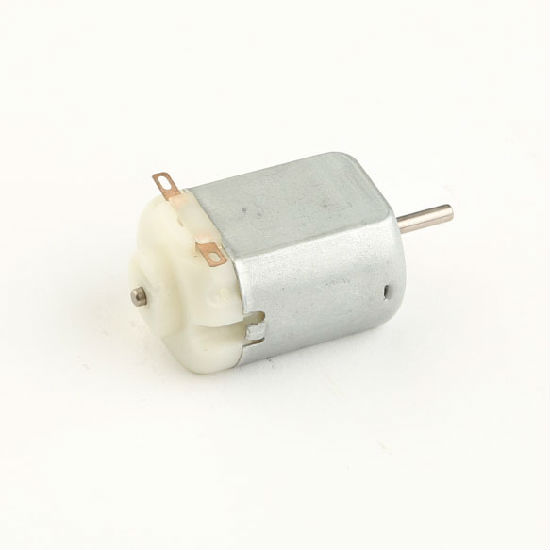

DC Motors with Different Operating Range
Model No.:
SF10
Colour:
Silver
Size:
L:20.0mm x W:15.0mm x H:25.0mm
Port:
Hong Kong
Type of Payment:
L/C, T/T, C.O.D.
Minimum Order Quantity:
2000
Description
Contact Supplier
Description
Model: SF10-2270
Payment Terms: L/C, T/T, C.O.D.
- Voltage
- Operating range: 1.5~3.0
- Nominal: 1.5V
- No load: speed 9200rpm; current 0.21A
- At maximum efficiency:
- Speed 7000rpm; current 0.66 A
- Torque: 0.084 oz-in; 6.02 g-cm
- Output: 0.43W
- EFF: 43.4%
- Stall torque: 0.361 oz-in; 26 g-cm
- Voltage
- Operating range: 1.5~3.0
- Nominal: 3.0V
- No load: speed 13200rpm; current 0.17A
- At maximum efficiency:
- Speed 10160rpm; current 0.57A
- Torque: 0.119 oz-in; 8.5 g-cm
- Output: 0.89W
- EFF: 52.1%
- Stall torque: 0.518 oz-in; 37 g-cm
- Voltage
- Operating range: 3.0~6.0
- Nominal: 4.5V
- No load: speed 8500rpm; current 0.05A
- At maximum efficiency:
- Speed 6570rpm; current 0.17A
- Torque: 0.080 oz-in; 5.7 g-cm
- Output: 0.38W
- EFF: 49.9%
- Stall torque: 0.350 oz-in; 25 g-cm
- Voltage
- Operating range: 3.0~6.0
- Nominal: 4.5V
- No load: speed 4850rpm; current 0.048A
- At maximum efficiency:
- Speed 3670rpm; current 0.15A
- Torque: 0.130 oz-in; 9.3 g-cm
- Output: 0.35W
- EFF: 50.0%
- Stall torque: 0.532 oz-in; 38 g-cm
- Voltage
- Operating range: 4.5~6.0
- Nominal: 4.5V
- No load: speed 9400rpm; current 0.13A
- At maximum efficiency:
- Speed 7180rpm; current 0.387A
- Torque: 0.138 oz-in; 9.93 g-cm
- Output: 0.731W
- EFF: 42.0%
- Stall torque: 0.583 oz-in; 42 g-cm
- Weight: 17g (approximately)
Payment Terms: L/C, T/T, C.O.D.
- Delivery Details:
- FOB Port: Hong Kong
- Lead Time:30 days
