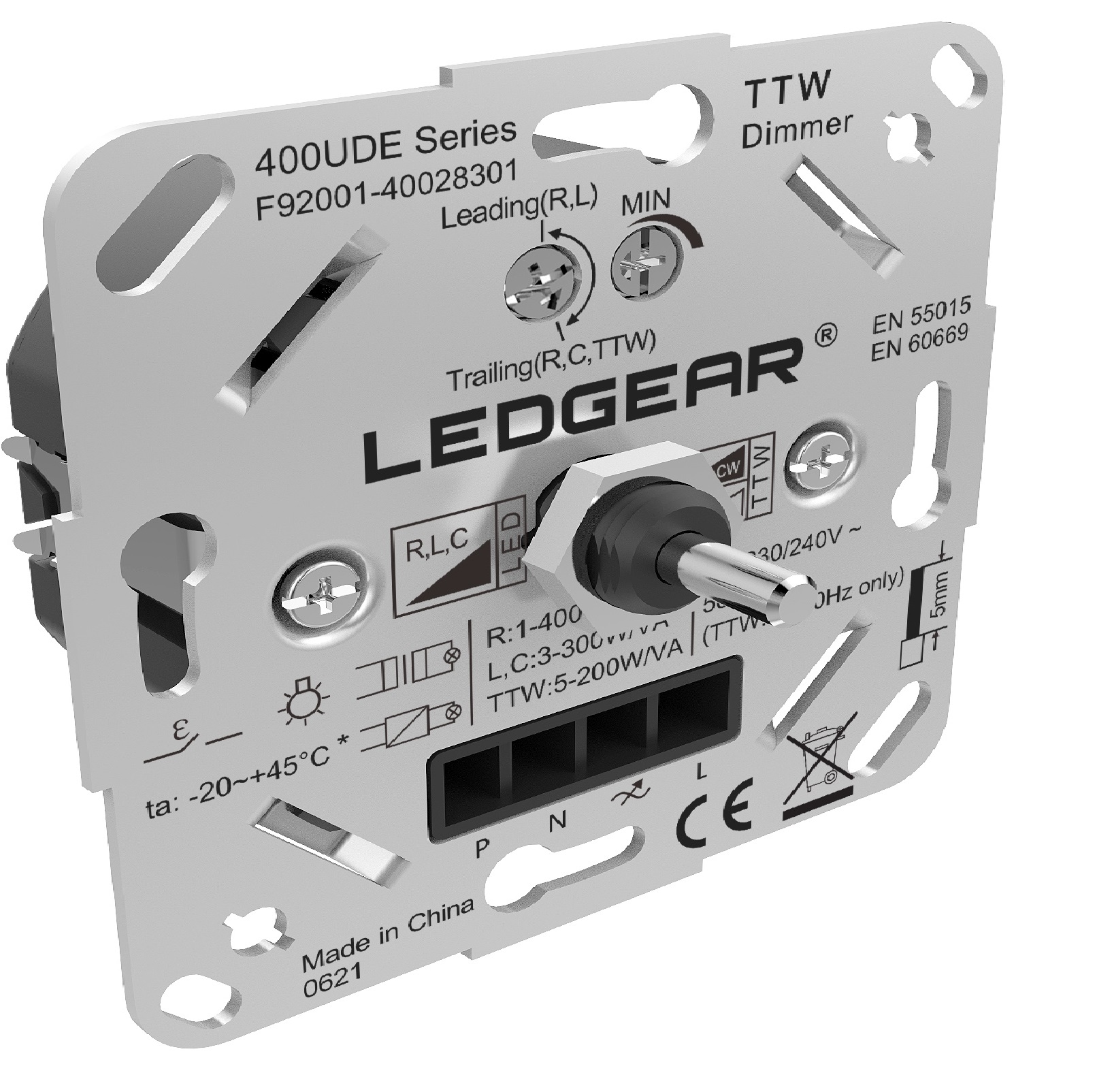

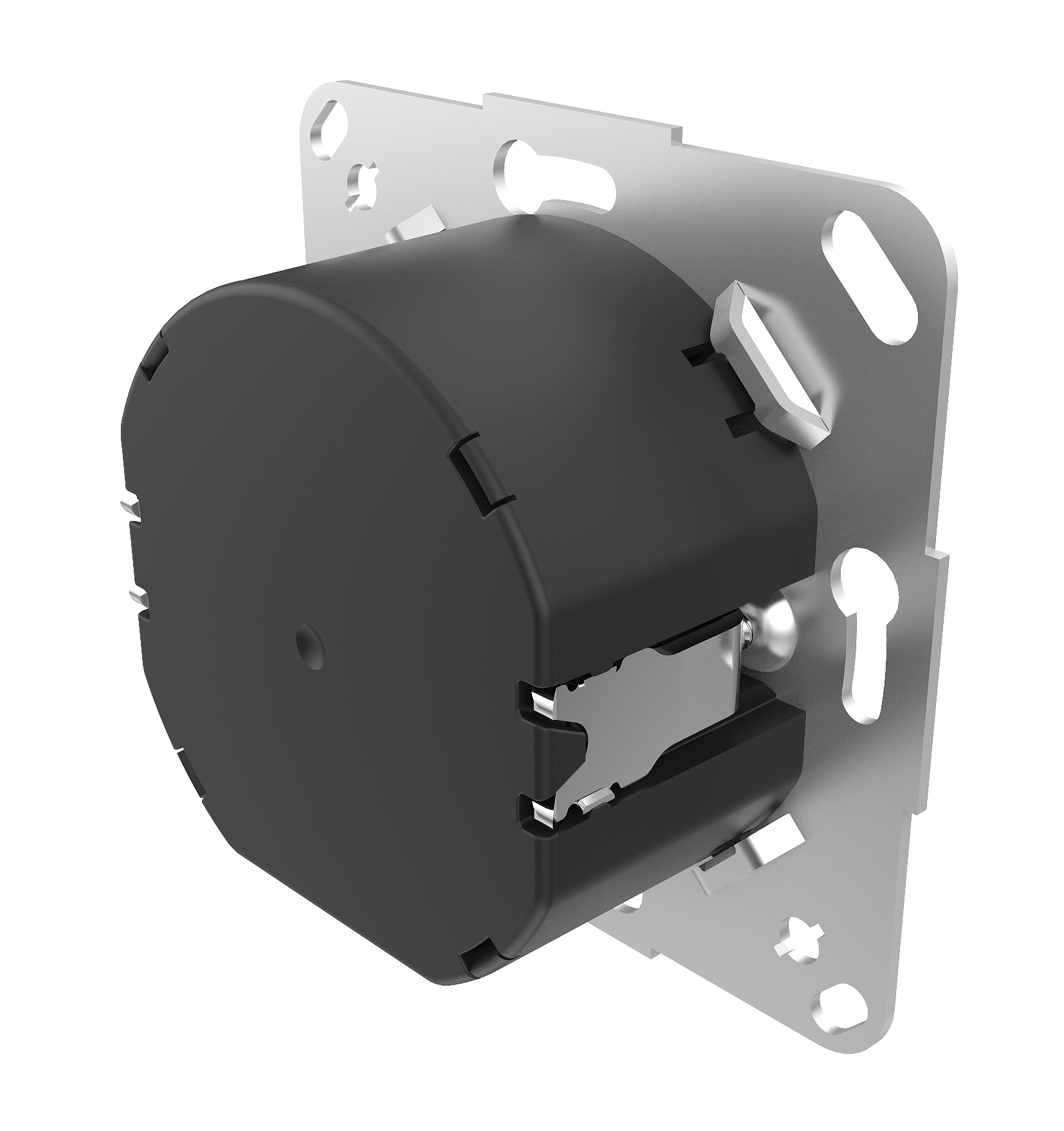

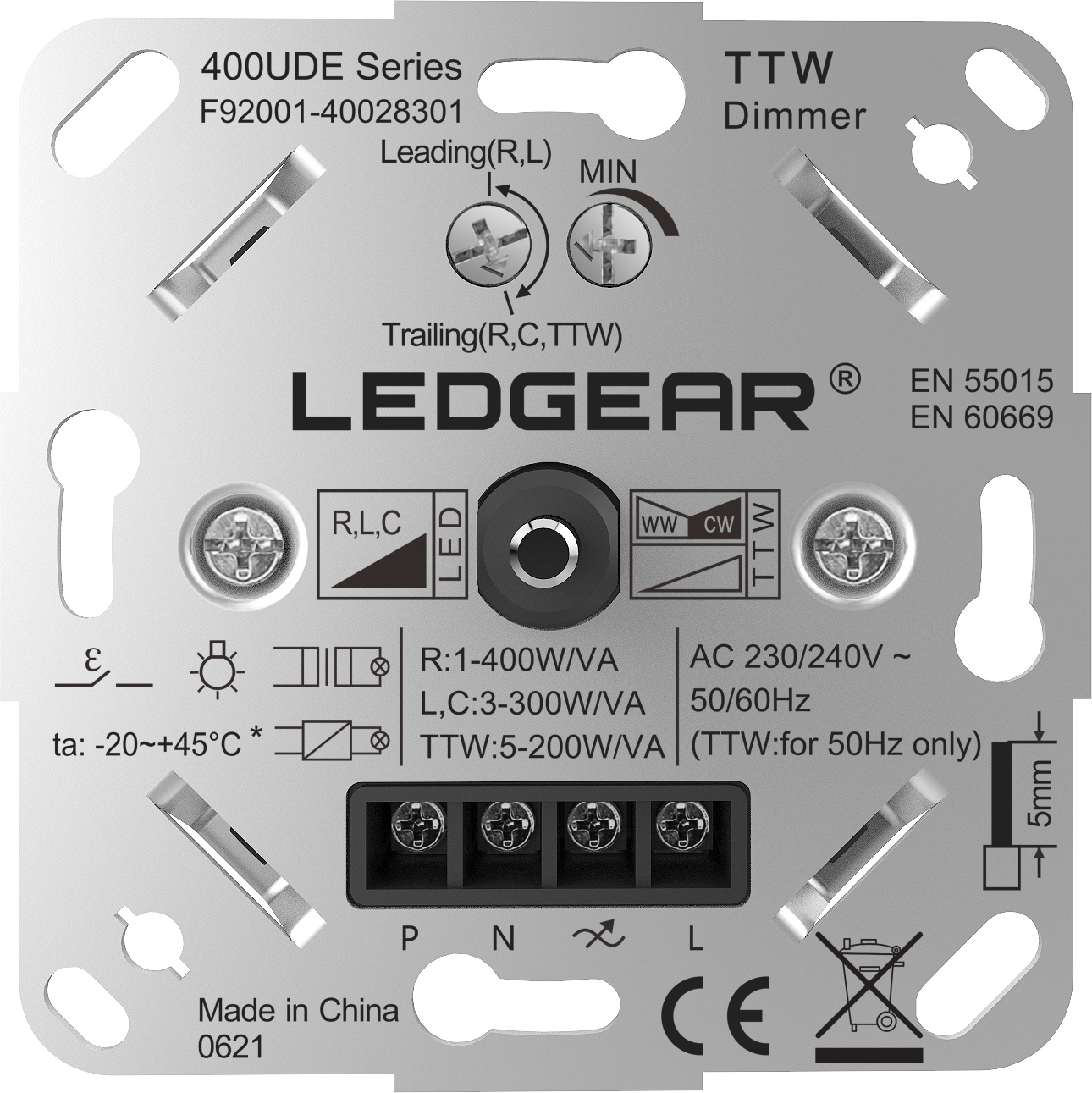

The LEDGEAR®  Digital Universal Dimmer F92001-40028301 can be used with many common, dimmable, line voltage LED lamps, high voltage halogen and incandescent lamps, electronic transformers and Kinglumi Trailing tunable white(TTW®) LED lamps.

The dimmer equipped with microcontroller and suitable for use in special applications where you need to dim off. Suitable for use in both commercial and residential lighting control in flush mounted(both screw and claws) that can control a maximum load of 400 W at 230 V.

With safety to EN60669, EN55015 and providing protection from over temperature, short-circuit and overload, this is a high quality product that will give you reliable protection and service. Its standby power consumption is 0.5 W and EU EcoDesign compliant.

The 4in1 universal dimming allowing to works with Resistive, Capacitive, Inductive and Kinglumi TTW® lamps. It helps to reduce the inventory.

•   Device works according to the leading edge, trailing edge phase control principle; also Kinglumi Trailing TW principle

•     Manual setting of the dimming principle suitable for the load

•     Allows extension push-button on dimming / switching

•     Dim to OFF with most LED light sources

•     Switch-on with last brightness or saved switch-on brightness

•     Switch-on brightness can be saved permanently

•     Suitable for both retrofit and new installations

•     Soft start*  for customization(factory preset) only

•     Permissible AC cable 0.75-2.5mm² wire gauge

•     Built--in with permanent memory

•     85°C Maximum case operation temperature(tc-point ¹)

•     Operating temperature ¹: -20°C ~ +45°C, the humidity: 20% ~ 85%

•     Five-year factory guarantee and lifetime technical support

•     Switching

•     Dimming

•     Colour temperature tuning* (only works with Kinglumi TTW^® lamps)

•     Memory

•     Leading & trailing selectable

The device provides the following protective functions:

•     Inrush current limitation through soft start

•     Electronic overload, over temperature protection

•     Electronic short-circuit protection

•     Integrated thermal fuse

•    Electronic over voltage
