Drone wireless video data telemetry transmitter-receiver UAV radio link TDD transceiver repeater P2P P2MP
US $880.00 - US $3620.00
Production Lead Time:
7 day(s)
Shipping Method:
DHL FedEx UPS
Model No.:
Vcan2122
Transmission Range:
10-150km
Extra Power Amplifier:
2W, 5W, 10W, 20W
Networking Type:
Point to Pont, Point to Multi-points
Description
Contact Supplier
Description
Long-Range Wireless Video & Data Transceiver System for UAV/UGV
Model: Vcan2122 Series Transmission Range Options: 22km / 55km / 80km / 100km / 150km Power Amplifier Options: 2W / 5W / 10W
Overview
The Vcan2122 series is a high-performance, bidirectional wireless video and data transceiver designed for long-distance transmission between UAVs, UGVs, and ground control stations. Built on robust OFDM technology, it supports secure, low-latency video streaming, telemetry, and control over distances up to 150km.
🔒 Key Features
| Feature | Description |
|---|---|
| AES128 Encryption | Ensures secure video and data transmission with strong encryption protocols. |
| Extended Range | Supports transmission distances from 15km to 150km depending on PA selection. |
| Frequency Flexibility | Switchable between 800MHz, 1.4GHz, and 2.4GHz via Web UI. |
| Dual Antenna Design | ANT1 for TX/RX, ANT2 for RX-only, improving signal diversity and stability. |
| Bandwidth Control | Selectable bandwidth: 3MHz / 5MHz / 10MHz / 20MHz. System throughput up to 30Mbps. |
| Low Latency | Real-time transmission with latency as low as 28–76ms. |
| LOS & NLOS Support | Operates reliably in both Line-of-Sight and Non-Line-of-Sight environments. |
| Video + Data + Control | Supports simultaneous video, telemetry, and control signal transmission via UART. |
| Web UI Configuration | Full system monitoring and configuration via browser-based interface. |
🔌 Interfaces & Compatibility
Video Input: Ethernet IP camera recommended. HDMI/CVBS cameras require external encoder.
Video Output: Direct to PC/NVR via Ethernet; HDMI monitor requires decoder.
Data Interfaces: RS232 (default), optional TTL, UART, SBus, RS485.
Baud Rates Supported: 1200 to 460800 bps across multiple ports.
Ethernet Ports: Dual ports for flexible integration.
⚡ Power & Performance
| PA Level | Voltage Input | TX Power | TX Consumption | RX Consumption |
|---|---|---|---|---|
| 2W | 12–16V | 33dBm | <12W | <10W |
| 5W | 24–25V | 37dBm | <22W | <16W |
| 10W | 24–30V | 40–41dBm | <39W | <16W |
Receiver Sensitivity: -103dBm @ 10MHz bandwidth
Modulation: Adaptive QPSK / 16QAM / 64QAM
Networking Modes: Point-to-Point, Point-to-Multi-point (e.g., 6 cameras to 1 receiver)
Package Includes

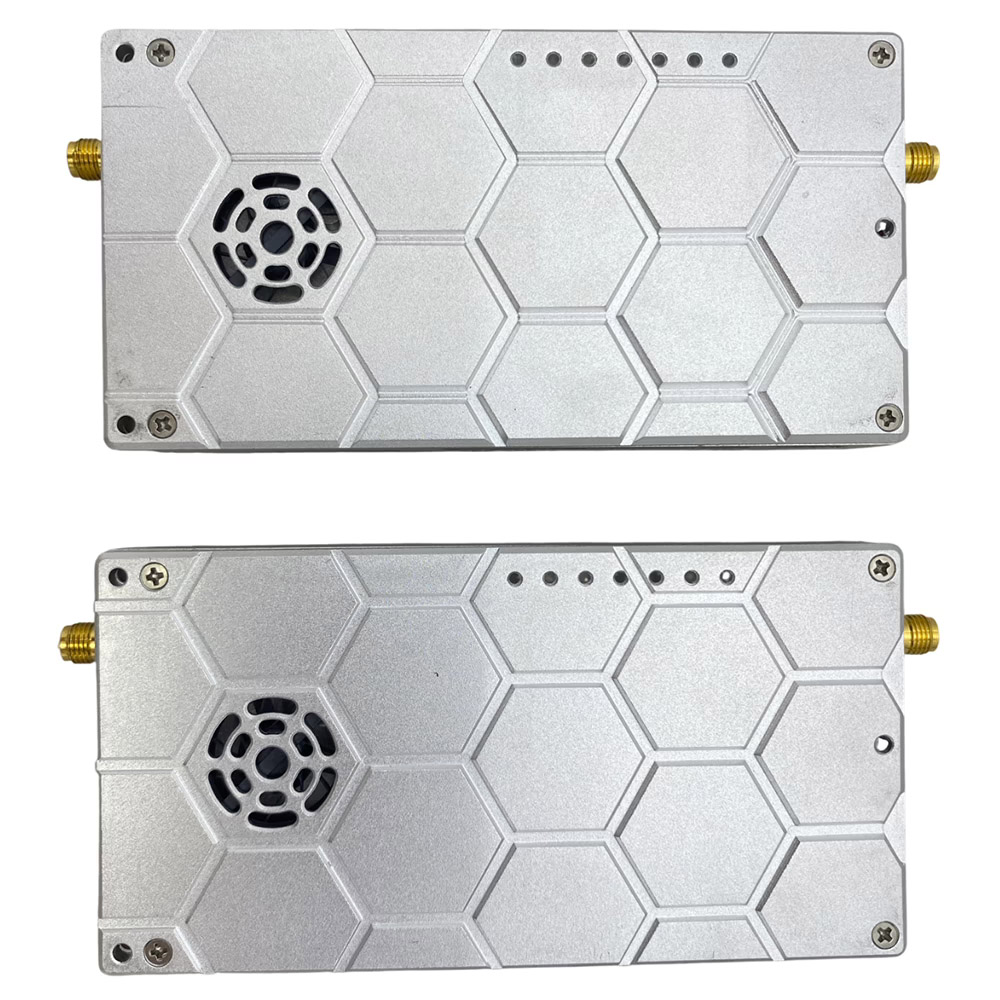

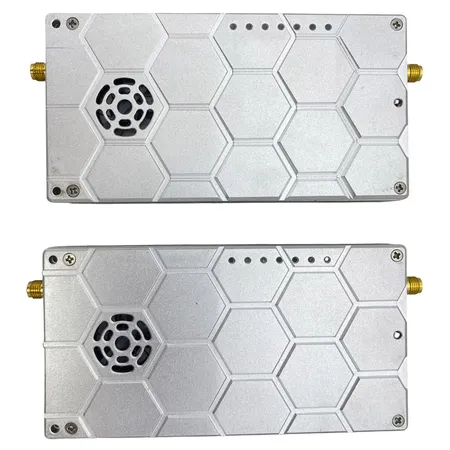

Transmitter & Receiver modules
Dual antennas (TX/RX)
Power connectors (XT30PW / XT60PW)
Data cables and accessories
Optional Add-ons
Vcan2122 Module: Supports frequency hopping (FHSS) within 1420–1530MHz range
Custom Frequency & Interface Mapping: Available for OEM/government projects
