Full Spectrum Transmittance Measuring Equipment
Production Lead Time:
30 day(s)
Model No.:
TSM
Brand:
Rainbow-Light
Size:
14 x 10.3 x 23.4 cm
Measuring Range:
380-780 nm
Description
Contact Supplier
Description
The price is for reference only, the details of price please contact us. Thank you!

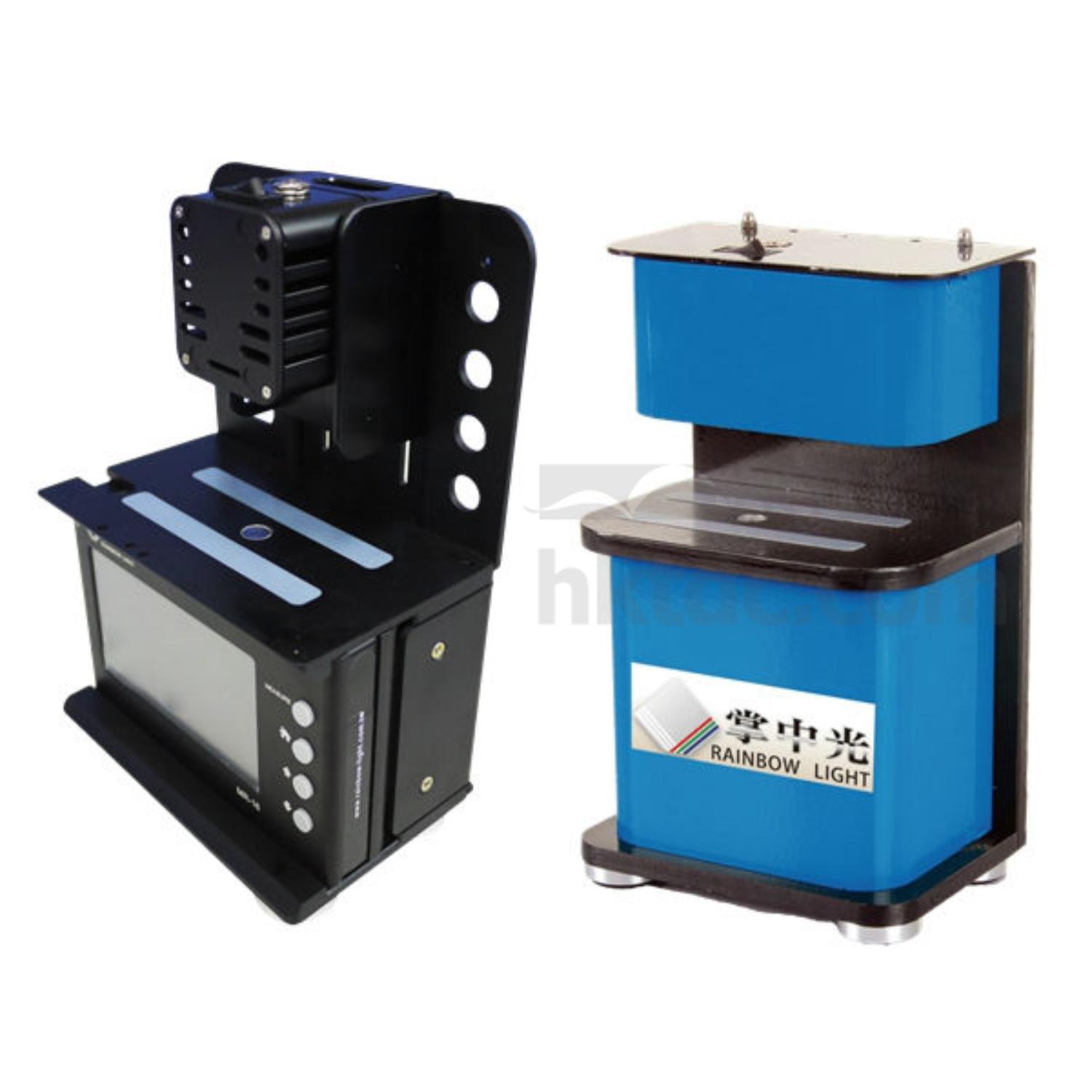

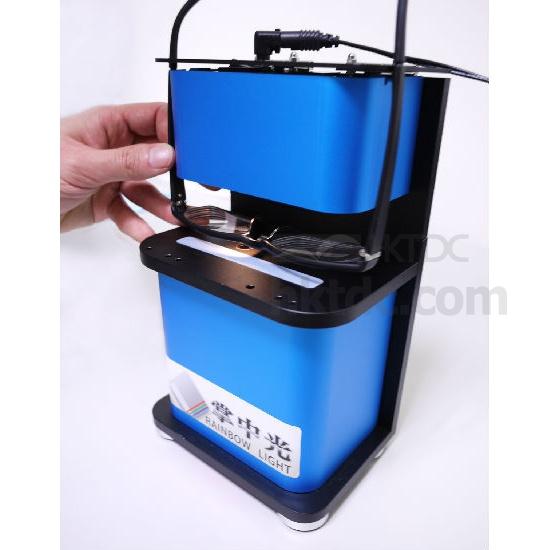

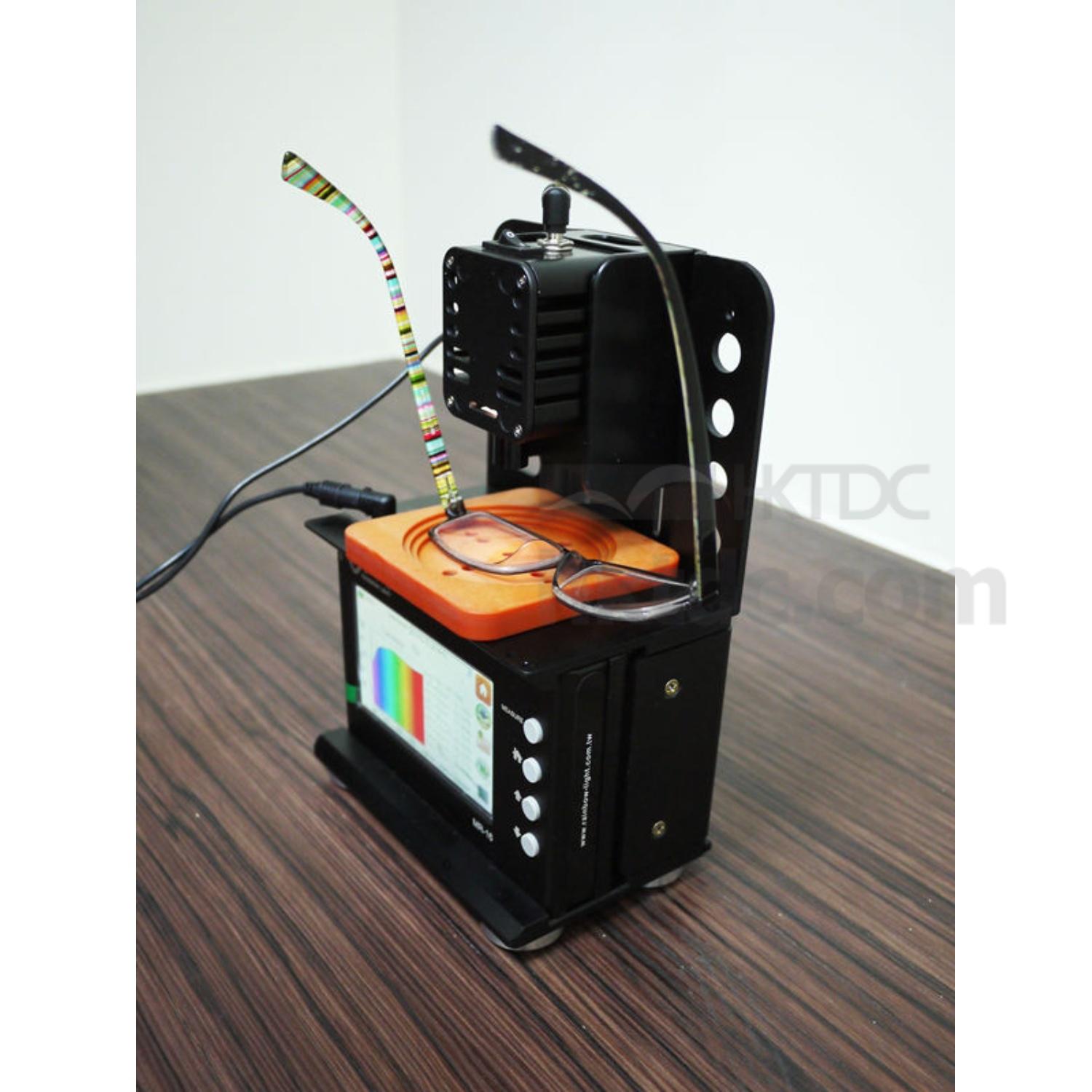

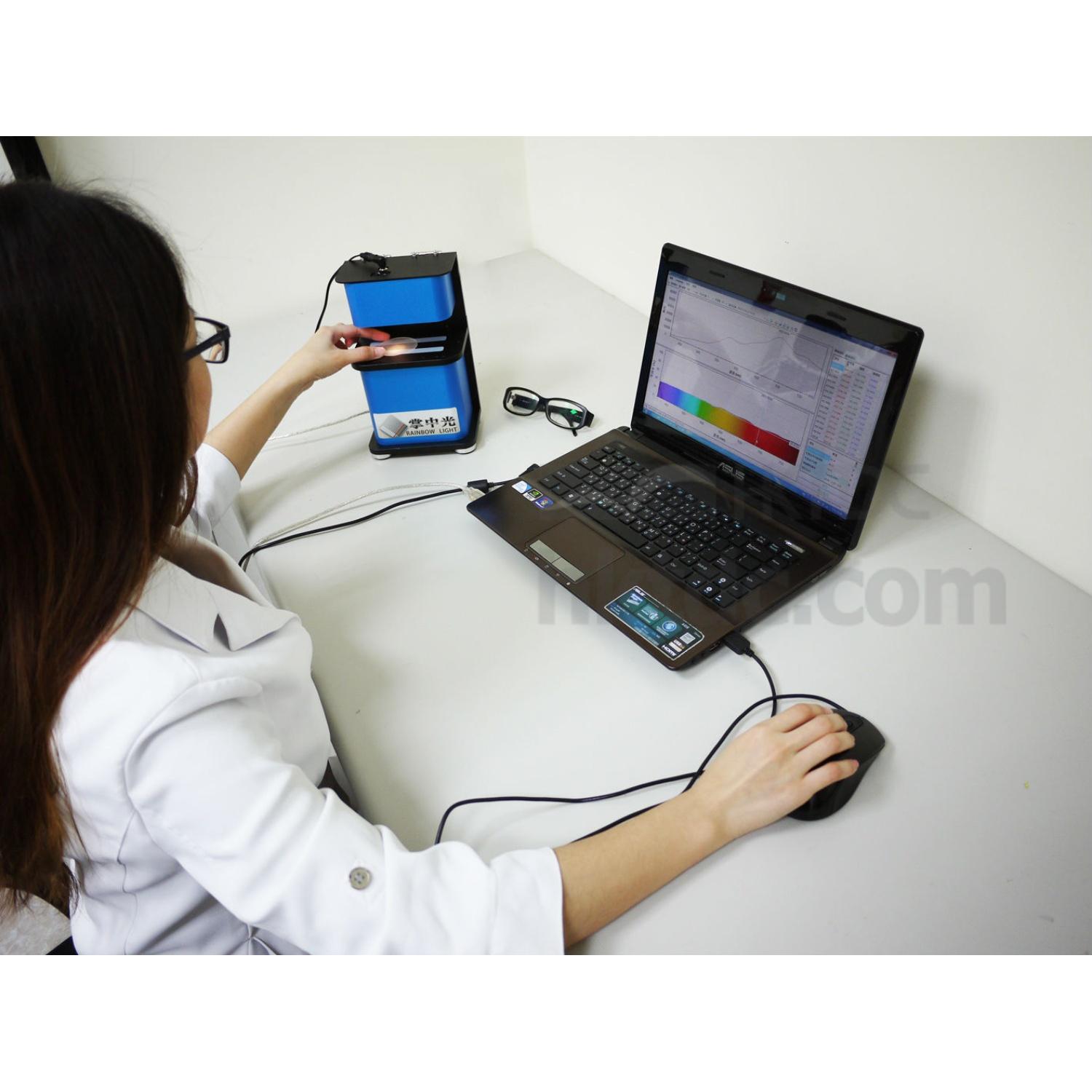

Rainbow-Light Full Spectrum Transmittance Measuring Equipment
Rainbow-Light Technology Co., Ltd. developed and research Full Spectrum Transmittance Measuring Equipment, and create our own brand (Rainbow-Light)
Full Spectrum Transmittance Measuring Equipment is using MEMS technology on micro-spectrometer. Transmittance Measurement Equipment can be applied on many fields: LED diffusion plate transmittance, lens transmittance, glass transmittance, heat-insulation paper transmittance, and every kinds of coating transmittance.
2011 Taipei International Invention Show & Technomart - Silver Medal
Features
Specification (High Level)
Specification (Touch Panel)
Rainbow-Light Full Spectrum Transmittance Measuring Equipment
Rainbow-Light Technology Co., Ltd. developed and research Full Spectrum Transmittance Measuring Equipment, and create our own brand (Rainbow-Light)
Full Spectrum Transmittance Measuring Equipment is using MEMS technology on micro-spectrometer. Transmittance Measurement Equipment can be applied on many fields: LED diffusion plate transmittance, lens transmittance, glass transmittance, heat-insulation paper transmittance, and every kinds of coating transmittance.
2011 Taipei International Invention Show & Technomart - Silver Medal
Features
- Quick, easy, and accurate measurement
- Spectral deviation is within ± 0.1 nm
- Data repeatability is 0.04 %
- Halogen lamp light source with full visible spectrum (380 – 780 nm) testing result
- Test items – UV, VIS, and average VIS transmittance – three functions
- Clear report output, easy data saving
- Haze measure according to standard ASTM D1003
- Full spectrum transmittance according to ASTM D1003
- Transmittance according to ASTM E275-93
Specification (High Level)
- Model：TSM-01
- Resolution：0.8 - 1.5 nm FWHM
- Wavelength Range：380 - 780 nm
- Signal-to-noise Range：0.1 %
- A/D Resolution：16 bit
- Integration Time：1 ms - 24 s
- Interface：USB
- Power：Spectrometer- Default USB Power / Lighting- DC Power
- Dimensions：140(W) x 103(D) x 234(H) mm
- Weight：3500 g
- PC Operating System：Windows XP / Windows 7 / Vista
- Choose and purchase：Small integrating sphere ( for haze measure)
- Design / Made in Taiwan
Specification (Touch Panel)
- Model：TSM-12
- Resolution：4.2 - 5 nm FWHM
- Wavelength Range：380 - 780 nm
- Signal-to-noise Range：0.3 %
- A/D Resolution：16 bit
- Integration Time：1 ms - 24 s
- Interface：USB
- Power：Spectrometer- Default USB Power / Lighting- DC Power
- Dimensions：140(W) x 101(D) x 229(H) mm
- Weight：4000 g
- PC Operating System：Windows XP / Windows 7 / Vista
- Choose and purchase：Small integrating sphere ( for haze measure)
- Design / Made in Taiwan
