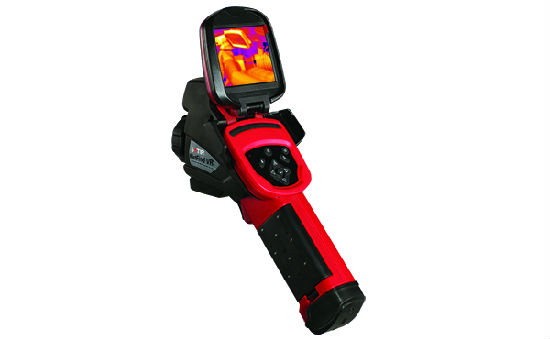

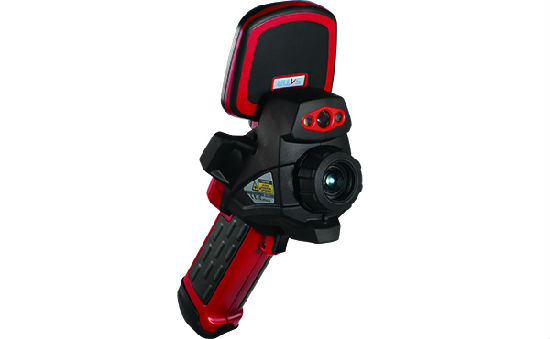

Hotfind-LR Industrial Thermal Imaging Camera 384x288 IP54
Brand:
SATIR
Type:
Infrared Thermometer
Description
Contact Supplier
Description

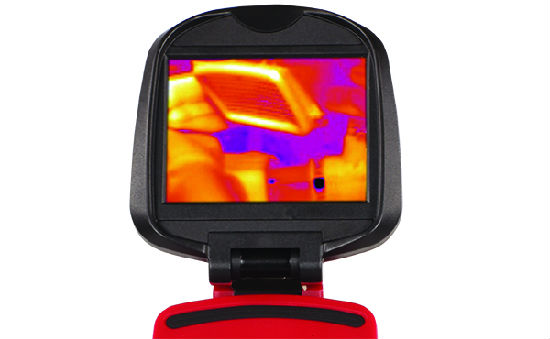

Large screen design, perfect presentation
Hotfind-VR uses a 3.5 inch LCD screen, the user can adjust the angle of the LCD for the best viewing angle. The Tilting design also provides protection for the LCD while the camera is not in use.
Extendable temperature range
Objects of different temperatures require the corresponding temperature ranged infrared cameras. The HotFind-VR has four temperature ranges. It can be extended from the standard -20 to 250℃, upto +1500℃, which means the HotFind series can also be widely used in high temperature applications.
Duo-vision technology
The HotFind-VR can take high quality “Duo-vision”images which aids better interpretation through thermal and visual blending. The user can move the infrared image overlay and alter the transparency to suit their application.
Various optional lenses
Flexible design of the camera means the HotFind-VR can be fitted with various optional lenses for different field of view. All lenses are field replaceable and allow for long distance, wide angle or close views.
USB real time thermal video recording
Full radiometric thermal data can be transferred via the USB2.0 interface to a PC in real-time for analysis and reporting in the SatIrReport USB version software.
Bluetooth
Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.
Measurement Features
The HotFind-VR has integrated Spots (up to 9), Line profile, Area Boxes (up to 5), multiple Isotherm and auto-tracking analysis, which provide accurate non-contact temperature measurement.
Image performance
FOV/Min. focus distance 24° x18°/0.1m
Spatial resolution 1.1 mrad
Thermal sensitivity ≤0.05℃@30℃
Detetor type UFPA（Uncooled focal plane array）
Detetor resolution 384 x288
Spectral range 8-14um
Focus Manual
Image presentation
Image mode IR Yes
CCD Yes
Duo-vision Yes
Video output frequency NTSC (60Hz) or PAL (50Hz) full dynamic output
LCD Display 3.5” TFT screen
Temperature measurement
Measure range up to 1500℃(optional)
Accuracy ±2℃ or ±2％ of readings
Image storage
Type 2GB Removable miniSD card(up to16GB)
Physical characteristic
Weight less than 700g
Additional features
Available optional lenses 12°, 48°
Illuminator Yes
USB2.1 transfer real-time thermal data Optional
Bluetooth Optional
Hotfind-VR uses a 3.5 inch LCD screen, the user can adjust the angle of the LCD for the best viewing angle. The Tilting design also provides protection for the LCD while the camera is not in use.
Extendable temperature range
Objects of different temperatures require the corresponding temperature ranged infrared cameras. The HotFind-VR has four temperature ranges. It can be extended from the standard -20 to 250℃, upto +1500℃, which means the HotFind series can also be widely used in high temperature applications.
Duo-vision technology
The HotFind-VR can take high quality “Duo-vision”images which aids better interpretation through thermal and visual blending. The user can move the infrared image overlay and alter the transparency to suit their application.
Various optional lenses
Flexible design of the camera means the HotFind-VR can be fitted with various optional lenses for different field of view. All lenses are field replaceable and allow for long distance, wide angle or close views.
USB real time thermal video recording
Full radiometric thermal data can be transferred via the USB2.0 interface to a PC in real-time for analysis and reporting in the SatIrReport USB version software.
Bluetooth
Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.
Measurement Features
The HotFind-VR has integrated Spots (up to 9), Line profile, Area Boxes (up to 5), multiple Isotherm and auto-tracking analysis, which provide accurate non-contact temperature measurement.
Image performance
FOV/Min. focus distance 24° x18°/0.1m
Spatial resolution 1.1 mrad
Thermal sensitivity ≤0.05℃@30℃
Detetor type UFPA（Uncooled focal plane array）
Detetor resolution 384 x288
Spectral range 8-14um
Focus Manual
Image presentation
Image mode IR Yes
CCD Yes
Duo-vision Yes
Video output frequency NTSC (60Hz) or PAL (50Hz) full dynamic output
LCD Display 3.5” TFT screen
Temperature measurement
Measure range up to 1500℃(optional)
Accuracy ±2℃ or ±2％ of readings
Image storage
Type 2GB Removable miniSD card(up to16GB)
Physical characteristic
Weight less than 700g
Additional features
Available optional lenses 12°, 48°
Illuminator Yes
USB2.1 transfer real-time thermal data Optional
Bluetooth Optional
