Long-Range IP MESH MANET Wireless Video & Data Link for UAVs and Drone Swarms

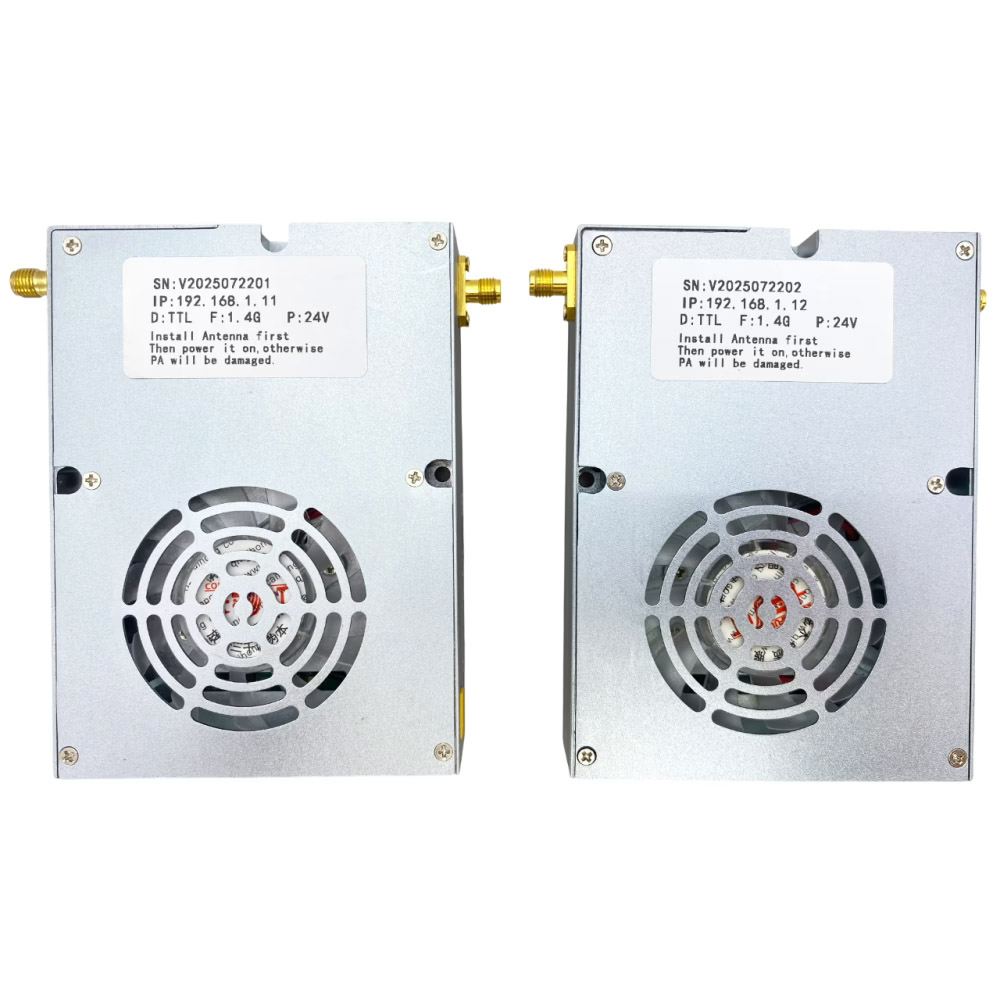

The Vcan1806 is a high-performance wireless video data transmitter and receiver designed for UAVs, drone swarms, and unmanned systems requiring robust, long-range, and low-latency communication. Built on TDD transceiver architecture and OFDM modulation, it supports IP MESH MANET networking, making it ideal for dynamic, decentralized deployments.

Whether you're transmitting IP camera video, telemetry, or control signals, the Vcan1806 delivers up to 100Mbps of bidirectional throughout across distances up to 22km, with optional configurations extending to 150km.

Key Features

• Dual-Band FHSS Operation: 566–678MHz & 1420–1530MHz with automatic frequency hopping across 22 channels for interference resilience.

• IP Transparent Ethernet Bridge: 3x RJ45 ports in bridge mode for seamless IP camera integration.

• Multi-Interface Support:

  • 3x Ethernet (RJ45)

  • 1x RS232 serial port

  • 1x TTL control port

• Advanced Networking Modes:

  • Point-to-Point (P2P): Up to 64 nodes sharing 100Mbps

  • Mesh Networking (MANET): Up to 32 nodes, 100km range

• Modulation: Adaptive QPSK / QAM16 / QAM64

• Encryption: AES128 for secure data transmission

• Power Options: 2W / 5W / 10W PA amplifiers available

• Environmental Tolerance: Operates from -40°C to +85°C

Interfaces & Connectivity

 Applications

• Drone Swarm Coordination

• UAV Video & Control Relay

• Long-Range IP Camera Transmission

• Ground-to-Ground Ethernet Bridge (with relay support)

• Mobile Command Stations

Supports:

• Point-to-Point

• Point-to-Multi-Point

• Mesh Ad Hoc Networking

Transmission Range Options

5km，35km, 100km, 150km

60Mbps or 100Mpbs

FAQ Highlights

Q1: Can it support 5km ground transmission in urban areas?

Yes, with relay nodes or repeaters placed strategically between buildings.

Q2: How does dual-frequency work?

Both the 600MHz and 1.4GHz bands operate simultaneously. If one band is interfered with , the system auto-switches to the clearer frequency using FHSS.

Q3: What's the maximum data rate?

Up to 100Mbps bidirectional throughput.

Customization & Integration

We offer tailored configurations based on your deployment needs—whether you're building a multi-hop drone mesh, a mobile video relay, or a ground-based IP bridge. Compact micro-board options are available for embedded integration.
