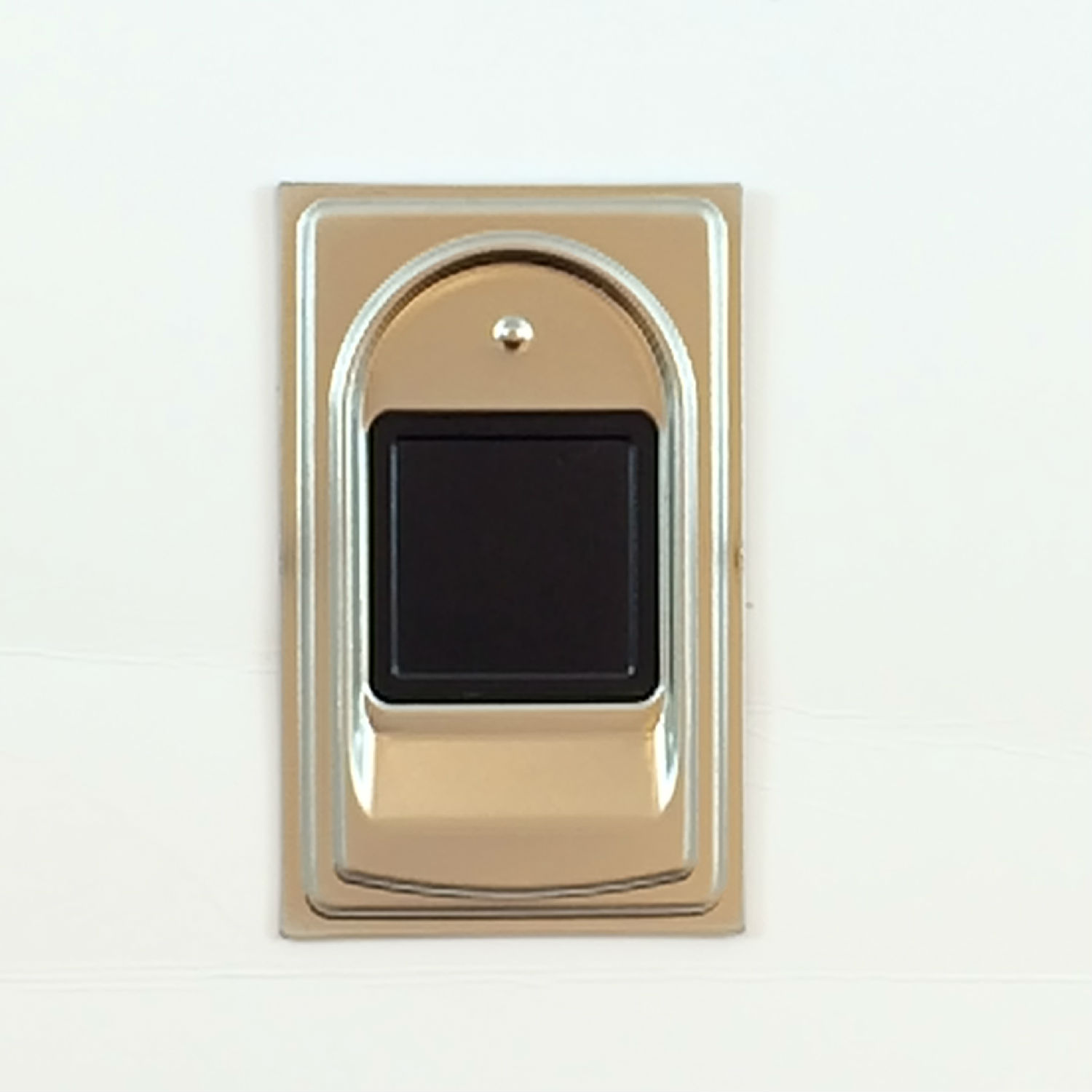

JP2300 is an ultra-thin CMOS fingerprint sensor combined with MCU which can be widely applied in computer peripheral, access control, time and attendance, security application and so on. Cermet-like coating provides up to 8H hardness and protects sensor against scratch, impact and daily wear-and-tear.

The JP2300 is an enhanced version of JP2250 since algorithm inside MCU is integrated together with sensor. The highly integrated module can reduce the system complication and be easily applied in various fields. Sensor with total solution is always JP Sensor’s commitment.

Resolution: 508DPI
Image capture Speed: 40 frames/sec
Sensor Type: Capacitance Type
Security Key: 64-bit
Hardness: 8H
Sensing Array: 192x192 pixels
Operating temperature: -20~60 ℃ / < RH 90%
Dimension: 20.4 X33.4 X4.81 mm (W x H x D)
Interface: UART, USB
