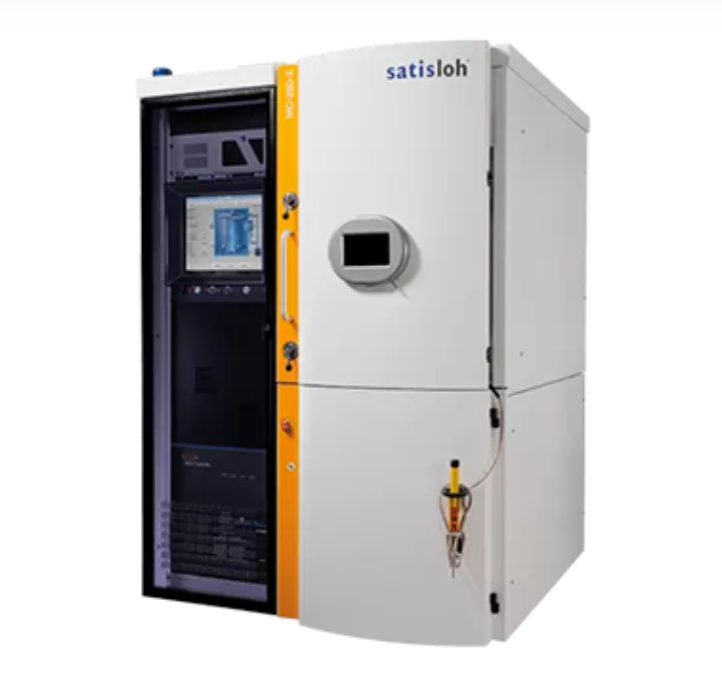

The MC-280-X is a stand-alone vacuum box coater that deposits anti-reflective (AR) and/or mirror coatings on organic lenses via thermal evaporation process (PVD). It offers multiple process applications and is built for Rx-labs with small batch requirements providing highest flexibility.

The MC-280-X is based on the MC-380-X technology and provides high quality AR coatings featuring the same sophisticated AR and mirror coating processes as the big Satisloh box coaters for the best, proven coating results within a batch and from batch to batch.

• Full dome for 30/26 lenses
• Small batch size
• Consistent AR coatings
• Wide range of proven AR and mirror processes
• Easy job and process set-up
• Upgradable for higher productivity

Technical information

• Energy requirements        400 V, 3P+N+E, 50/60 Hz, 15 kVA
• Dimensions (wxdxh)         1453 x 1481 x 2124 mm / 57 x 58 x 84 inches
• Weight                               1150 kg / 2535 lb
