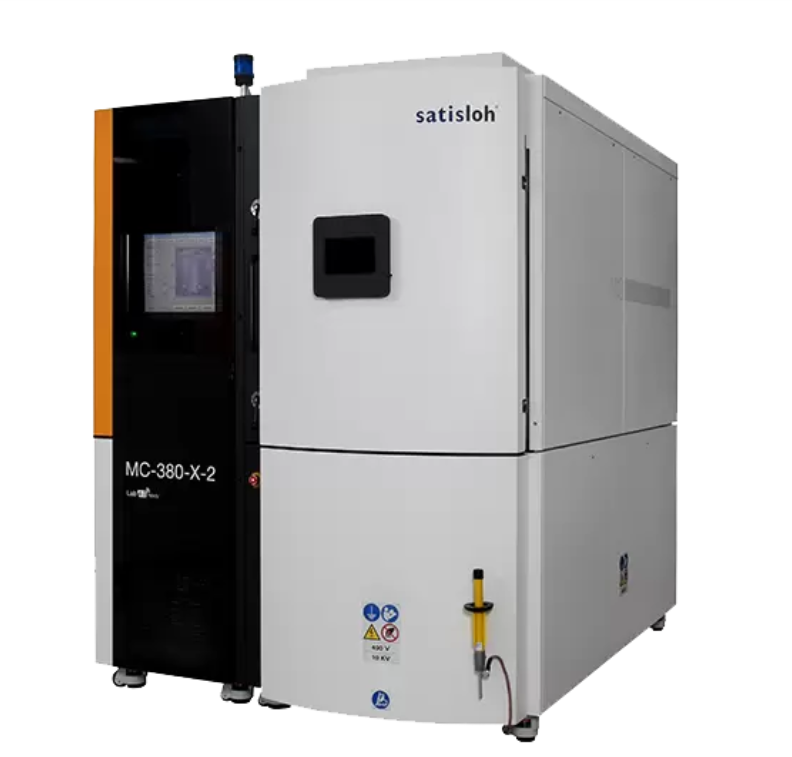

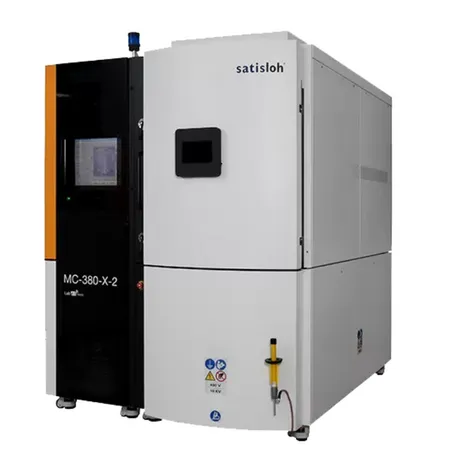

A full dome with capacity extension options, a bigger Meissner trap with up to 30% increased capacity (vs. previous generation) for accelerating the moisture absorption rate and an ultra-fast venting option are just a few features that increase productivity and make the new MC-380-X-2 the fastest coating system on the market! The MC-380-X-2 runs numerous AR and mirror coating processes on organic and mineral lenses as well as in-chamber tinting on mineral lenses. Different configuration levels from Economy to Premium and a wide range of substrate holders from full or sector domes to flip-over systems ensure a suitable solution for every lab. Its sophisticated robust and compact openframe design makes it easy to position in the lab, even with limited space. It houses pumps and thermoconditioner inside and features a detachable control rack and standard pivoting and leveling wheels. All machine components are easily accessible to make maintenance as easy as possible.

The machine comes preloaded with the free MES-360 Lite software that provides labs with daily, weekly, and monthly reports for:

•    Batch runs

•    Machine utilization

 •    Door open time

•     Top 5 errors

An upgrade to the full version of Satisloh MES360 Manufacturing Execution System can be done at any time.

• High capacity: up to 74 lenses Ø 70 mm (with ringless full dome)
• Bigger Meissner trap with up to 30% increased capacity for accelerated moisture absorption rate
• Ultra-fast    venting    option    combined    with    a    new    gate    valve     drastically reduces door-to-door processing time
• Double thermal sources allow evaporation of a second substance by releasing two positions in EBG pocket
• Unmatched    process    and    substrate    flexibility:    the    system     deposits anti-reflective (AR) and/or mirror coatings on both organic and mineral lenses, and in-chamber tinting on mineral lenses
• Dry rotary pump (optional) with frictionless oil-free pumping module provides 53% more pumping capacity, constant pumping performance over time and long maintenance intervals
• Removable heating system for vacuum chamber degassing
• Re-engineered, easy accessible component positioning for quick and simple maintenance
• Detachable control rack and pivoting and leveling wheels for space-saving and easy positioning in the lab
• Compact footprint with pumps and thermoconditioner inside the machine
• Free MES-360 Lite software included
