MN-L80C PLC Module, Stable, 10s Fast Networking, Multi Interface, Enabling Long-distance Transmission

US $6.20 - US $11.00

Production Lead Time:

15 day(s)

Shipping Method:

Depending on situation

Application:

High-power power supply drivers and single-lamp controllers.

Brand:

Micronature

Model No.:

MP-6302

Size:

LxWxH:28.12*18.00*5.80±0.30mm

Weight:

20g

Description

Contact Supplier

Product Description

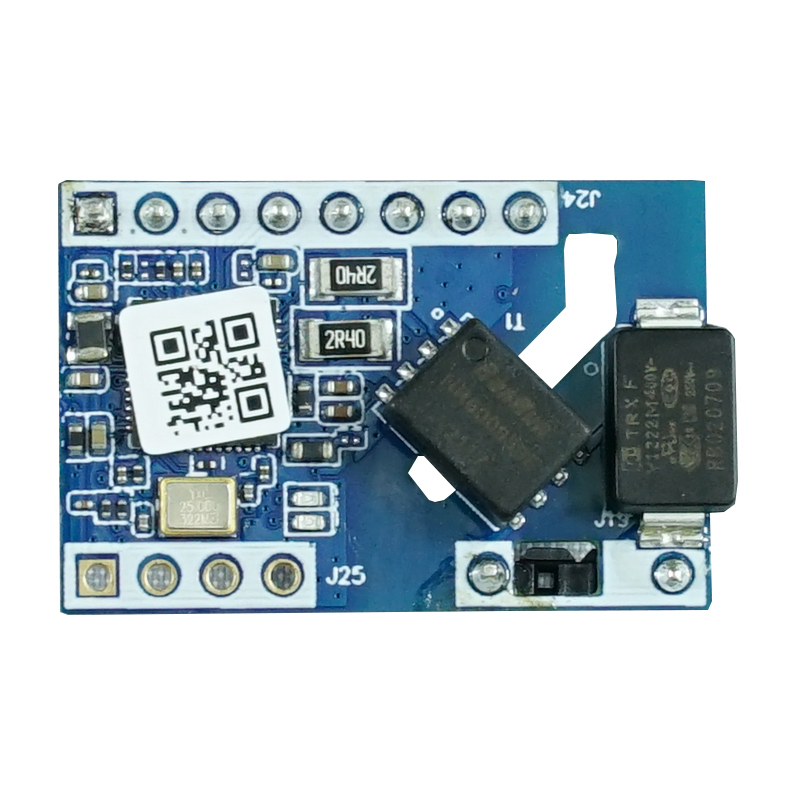

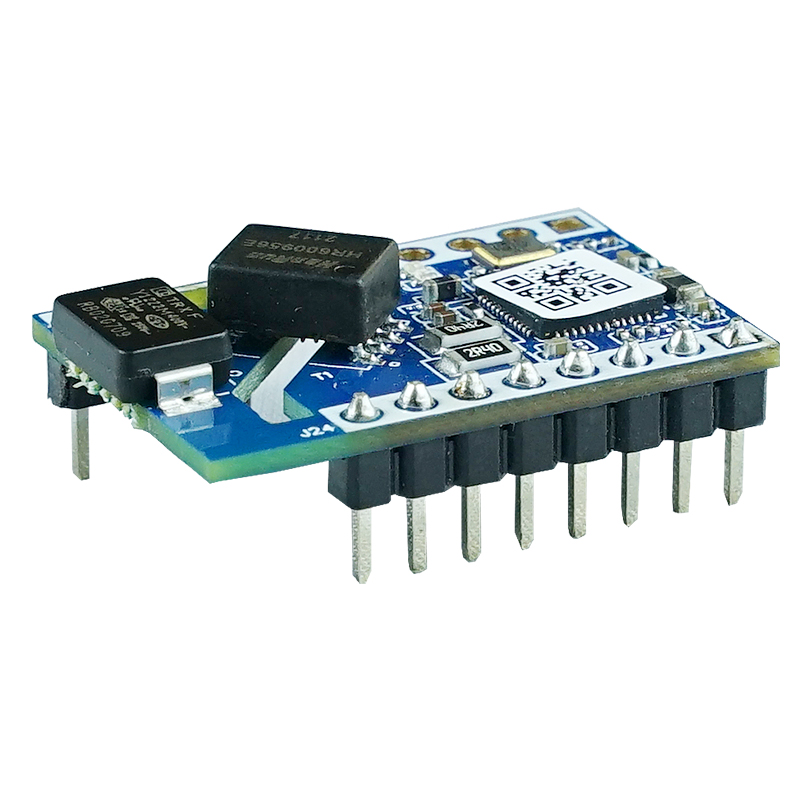

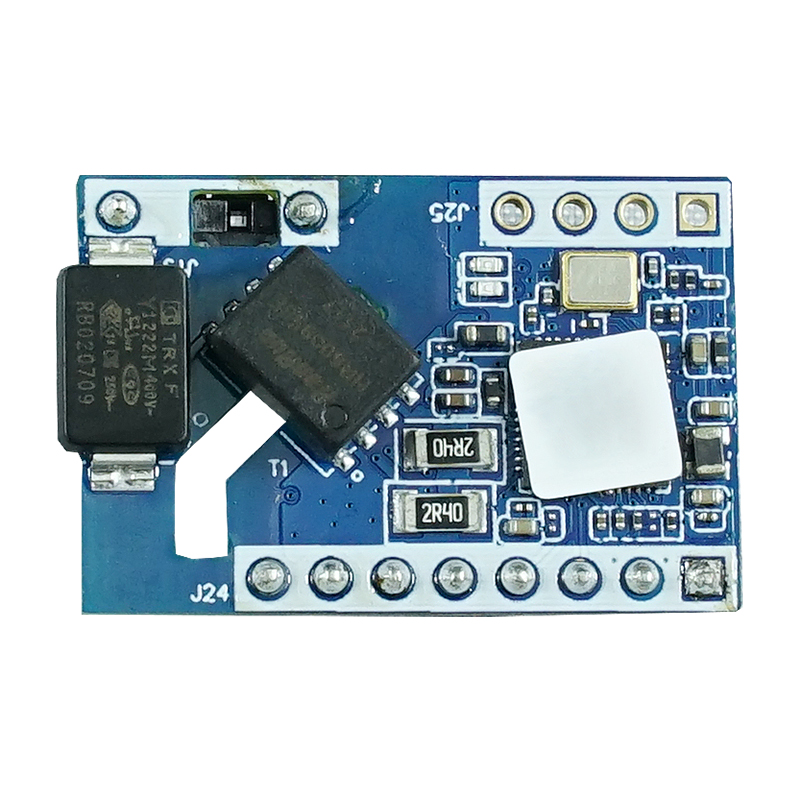

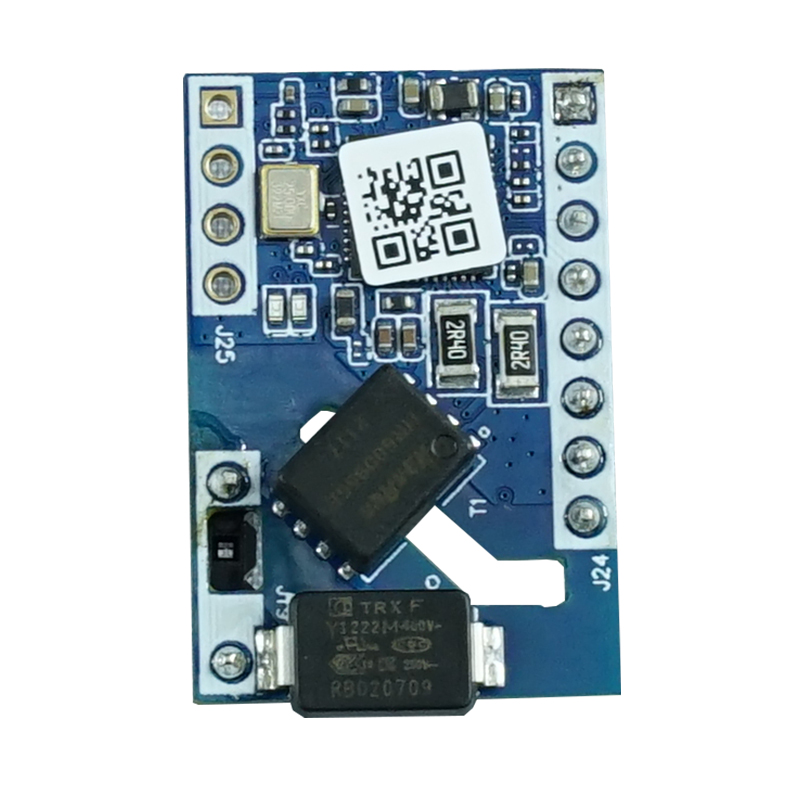

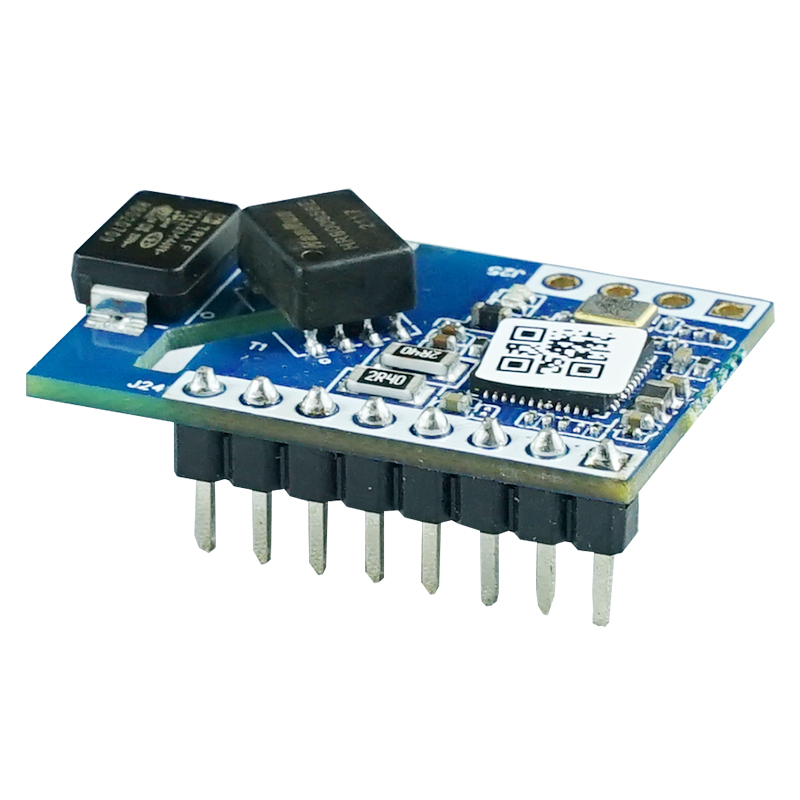

MP-6302 PLC Module is a fully integrated Power Line Communication (PLC) communication module with ultra-compact size, compact structure, and simple wiring. It can be widely used in various PLC instant communication applications, such as smart street lighting, smart homes, smart parking, central air conditioning, and ubiquitous power Internet of Things (IoT) terminal devices.

Name	MP-6302
IC	PS0211
Main Interface	I2C, UART, PWM, GPIO
Communication Method	Power line carrier communication, supports P1901.1, supports OFDM/FSK modulation
Size	LxWxH:28.1218.005.80±0.30mm
Installation	The module is connected to the motherboard with a row of pins, and it is recommended to use the corresponding row of female pins on the motherboard, which can be plug-in mounted.

N/A	DALI	KNX Bus	RS-485	PLC-IoT
Communication Medium	TP	TP	TP	Power Line
Point-to-point Communication Distance	0.1 km	1 km	1 km	2km
Mesh Networking	NO	NO	NO	Support
Network Node Scale	64	200	32	500
Deployment Cost	Requires Rewiring High Cost	Requires Rewiring High Cost	Requires Rewiring High Cost	No Additional Rewiring Economical
Maintenance	Difficult	Difficult	Difficult	Easy

Shenzhen MicroNature Innovation Technology Co., Ltd. is a national high-tech enterprise specializing in PLC-IoT smart industrial lighting solutions. The company integrates design, research and development, manufacturing, and marketing. We have leading High Speed Power Line Communication (HPLC) technology, an open SAAS platform, well-established smart hardware system and abundant experience in industrial-grade smart lighting solutions such as Municip al Road lighting, tunnel lighting, and factory lighting...
