PIR Sensor
Production Lead Time:
30 day(s)
Model No.:
LX-PR-29A
Description
Contact Supplier
Description

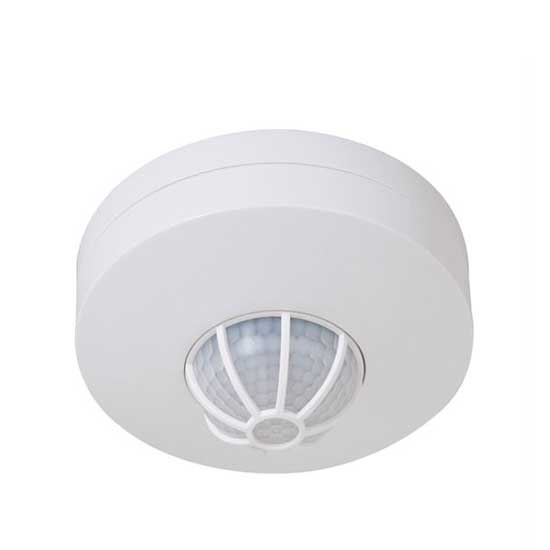

This round PIR sensor comes with a solid white hued appearance for easy fitting the aura. It features a detection range of 3 to 10 meters and a detection angle of 360°. This ceiling PIR sensor makes a wonderful choice for security use.
- Power source: 220-240V AC, 100-130V AC.
- Power frequency: 50Hz/60Hz.
- Detection range: 3-10m, max. (22°C).
- Rated load: 1,200W (220-240V AC), 600W (110-130V AC).
- Time setting: min: 5-10sec, max.: 6min-12±1min.
- Detection angle: 360° (ceiling installation).
- Ambient light: 20-2,000lux.
- Working temperature: -10-+40°C.
- Working humidity: 95% RH.
- Installation height: 2.5-3.5m.
- Power consumption: working 0.45W (static 0.1W).
- Sense motion speed: 0.6-1.5m/s.
