Products Description:

A lamp controller linked with an LED driver, communicates by High-Speed Power Line Communication (HPLC). Remotely turn ON/OFF, dimming(0-10V/PWM), data collection, 85-265VAC, 1-3W, IP66, lightning protection.

- Dual-channel control: Each channel can be independently controlled for power driving and data collection.

- Remote Control: Built-in PLC Communication Module, supporting remote switching, dimming (0-10V / PWM), configuration, and OTA upgrades.

- Failure Detection & Safety Protection: Supports active protection functions such as overcurrent and overload and can actively provide warnings and report faults.

- Precise Measurement: Precise data collecting such as current, voltage, power, energy consumption, and temperature, with an error rate of less than 2‰.

- Application Scenarios: Municipal Road lighting, tunnel lighting, and industrial lighting.

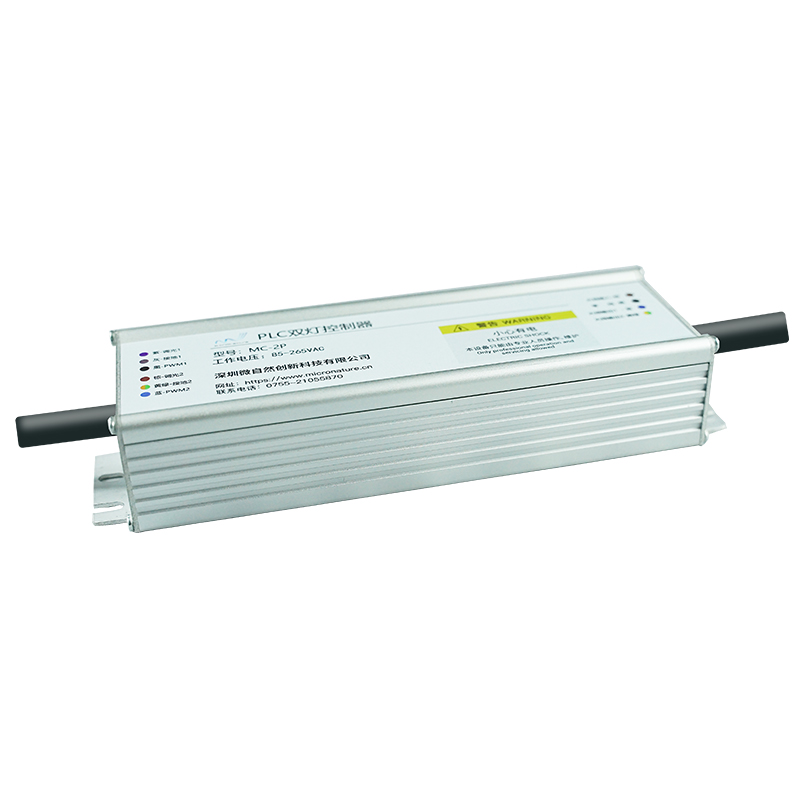

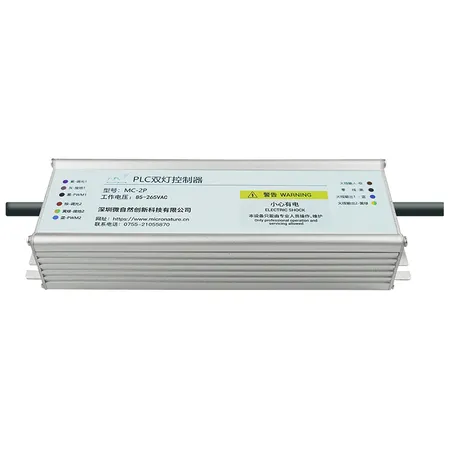

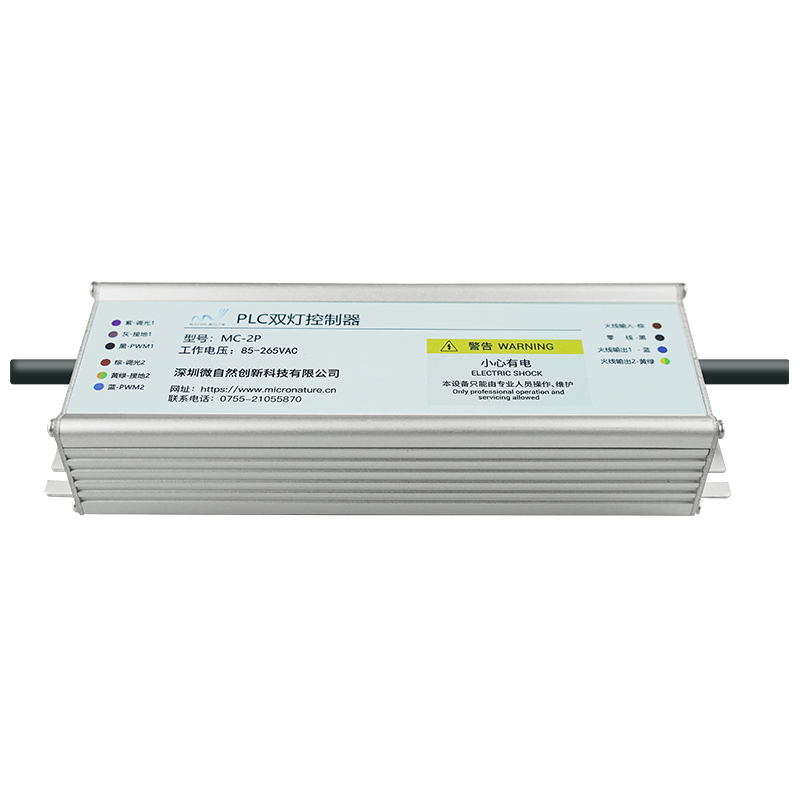

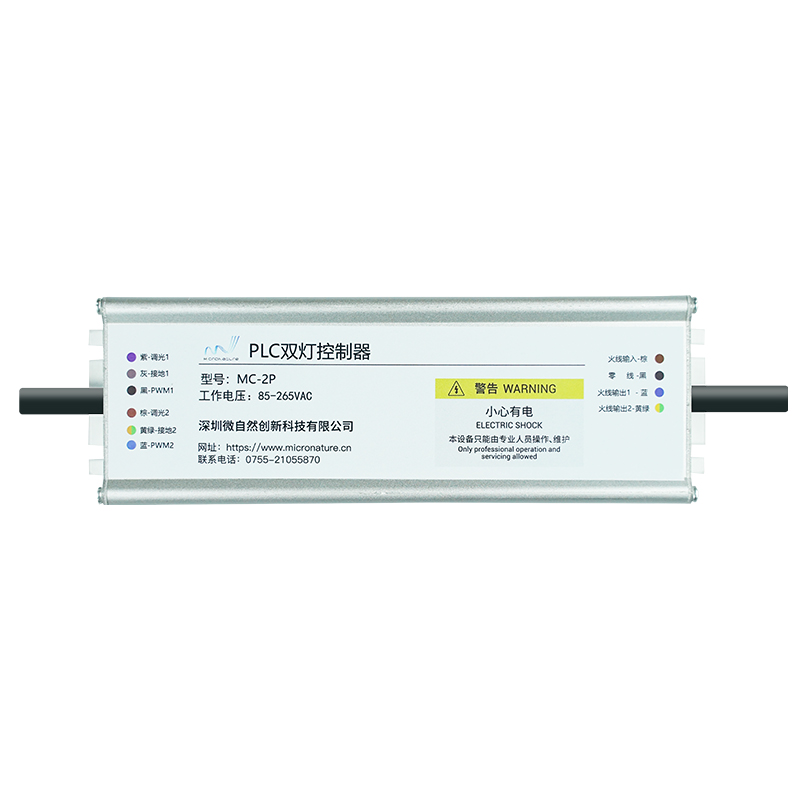

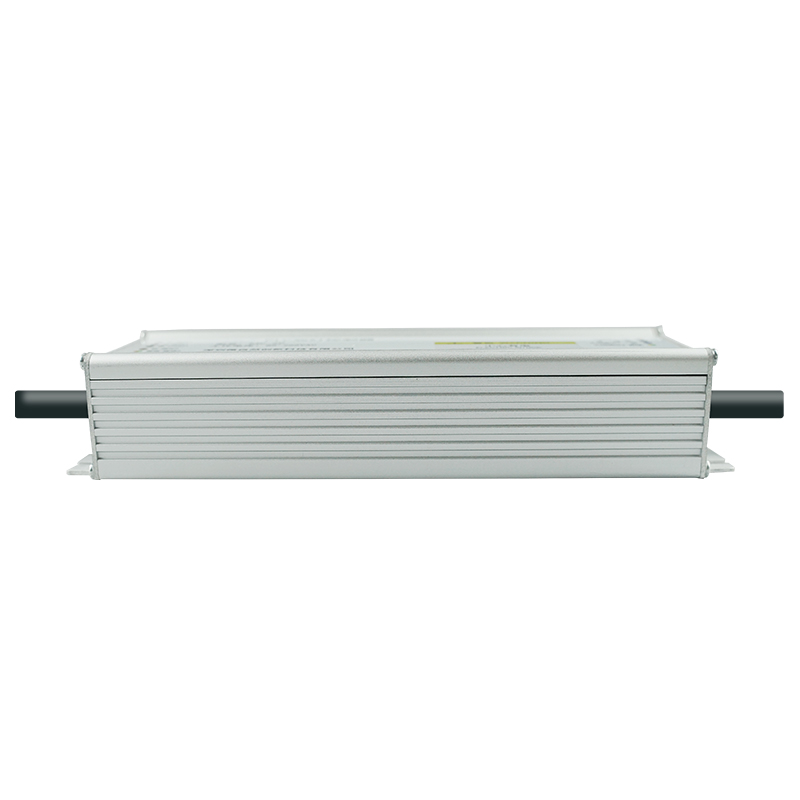

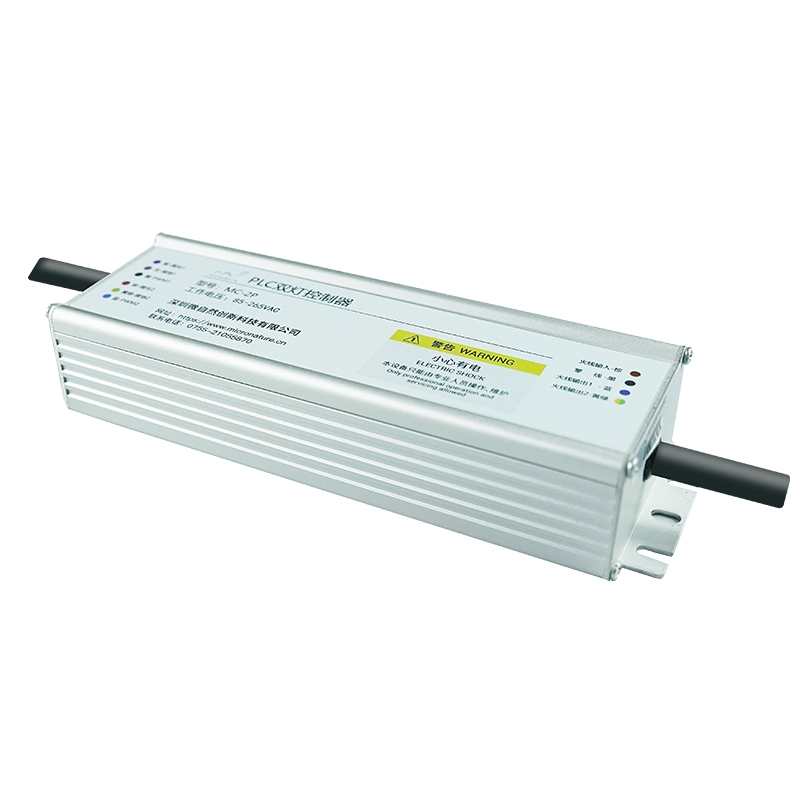

The MC-2P Dual Light Controller adopts broadband power line communication technology, which uses the existing power lines to realize communication without additional wiring and reduces the construction cost. The communication speed is fast, and the peak rate at the physical layer can reach 0.507Mbit/s.

MC-2P Dual light controller uses power line communication to collect data and report input current, voltage, active power, energy, power factor, temperature, on/off light status and so on. It uses Orthogonal Frequency Division Multiplexing (OFDM) modulation technology with strong anti-interference ability. Automatic fast networking is supported. A maximum of 15 level trunks are supported over a long distance.

Key Parameters:

· Communication based on PLC

· Dimming: PWM / 0~10V

· Operating voltage: 85V-265VAC

· Overall power consumption: 1-3W

· Single-channel output current: 0-10A±2%
  Dual-channel output current: 0-20A±2%

· Single Load power rating: ≤800W
  Dual Load power rating: ≤1600W

· Operating temperature: -40°C~+85°C

· Industrial packaging protection: IP66

PLC Dual Light Controller can be used with gateway/traditional power supply/streetlight to achieve the role of remote monitoring, control and management of the street lighting network, and ultimately achieve the purpose of energy saving/cost reduction and efficiency increase.
