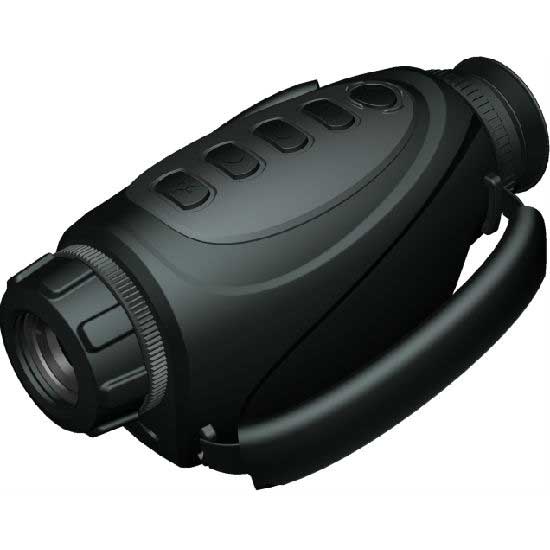

Portable Security Thermal Imaging Camera UMTI
Brand:
SATIR
Description
Contact Supplier
Description
- OLED Viewfinder
- 384x288 UFPA detector
- Light weight, easy to carry
- SD card storage of the images and video
- Easy to operate
Image performance
Detector type UFPA（Uncooled focal plane array）
Detector resolution 384×288（optional 160×120）
Spectral range 8-14μm
Thermal sensitivity ≤0.05℃@30℃
FOV 28°×21°（optional8°×6°）
Focus range 0.5m~∞
Electronic zoom 2X/4X
Features
Start-up time ＜20s
System control Control keys
Brightness/Gain Control Auto/Manual adjust
Image output mode Viewfinder/video output
Viewfinder feature High resolution grayscale LCD （monocular display)
Video output NTSC（60Hz）/PAL（50Hz）
Power supply Li-ion rechargeable battery
Rated voltage 4.8V
Consumption ＜4W
Battery operating time ＞3.5Hours
Size(L*W*H) 188mm×94mm×80mm
