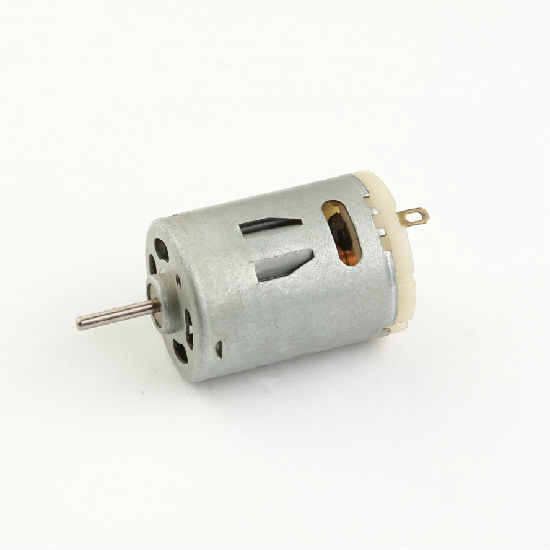

Pump DC Motor
Model No.:
SR365
Colour:
Silvery
Size:
27.7mm(diameter) x 36.1mm
Port:
Hong Kong
Type of Payment:
T/T,L/C
Minimum Order Quantity:
2K
Description
Contact Supplier
Description
Voltage
At maximum efficiency
Output
EFF
Stall torque
Weight: 50g (Approximately)
- Operating range: 6.0V-16.0V to 12.0V-24.0V
- Nominal: 12.0V to 24.0V
- Speed: 12,700 rpm to 18,000 rpm
- Current: 0.08A to 0.21A
At maximum efficiency
- Speed: 9,000 rpm to 14,300 rpm
- Current: 0.268A to 0.82A
- (Torque)
- OZ-in: 0.520 to 0.694
- g-cm: 37.1 to 50.0
Output
- 3.50w to 5.60w
EFF
- 54.7% to 60.3%
Stall torque
- OZ-in: 2.430 to 3.540
- g-cm: 175 to 295
Weight: 50g (Approximately)
