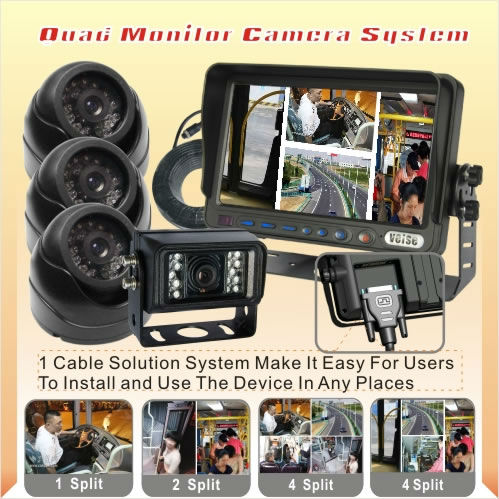

Quad Monitor Backup Camera System
Model No.:
DF-737CB214
Brand:
VEISE
Type of Payment:
T/T
Minimum Order Quantity:
50
Description
Contact Supplier
Description
CCTV CCD camera (model: DF-9803 x 3 DF-8073):
- Image type: 1/3 color Sharp CCD.
- Horizontal resolution: 420TV lines.
- Effective pixel: NTSC: 510 (H) x 492(V); PAL: 500 (H) x 582 (V).
- Usable illumination: 0lux (built in 12pcs IR LED's for picture support in the Dark).
- Free viewing angle: 130°.
- Shockproof: 10G.
- Video output: 1.0Vp-p 75Ω.
- Power supply: DC 12V from reversing monitor.
- Dimensions: (W) x (H) x (D) mm (without mounting).
- 7" digital screen TFT LCD color quad monitor with removable sun visor.
- Single view/split view/quad image view selectable.
- OSD menu separately set each camera trigger priority.
- OSD menu separately set each camera reversing image delay time 0-30”.
- OSD menu separately set each camera mirror/normal image.
- Manual and automatic switch display mode.
- 1 cable solution system make it easy for users to install and use the device in any places.
- Color system: PAL/NTSC (auto).
- Display resolution: 2400 (H) x 480 (V) dot.
- Support four camera inputs: 1.0Vp-p 75Ω.
- Wide view angle (CR>10): (up/ down): 45/65 (left/right): 65/65.
- Brightness (cd/m²): 300 (automatically adjust environment by according).
- Contrast ratio: 500:1.
- Back-light: single LED.
- Operating temperature: -20℃ to +70℃.
- Storage temperature: -30℃ to +80℃.
- Free operating voltage DC 11-32V (1 cable solution).
- External dimensions: L x W x T (185 x 124 x 48)mm (without mounting).
- Weight approx: 379g.
- Product accessories: monitor bracket, 15m cable x 2, 10m cable x 2, electrical connecting cable solution, auto cigarette lighter.
