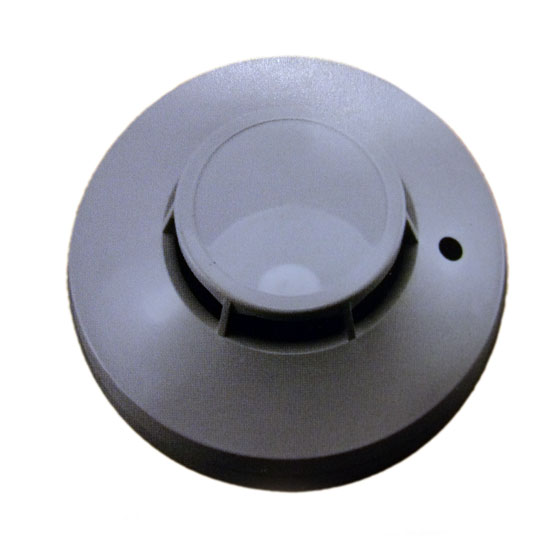

The smoke detector is a device used to detect smoke, typically as an indicator of fire. The detector has the function of networking type photoelectric smoke detecting with microprocessor control. The detector is dustproof, mothproof, resistant to the white light interference.

• Automatic reset/interrupt optional.
• Reset optional.
• Infrared photo sensor.
• Networking output N.C/N.O. optional.
• LED instructions alarm.
• Metal shields, anti-electro magnetic interference.
• SMT process manufacturing, high stability.
• Working voltage: DC9-16V.
• Static current: ≤mA.
• Working temperature: -10°C±50°C.
• Operating humidity: ≤95%RH.
• Alarm mode: networking output/ LED instructions alarm.
• Monitoring area: 20m².
• Sensitivity level: 1 grade.
• Alarm output: electric relay output (NC/NO).
• Product size: ø104 x 49mm.
