Standard Version Microwave Motion Sensor Detector | Consumer Electronics

Hytronik Ind'l Ltd

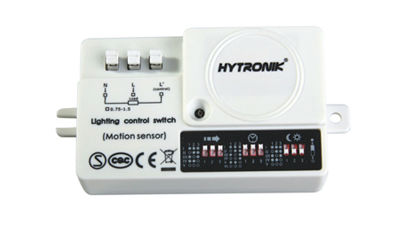

Standard Version Microwave Motion Sensor Detector

Model No.:

HC001S

Brand:

HYTRONIK

Colour:

White

Port:

Shenzhen, China

Type of Payment:

T/T, L/C

Description

Contact Supplier

The sensor can switch on/off halogen transformer non-dimmable fluorescent ballast, non-dimmable LED drivers. However there is a limit of max. load due to the inrush current.

Technical data:

Operating voltage: 220-240V+/-10%; 120V-277V+/-10%.
Switched power: HC001S—400W; HC401S—800/1200W.
Standby power: 0.6W (standby), 1.2W (operation).
Detection area: 10/30/50/75/100%, can be customized.
Hold time: 5s/30s/180s/300s/15min/25min, can be customized.
Daylight threshold: 2-500 lux, daylight/twilight/darkness, can be customized.
Sensor principle: microwave motion detector.
Microwave frequency: 5.8GHz +/-75MHz.
Microwave power: <1mW.
Detection range: max. (diameter, height) 8m, 10m.
Detection angle: 30—150 degree.
Motion detection: 1-20km/h (<3m mounting height); 1-200km/h (>5m height).
Mounting height: 0.5~10m.
Operating temperature: -35~70 degree.
IP rating: IP 20 (mounting inside a lamp); IP65 (mounting in Hytronik special box).
