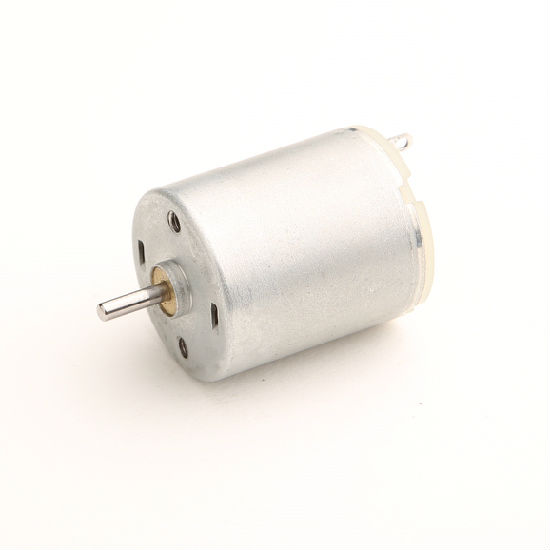

Toys and Models DC Motor
Production Lead Time:
30 day(s)
Model No.:
SR30L
Colour:
Silvery
Size:
23.8mm(diameter) x 32.0mm
Port:
Hong Kong
Type of Payment:
T/T, L/C
Minimum Order Quantity:
2,000 piece(s)
Description
Contact Supplier
Description
Voltage
No load
At maximum efficiency
Output
EFF
Stall torque
Weight: 42g (Approximately)
- Operating range: 1.5V-3.0V to 6.0V-12.0V
- Nominal: 1.5V to 12.0V
No load
- Speed: 4,600 rpm to 13,600 rpm
- Current: 0.12A to 0.28A
At maximum efficiency
- Speed: 3,750 rpm to 14,740 rpm
- Current 0.53A to 1.38A
- (Torque)
- OZ-in: 0.160 to 0.466
- g-cm: 11.5 to 33.3
Output
- 0.443w to 5.030w
EFF
- 56.2% to 61.7%
Stall torque
- OZ-in: 0.86 to 3.15
- g-cm: 62 to 225
Weight: 42g (Approximately)
