Typical Applications

• Office Automation Equipment
• Automotive Products

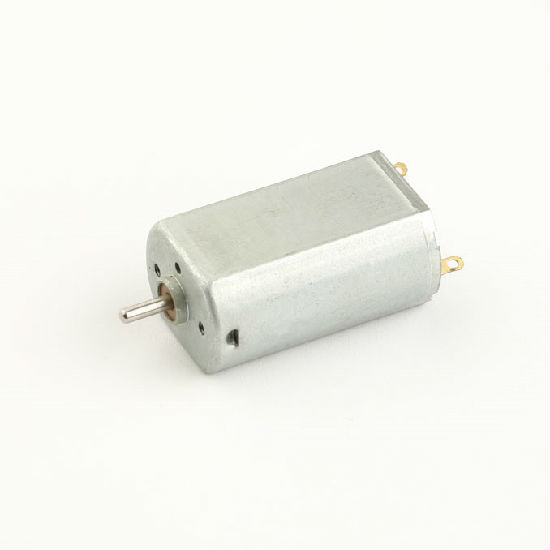

Model: FF130SH-3248
Voltage

• Operating range: 0.5~1.2
• Nominal: 1.2V

No load

• Speed: 7100rpm
• Current: 0.23A

At maximum efficiency

• Speed: 5870 rpm
• Current: 1.07A
• Torque: 0.150 OZ-in; 11.2 g-cm

Output

• 0.67W

EFF

• 52.5%

Stall torque

• 0.89 OZ-in; 64.7 g-cm


Model: FF130SH-2490
Voltage

• Operating range: 1.0~2.4
• Nominal: 2.4V

No load

• Speed: 7370 rpm
• Current: 0.13A

At maximum efficiency

• Speed: 6100 rpm
• Current: 0.62A
• Torque: 0.17 OZ-in; 12.8 g-cm

Output

• 0.79W

EFF

• 53.2%

Stall torque

• 1.020 OZ-in; 74 g-cm

Model: FF130SH-14230
Voltage

• Operating range: 2.0~5.0
• Nominal: 5.0V

No load

• Speed: 6000 rpm
• Current: 0.05A

At maximum efficiency

• Speed: 4900 rpm
• Current: 0.2A
• Torque: 0.150 OZ-in; 11.0 g-cm

Output

• 0.550W

EFF

• 54.8%

Stall torque

• 0.830 OZ-in; 60 g-cm


Model: FF130SH-11340
Voltage

• Operating range: 2.0~9.0
• Nominal: 6.0V

No load

• Speed: 4800 rpm
• Current: 0.03A

At maximum efficiency

• Speed: 3820 rpm
• Current: 0.11A
• Torque: 0.120 OZ-in; 8.99 g-cm

Output

• 0.350W

EFF

• 50.2%

Stall torque

• 0.610 OZ-in; 44 g-cm


Model: FF130SH-09450
Voltage

• Operating range: 3.0~12.0
• Nominal: 12.0V

No load

• Speed: 7500 rpm
• Current: 0.03A

At maximum efficiency

• Speed: 6060 rpm
• Current: 0.12A
• Torque: 0.15 OZ-in; 11.3 g-cm

Output

• 0.7W

EFF

• 51.5%

Stall torque

• 0.810 OZ-in; 59 g-cm

Weight: 24g (approximately)
