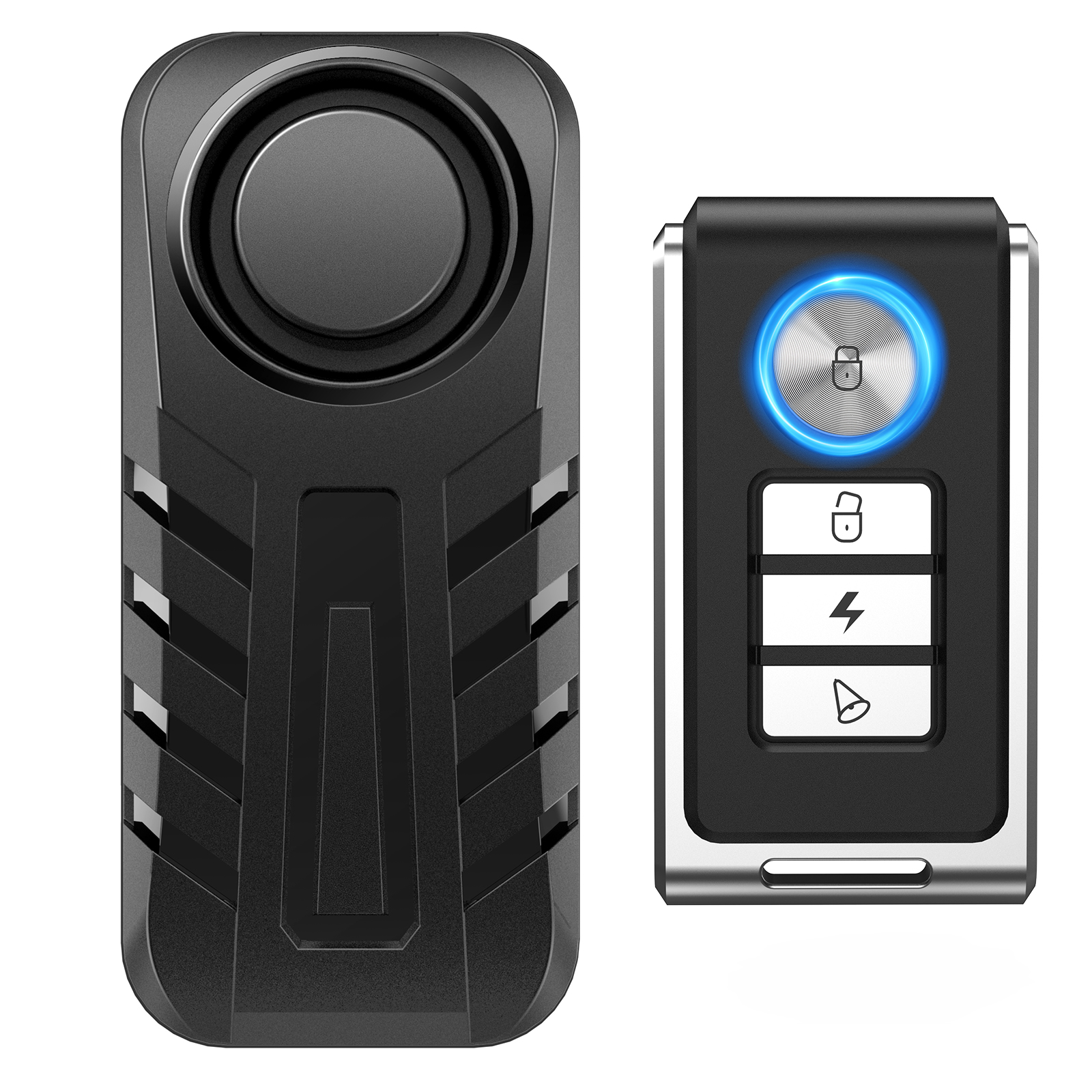

Main unit size: 95*43*24mm

Remote size:59.5*32.5*12mm

Main unit weight: 38.2 g (without battery)

Remote weight: 17.3 g (with battery)

Decibel: 115-130dB

Material：ABS

Main battery: 3 AAA batteries

Remote battery: 1 CR2032 battery

Qty: 88PCS

MEAS:42*33*24CM

G.W/N.W:11.1/10.45kgs

Function:

Remote Control System Function Description

This system offers a comprehensive set of features, including arming, disarming, a doorbell/vehicle locator, and a tilt alarm, all operable via a portable remote.

1. Pairing Function
To pair the remote with the main unit:

• Press and hold the Pairing Button on the remote until you hear a "Beep" from the main unit.

• Then, briefly press the Arm/Disarm Button to complete the pairing process.

2. Arming Function

• Briefly press the Arm/Disarm Button. You will hear a "Do-Re-Mi" confirmation tone.

• The system will enter alert mode after a 5-second delay, confirmed by a single "Beep".

• If the alarm is triggered, you can press the Arm/Disarm Button again to stop the alarm immediately and exit the armed state.

3. Disarming Function

• Briefly press the Arm/Disarm Button. You will hear a "Mi-Re-Do" confirmation tone.

• The system will immediately exit the alert mode.

4. Doorbell & Vehicle Find Function
This function uses two separate buttons:

• Briefly press the Ringtone Select Button to cycle through 3 different ringtones.

• Briefly press the Trigger Button to sound the currently selected ringtone for 3 seconds, helping you locate your vehicle or use it as a doorbell.

5. SOS Function (Tilt Alarm)
This feature triggers an alarm if the vehicle's tilt angle exceeds 60° (e.g., if it is being lifted or moved).

1. Enter Setup Mode: Press and hold the Function Setting Button on the remote until its indicator light turns off and then lights up steadily again.

2. Initiate Calibration: Then, briefly press the Arm/Disarm Button. The main unit will beep once to indicate it has entered posture calibration. The vehicle must remain still for 10 seconds.

3. Calibration Result:

   • Calibration Successful: The main unit will beep 5 times, indicating the function is now active.

   • Calibration Failed: The main unit will beep 2 times, meaning you need to reinstall the main unit and repeat the process.

4. Function Active: Once activated, the alarm will sound if the vehicle's tilt angle exceeds 60°. The alarm will stop automatically when the vehicle is returned to its original angle.
