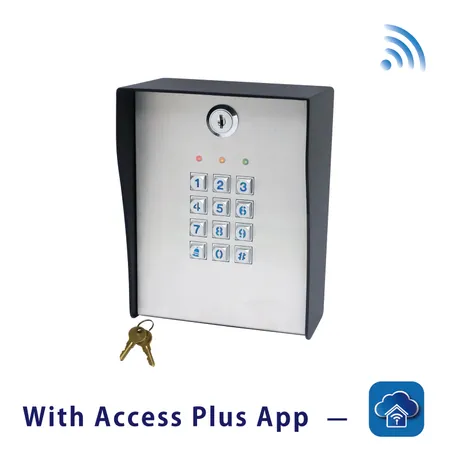

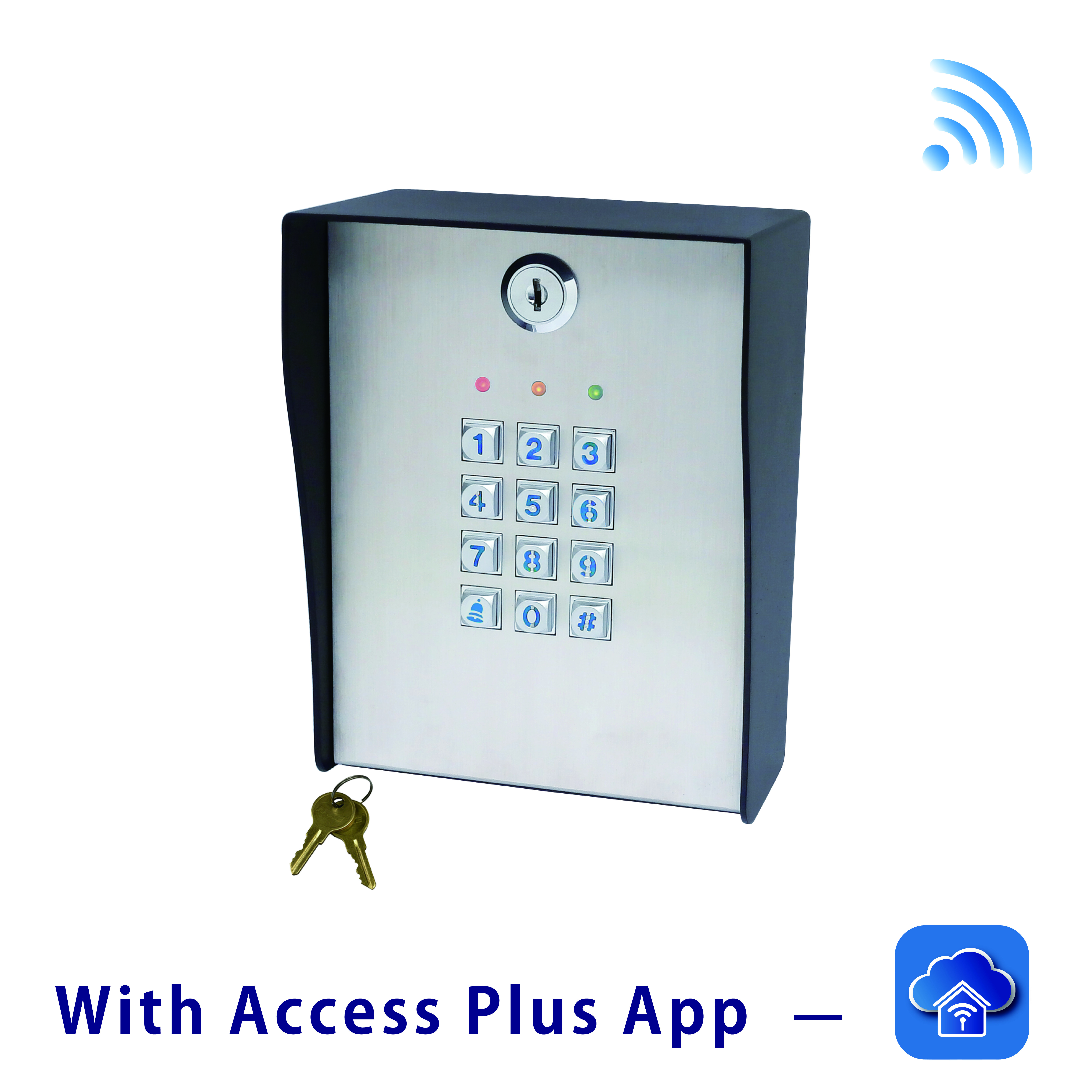

DK-2881 MK-II+ is a self-contained three output relay, vandal-resistant and weatherproof (Wi-Fi) Keypad. It is the digital keypad.

DK-2881GA – Three output surface / gooseneck mount keypad

DK-2881GB – Three output surface / gooseneck mount keypad with door bell output

The keypad compatible with three operation modes:

(1) Stand-Alone Mode – Keypad and Electric Lock

(2) Multi-Station Mode – Keypad, Auxiliary Keypad and Electric Lock

(3) Split-Decoded Mode – Keypad, Split Decoder and Electric Lock

In these three-operation modes, split decode has the highest security protection for home and office. Further, the keypad can be upgraded with the Wi-Fi Module to gain more features, such as remote control, receive & record checking and setting password via mobile app.

Features:

• Three relay output for door lock and equipment control
• Built-in real-time clock for inhibition mode
• Optional multi-station, split-decode and Wi-Fi socket for expansion
• 26-bit, 34-bit or 37-bit Wiegand data output
• Different levels of user mode
• Interlock for dual keypad installation
• Duress and alarm output for external device
• Visitor and temporary password programable with time
• Output relay change be toggle or time mode
• Built-in tamper switch
• Vandal-resistant weatherproof with back-lit metal keytop
• App compatible for remote control, receive alarm message and password setting
• Suitable installation on wall or mounting on gooseneck post
