Wired Ceiling-Mounted Infrared PIR Detector PIR Motion Sensor With Dc9-16v
Model No.:
LS-818-6
Brand:
Longsin
Colour:
white
Size:
106*36mm
Port:
Shenzhen
Type of Payment:
Paypal, T/T, L/C, union western
Minimum Order Quantity:
50
Customised:
Yes
Type:
Auto
Description
Contact Supplier
Description
Pir Sensor
Model: LS-818-6
The procuct is suitable for the safety of residential house,villas,factories,markets,warehouses,office building .
Main feature
1.Auto temperature compensation
2.Pulse count adjustment
3.Fresnel lens
4.SMT design adopted,anti-RFI&anti-pet
5.Wall/ceiling installation
6.Alarm output N.C./N.O. Optional
Technical parameter
Operating Voltage:DC9-16V
Current consumption:18mA (DC12V)
Detecting distance:12m
Detecting angle:360°
Self-testing time:60S or so
Operating temperature:-10°C +50°C
Alarm indicator:red LED
Alarm output:NC or N.O., DC28V, 100mA
Range of coverage:11 distance, 8middle,5vicinities
Sensor:dual element infrared sensor
Environment Humidity:95 RH
Anti R F INTERFERENCE:10MHz-1GHz 20V/m
Installation mode:Ceiling mounted
Installation height:2.5-6m

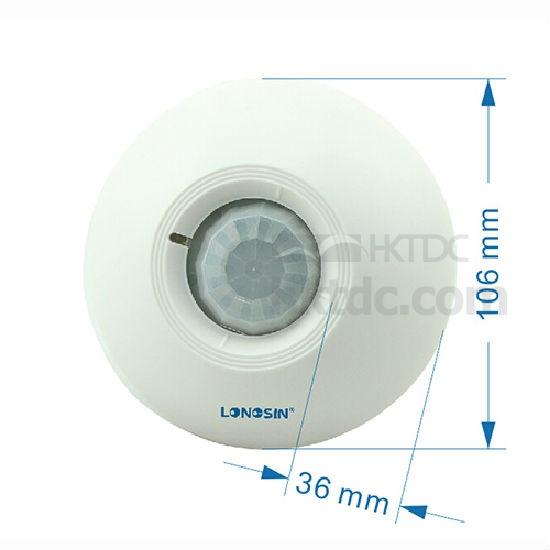

Outline Size:106*36mm
Model: LS-818-6
The procuct is suitable for the safety of residential house,villas,factories,markets,warehouses,office building .
Main feature
1.Auto temperature compensation
2.Pulse count adjustment
3.Fresnel lens
4.SMT design adopted,anti-RFI&anti-pet
5.Wall/ceiling installation
6.Alarm output N.C./N.O. Optional
Technical parameter
Operating Voltage:DC9-16V
Current consumption:18mA (DC12V)
Detecting distance:12m
Detecting angle:360°
Self-testing time:60S or so
Operating temperature:-10°C +50°C
Alarm indicator:red LED
Alarm output:NC or N.O., DC28V, 100mA
Range of coverage:11 distance, 8middle,5vicinities
Sensor:dual element infrared sensor
Environment Humidity:95 RH
Anti R F INTERFERENCE:10MHz-1GHz 20V/m
Installation mode:Ceiling mounted
Installation height:2.5-6m
Outline Size:106*36mm
