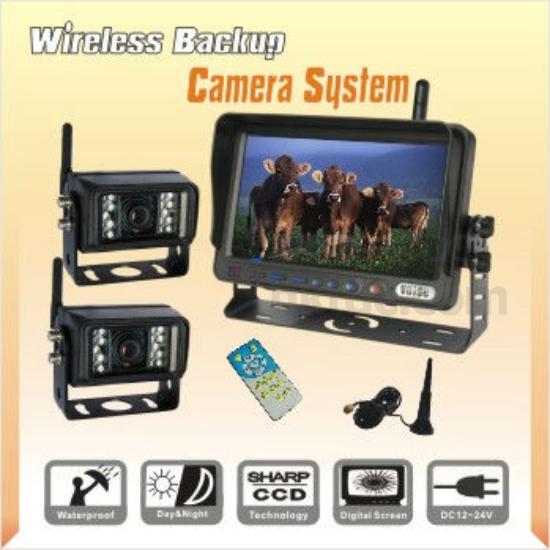

Wireless Backup Camera System
Model No.:
DF-7260312
Brand:
VEISE
Type of Payment:
T/T
Minimum Order Quantity:
50 pc(s)
Description
Contact Supplier
Description
- Wireless farm CCTV security camera system for driveway gate security systems.
- 7" digital screen TFT LCD monitor built-in 4CH, 2.4GHz.
- Wireless receiver and OSD menu separately set each camera mirror/normal image, trigger priority, reversing image delay time: 0-30".
- Built-in CDS sensor for illumination of the control knobs.
- 2.4GHz wireless farm CCTV security camera with 18pcs LEDs for night vision and waterproof IP66 for outdoor use.
- Image type: 1/3 color Sharp CCD.
- Built in 2.4GHz transmitter and omni-directional antenna.
- Transmission power: 10mW/CE, 2mW/FCC.
- Estimate of 100 meter wireless send distance without block.
- Horizontal resolution: 420 TV lines.
- Effective pixel: NTSC: 510 (H) x 492 (V), PAL: 500 (H) x 582 (V).
- Usable illumination: 0lux (built in 18pcs IR LED's for picture support in the dark).
- Free viewing angle: 130°.
- Waterproof: IP68.
- Shockproof: 10G.
- Free operating voltage: DC11-32V.
- Dimensions: 89 (W) x 53 (H) x 48 (D) mm (without mounting).
- Weight: 200g.
- Wireless farm CCTV system monitor with removable sun visor.
- Built in 4CH (2.414/2.432/2.450/2.468) GHz wireless receiver.
- Receiving sensitivity: ≤-80dBm.
- OSS menu separately set each camera trigger priority.
- OSD menu separately set each camera reversing image delay time: 0-30".
- OSD menu separately set each camera mirror/normal image.
- Color system: PAL/NTSC.
- Display resolution: 800RGB (H) x 480 (V) dot.
- Wide view angle (CR>10): (up/down): 45/65 (left/right): 65/65.
- Brightness (CD/m²): 300.
- Contrast ratio: 500:1.
- Operating temperature: -20℃ to+70℃.
- Storage temperature: -30℃ to+80℃.
- Power supply: DC11~32V.
- External dimensions (L x W x T): 180 x 118 x 23mm.
- Weight approx: 350g.
- CCTV camera system accessories: monitor bracket, auto cigarette lighter, user manual, full function remote controller.
