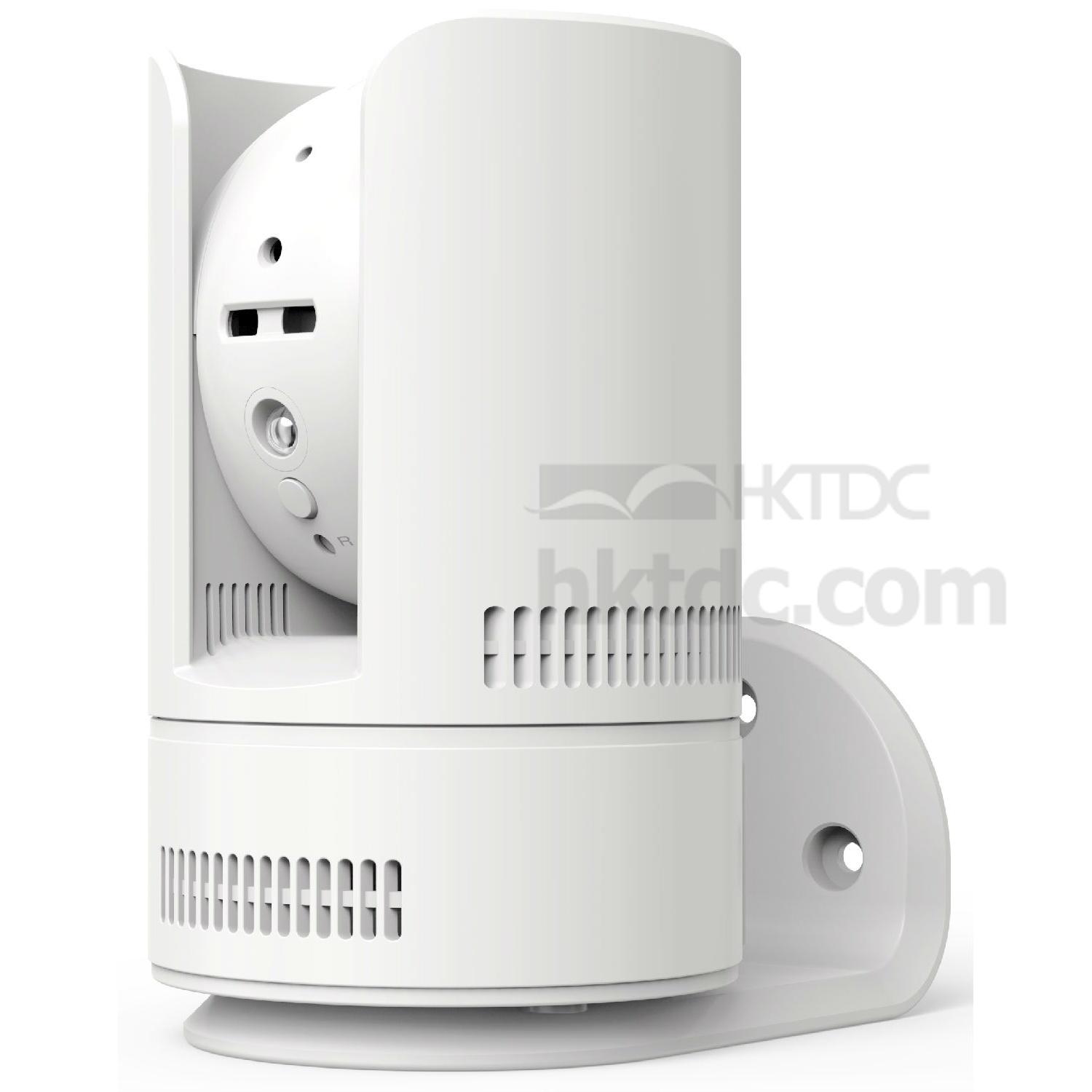

• -Camera with Z-Wave controller/gateway functions integrated
• -Support Zwave devices control, room control and scene control
• -Control up to 20 Z-Wave devices
• -Control up to 10 rooms, each room allows max of 20 devices
• -Control up to 20 scenes, each scene allows 6 events and 6 actions
• -Allows alarm notification for each Z-Wave devices and each scene
• -Pan/tilt control
• -Plug & play by ID/password, no IP address or DNS settings
• -H.264 video compression
• -Mega-pixel for up to 1280x800 resolution at 30 fps
• -Two sensors/lens for day and night separately
• -Two way audio
• -SD card video recording with 5 seconds of pre-recording
• -802.11 n wireless with WEP and WPA/WPA2 security support
• -WPS (WiFi Protected Setup) support
• -Triple video streaming on PC, mobile and SD card recording
• -Night mode control – support automatic, manual and scheduled modes
• -Connect up to 20 users simultaneously
• -Bundle with free video management software CamView
• -Push notification on iPhone/iPad and Android for motion and sound detection
• -Email/ftp alarm message for motion and sound detection
• -Event scheduling
• -Video recording on NAS device

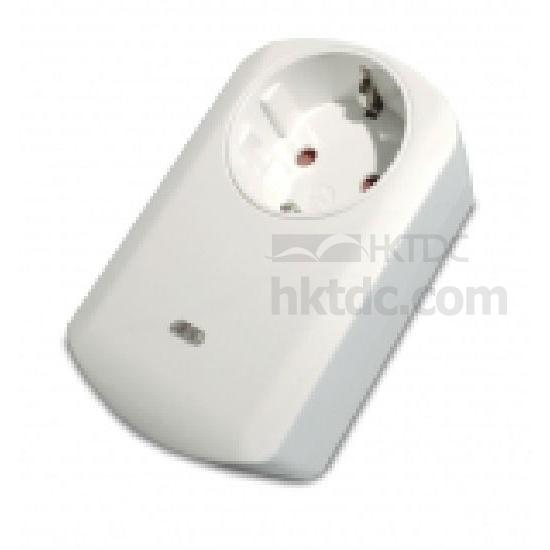

Z-Wave Power Plug PAN11 Specification
Follow Z-Wave Plus standard

1. Power on/off control
2. Power meter report
3. Also worked as repeater

Maximum Load: 13A, LED flashes on 0.2 second interval when overloaded
Range: 30m indoor, 70m open site
Operating temperature: 0-40 °C
Approvals: EMC - CE, FCC Part 15 Subpart B Class B
Wireless: RF - CE, FCC Part 15 Subpart C

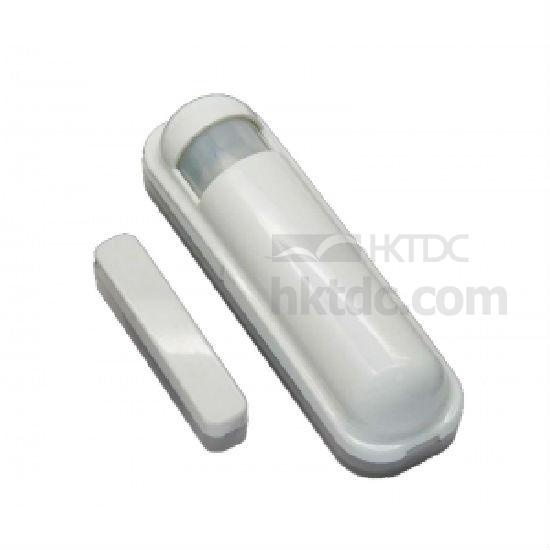

Z-Wave 4in1 Sensor PST02-A Specification
Follow Z-Wave Plus standard

4-IN-1 Sensors: PIR, door/window, temperature, illumination sensor
Battery Type: CR123A, 3.0V
Battery Life: two years
Range: 30m indoor, 70m open site
Operating temperature: 0-40 °C
Approvals: EMC - CE, FCC Part 15 Subpart B Class B
Wireless: RF - CE, FCC Part 15 Subpart C
