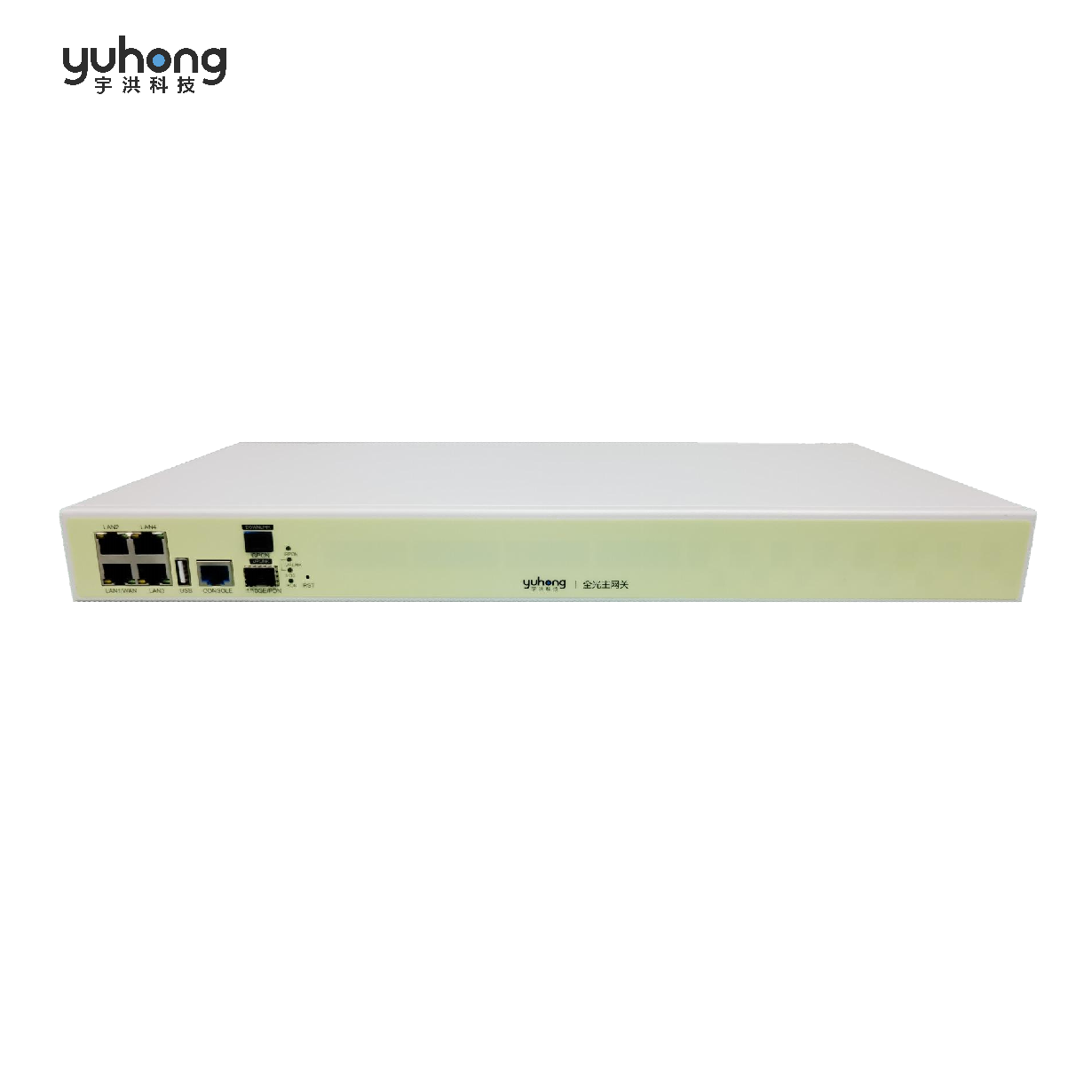

i.Uses: Yuhong GXR101 series (hereinafter referred to as GXR101 or all-optical master gateway) is an all- optical converged gateway device launched by Yuhong, which supports various uplink modes such as Ethernet GE/10G or GPON/XG(S)-PON, and realizes all-optical access for enterprises. In addition to other Gigabit LAN ports, it also provides downlink PON ports, which can be used with sub-optical cats to realize terminal wired or wireless access. Optionally, it provides downstream PoF port (power supplied by fiber-optic composite cable), and at the same time, it works with WiFi type suboptics cat to realize Wi-Fi

wireless access. As an all-optical integrated optical gateway device, GXR101 series is suitable for deployment in network environments such as small and medium-sized enterprises, small hotels, B&Bs, restaurants, child care centers, KTVs, supermarkets, clinics, and so on.

ii.Main Performance:4*GE (LAN1 supports LAN/WAN multiplexing) + 1*GPON (can be connected to external optical splitter)

iii.Material: Metal shell

iv.Size (approx): 440mm*230mm*44mm

v.Transmission distance:20KM

vi.Operating voltage:AC100-240，50/60Hz

vii.Power consumption:30W/3A

viii.Weight:2.5 Kg
