IMX307 1080P 30FPS H.264 Wide Angle ISP SoC Camera Module | Security & Surveillance

Dongguan Hampo Electronic Technology Co., Ltd

Enquire

Compare & Bulk Enquire

IMX307 1080P 30FPS H.264 Wide Angle ISP SoC Camera Module

US $32.30 - US $34.20

US $34.00 - US $36.00

Production Lead Time:

35 day(s)

Shipping Method:

express delivery

Customised:

Yes

Model No.:

GN-CYI220

Sensor:

IMX307

Resolution:

1080P

FOV:

148°

Focus Tyoe:

Description

Contact Supplier

Product Description

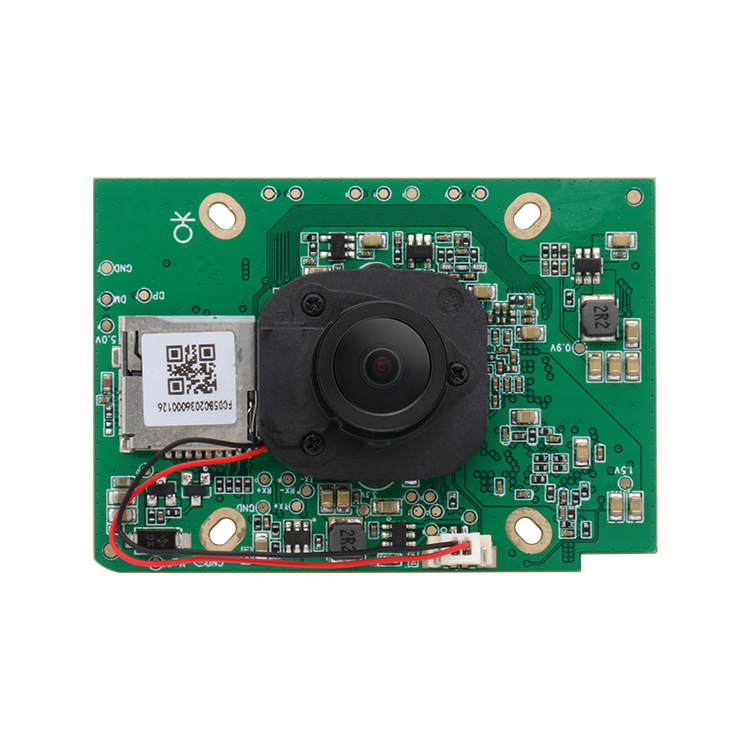

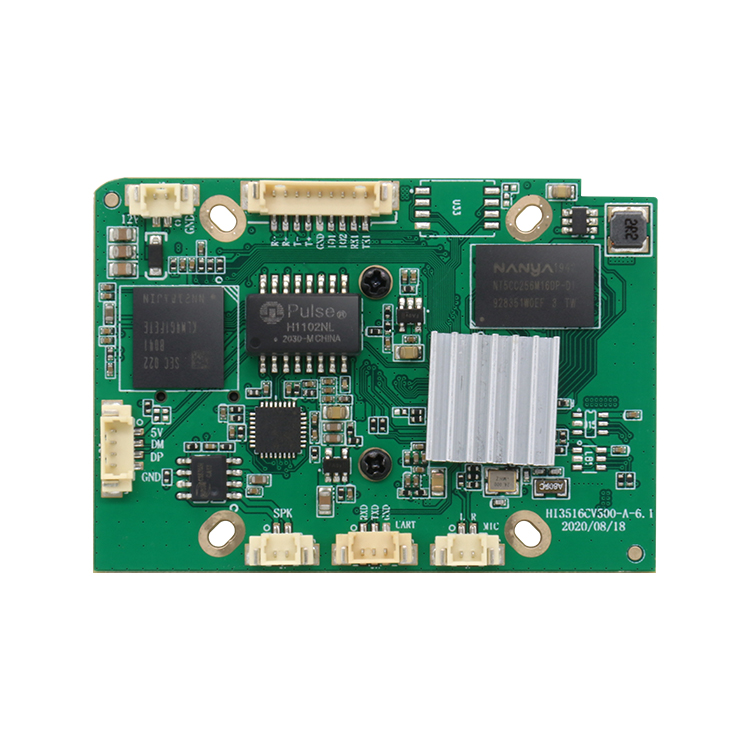

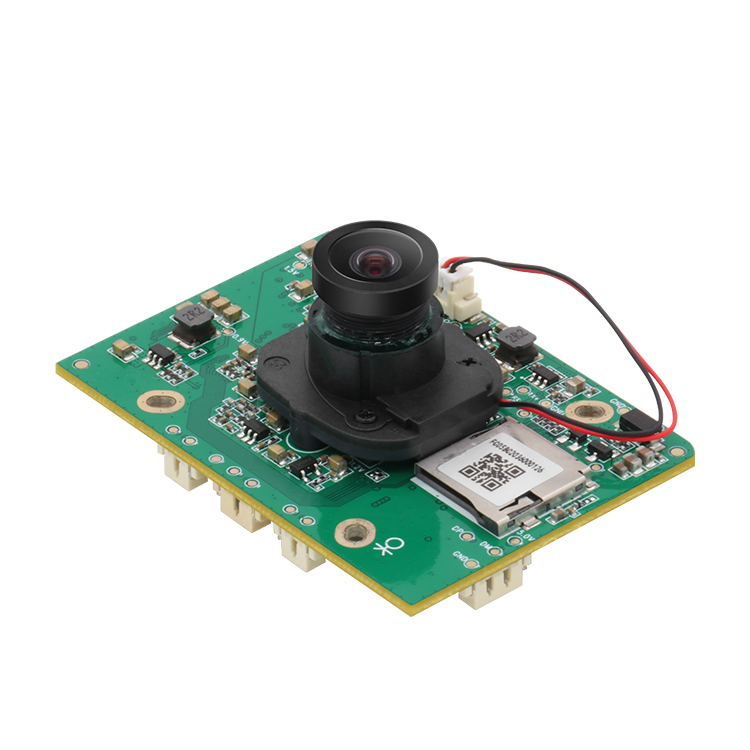

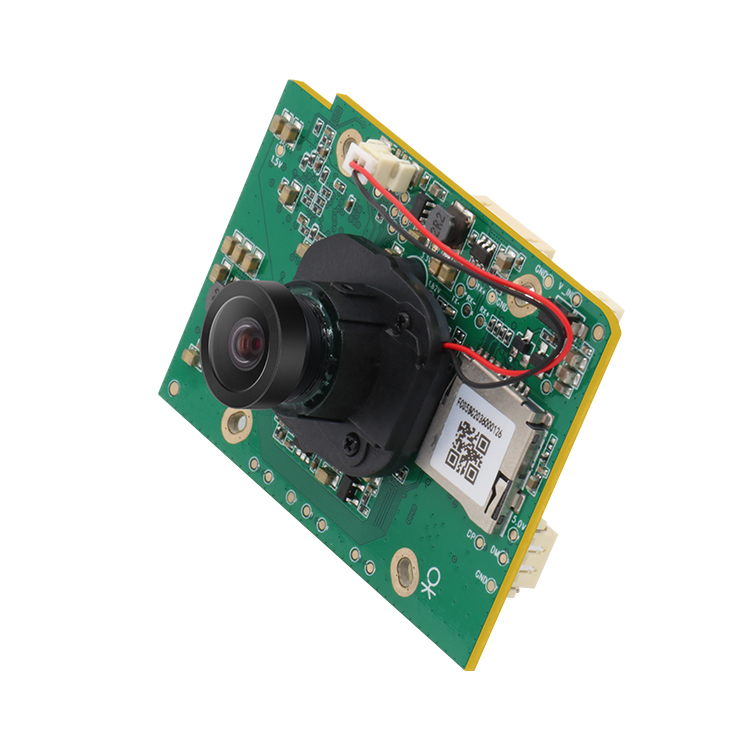

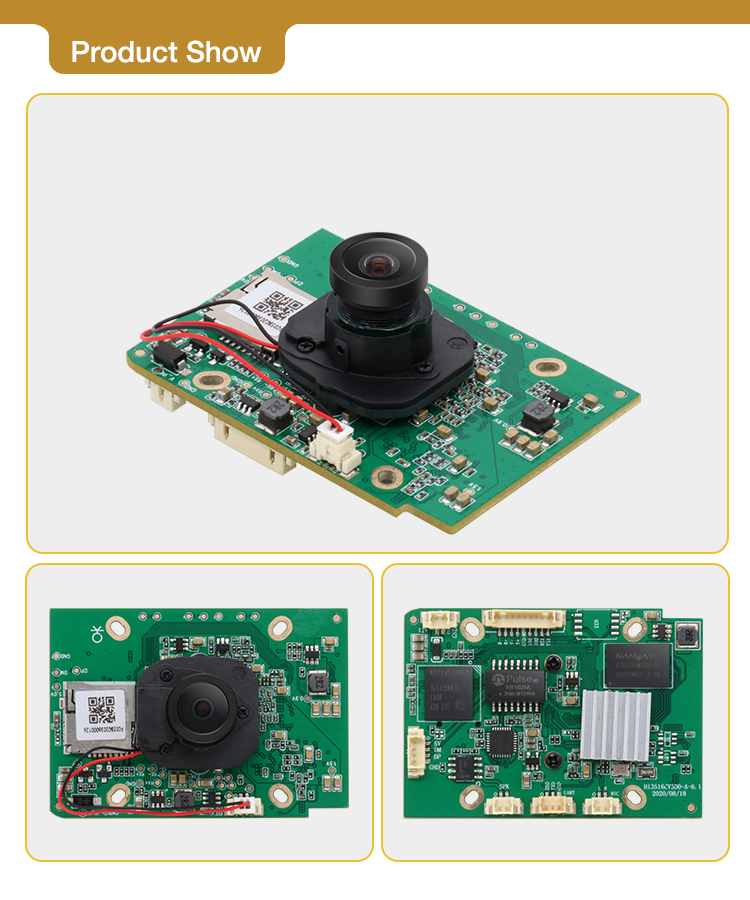

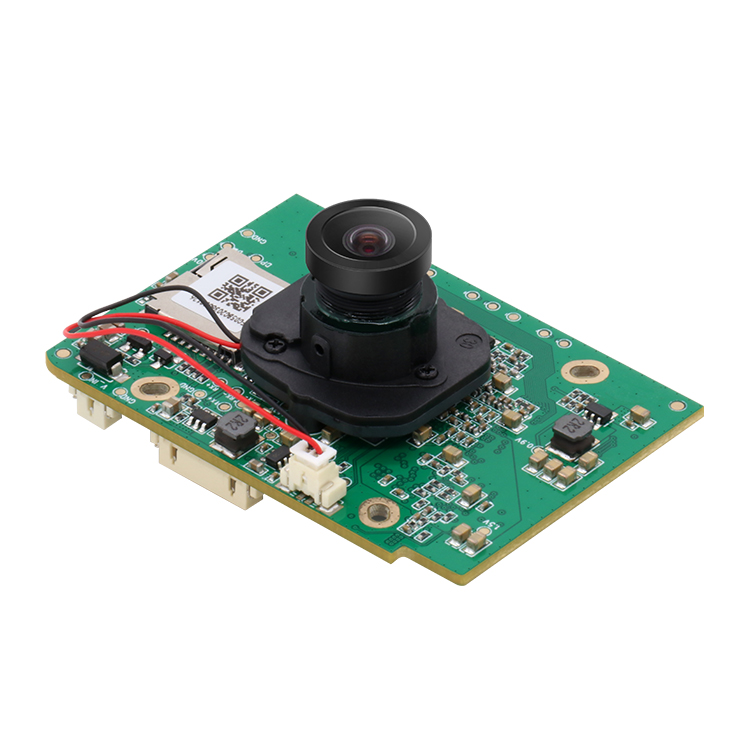

GN-CYI220 is a 2 megapixel resolution intelligent camera module which to meet the needs of AI users for image recognition.The camera module is in 1080P 30fps,it’s strong ISP neural network unit addition enables it to having AI algorithm ability, which could meet the most image scene requirements in different application, it has a balance performance and competitive price,2MP definition of camera module.

Specification

Sensor	IMX307
Sensor Size	1/2.8"
Support Format	H.264/MJPG/YUV
Resolution	1080P
Pixel Size	2.9*2.9μm
Focusing	FF
Dynamic Range	30.3dB-72dB
Connector	USB 2.0、SDIO、LCD、UART
Adjustable	Brightness,contrast,saturation, color,gamma,gain,white
Auto Control	Balance,exposure,backlight co
Algorithm Pre-set	Face and human detection
Lens	FOV ：D=148° mount ：M12*P0.5
Power&Dimension	DC12V，40*40mm
Main Chips	DSP/SENSOR/FLASH/DDR
Storage	SD card
Operation	0C° to 60°C
Support Systems	WINXP/WIN7/WIN8/WIN10/Android

Key Features

1.Adopt 1/2.8” advance Sony CMOS sensor;

2.Support face recognition and human detection;

3.Support WDR,could adjust strong sunlight and compensation under backlight;

4.0.5T Neural network acceleration engine;

5.Support audio codec;

6.Support dual operating system, customized SDK
