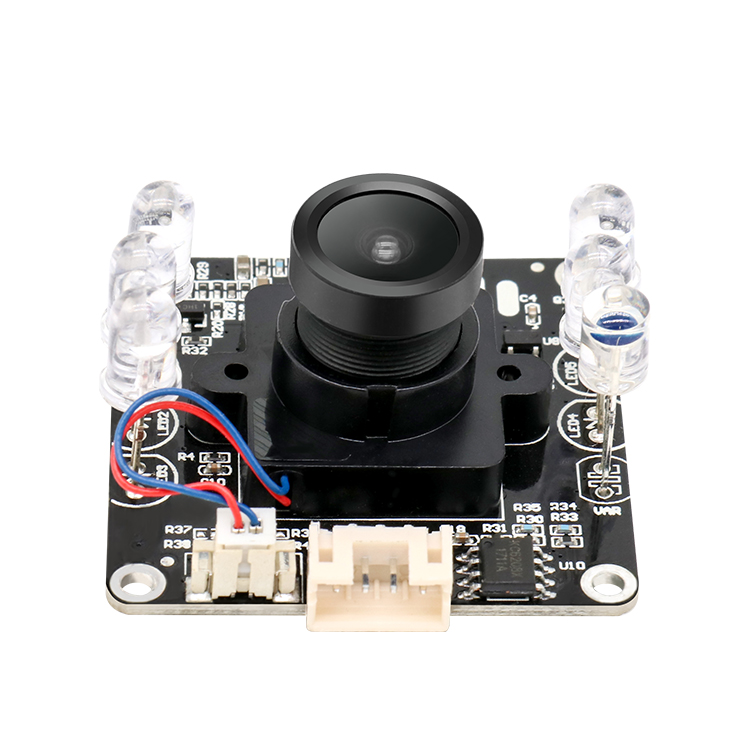

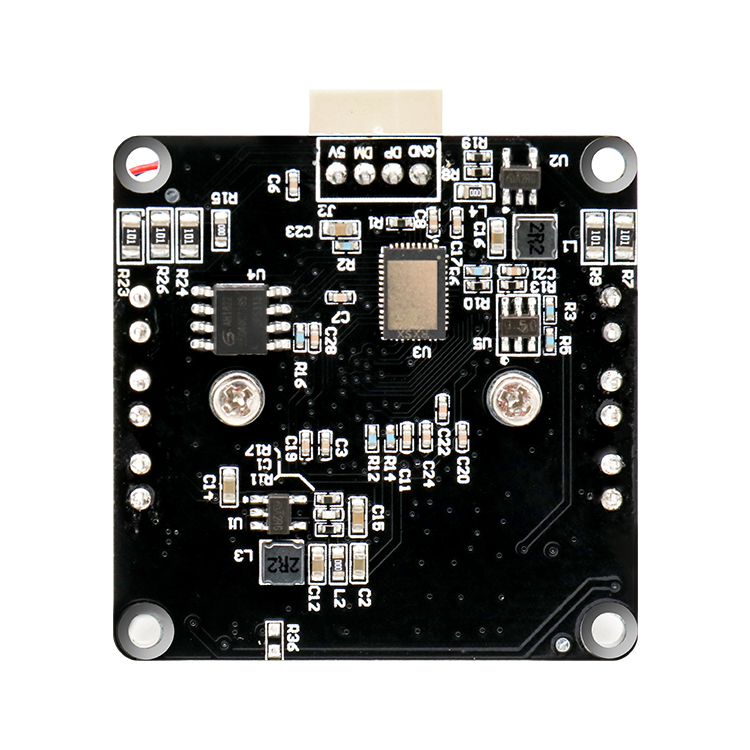

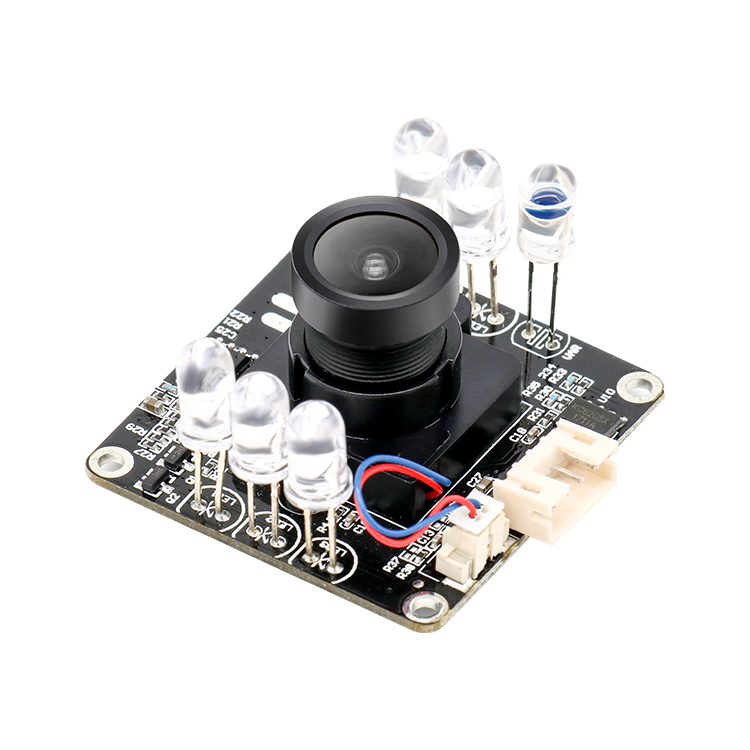

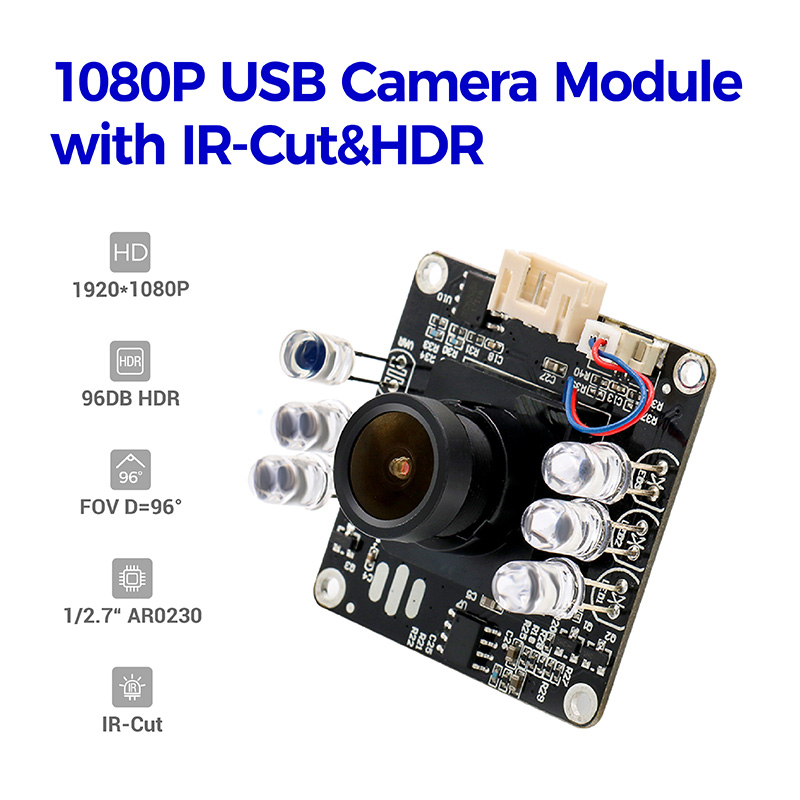

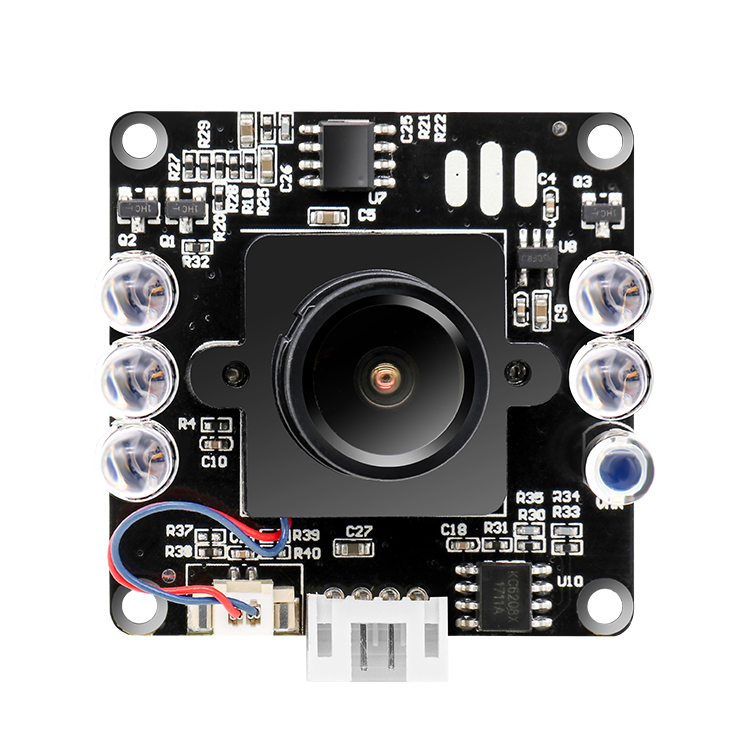

    1080P USB Camera Module with IR-Cut
    Share this page
    US $18.81 - US $25.74
    US $19.00 - US $26.00
    Production Lead Time:
    7 day(s)
    Shipping Method:
    FOB SZ
    Model No.:
    03-0606
    Resolution:
    1920×1080
    Size:
    38*38MM
    Sensor:
    1/2.7" AR0230
    Dynamic Range:
    96dB
    FOV:
    D=96° H=85°
    Description
    Contact Supplier
    Description

    Product Description

    Hampo 003-0606 is a 1080P full HD USB 2.0 camera module featuring on Wide Dynamic Range (WDR) and night vision IR-Cut(which could auto switch day and night modes), widely used for security camera, access control system, face recognition system etc.


    The camera is based on 1/2.7" AR0230 CMOS image sensor with advance 3.0µm pixel BSI technology from ON Semiconductor. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement.The max wide dynamic range up to 96dB.
    Key Features

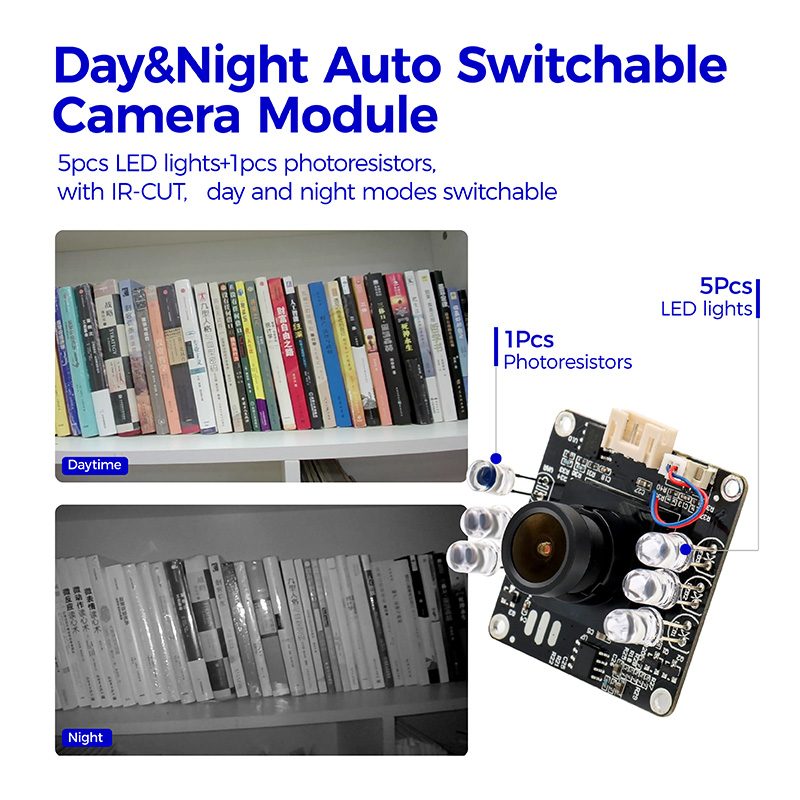

    Day/Night Vision: Embedded removable IR-CUT filter, eliminating color distortion in the daylight. In night mode, the inside filter will remove, hence allowing unnatural lights (ie.,Infrared) enter into image sensor to enhance low illumination performance. In day mode, the inside filter will be inserted between lens and image sensor to filter unnatural lights enter into image sensor, therefore to provide true color reproduction crisp images. 1080P HD Resolution: High precision and high quality pictures! The camera captures your clips in true 1080p, and 30 frames per second,high pixel technology for sharp image and accurate color reproduction.
                                                                                                                                                                                                                               1/2.7" AR0230 Image Sensor: Adopting Aptina AR0230 CMOS sensor, feature at wide dynamic range and high quality image under the backlight.The max dynamic range up to 96dB. Plug&Play: Support Windows XP/7/8/10, Linux, Mac OS and Andriod device with UVC, just connect the camera to PC, laptop with the USB cable without extra drivers to be installed.

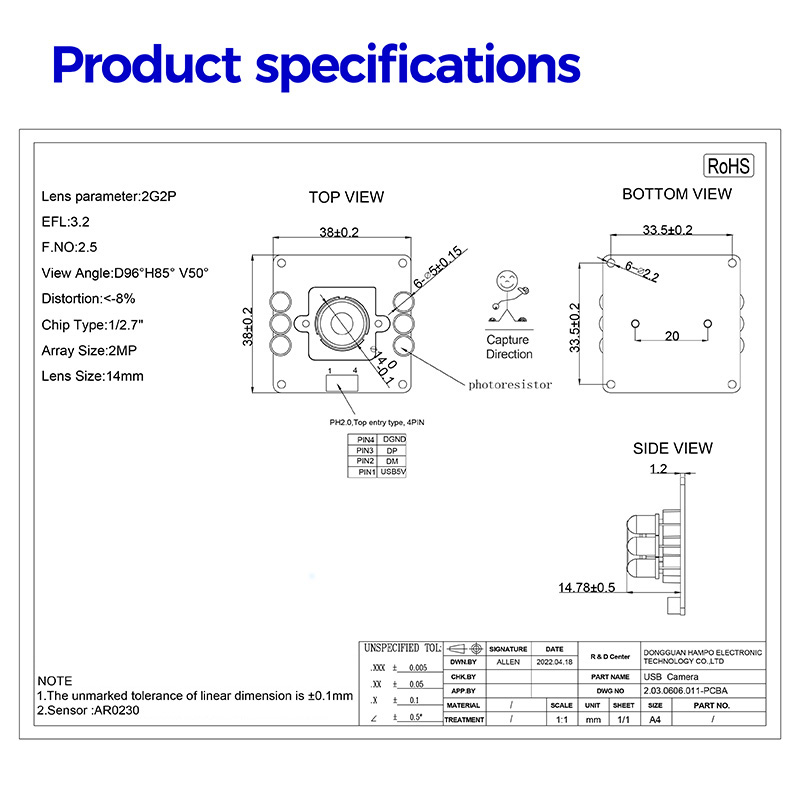

    Specification
    Camera
    Model No.
    003-0606
    Max Resolution
    1920*1080P
    Sensor
    1/2.7" AR0230
    Pixel Size
    3.0μm*3.0μm
    IR Cut filter
    650nm & 850nm
    Shutter Type
    Electronic rolling shutter
    Dynamic Range
    96dB
    Focus
    Fixed focus
    FOV
    D=96° H=85°
    Lens Mount
    M12 * P0.5mm
    Interface
    USB2.0
    PCB Size
    38*38MM(Hole pitch compatible with 33.5x33.5mm)
    TTL
    14.78MM
    System Compatibility
    Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
    Applications
    Iris recorganization
    Gesture recognition machine vision
    3D printer  camera solutions
    Video technology solutions
    Industrial infrared imagers
    Digital cameras
    DV PDA/handheld devices
    Smart
    Security cameras
    Car cameras
    Embedded Systems solutions
    Face recognition
