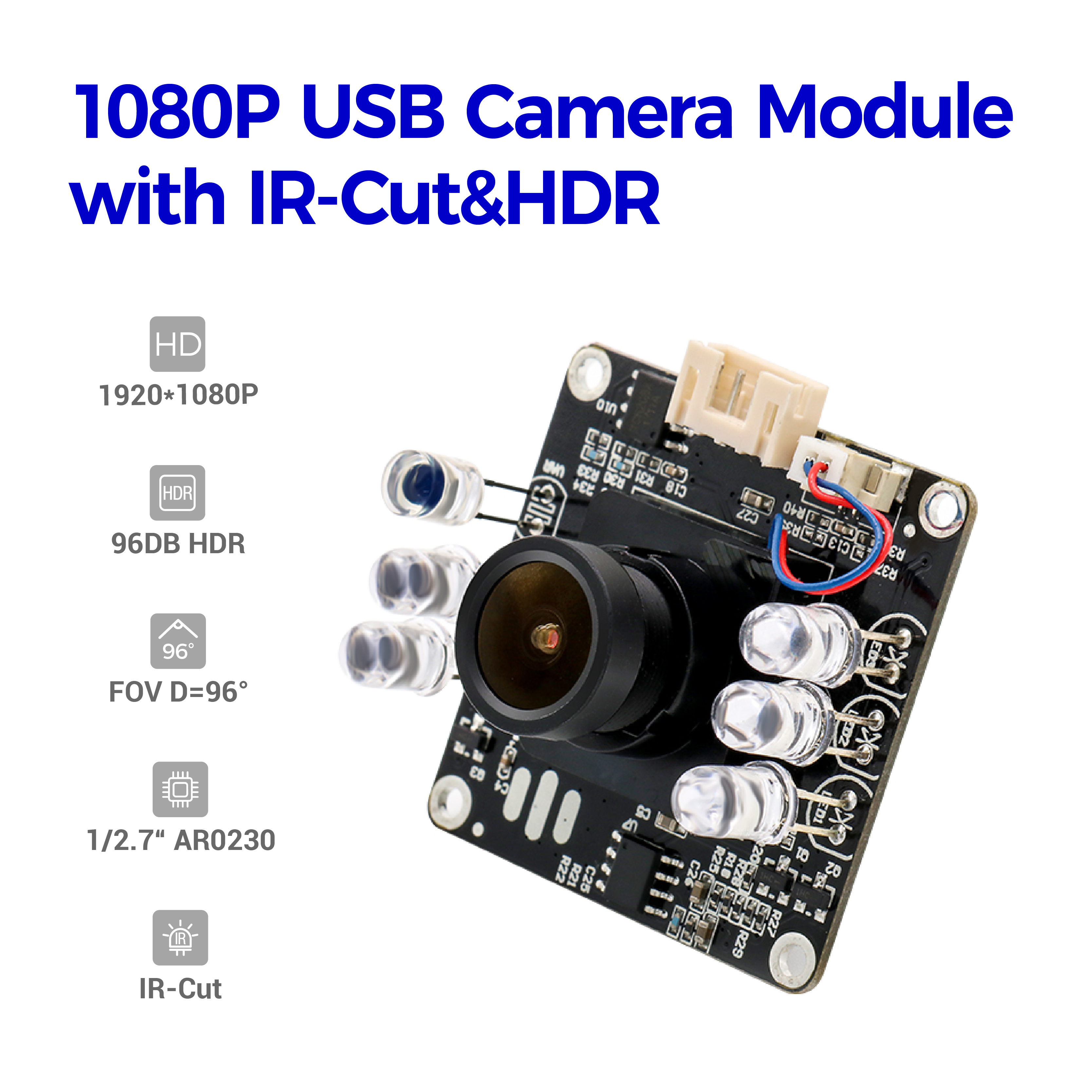

1080P USB Camera Module with IR-Cut & HDR

US $26.60 - US $32.30

US $28.00 - US $34.00

Production Lead Time:

5 day(s)

Shipping Method:

express delivery

Customised:

Yes

Model No.:

HAMPO-003-0606

Size:

38*38mm

Application:

Windows XP(SP2,SP3)/Vista/7/8/10/11, Linux or OS with UVC driver.

Sensor Size:

1/2.7"

Frame rate:

30fps

FOV:

96°

Function:

Built-in Mic

Focusing:

Fixed Focus

Resolution:

1920*1080P

Description

Contact Supplier

Product Description

003-0606, is a type of 1080P Full HD USB 2.0 camera module featuring Wide Dynamic Range (WDR) and night vision IR-Cut, widely used for security camera, access control system, face recognition system etc.

The WDR scheme used is multi−exposure WDR. This allows the sensor to handle up to 96 dB of dynamic range.

Key Features

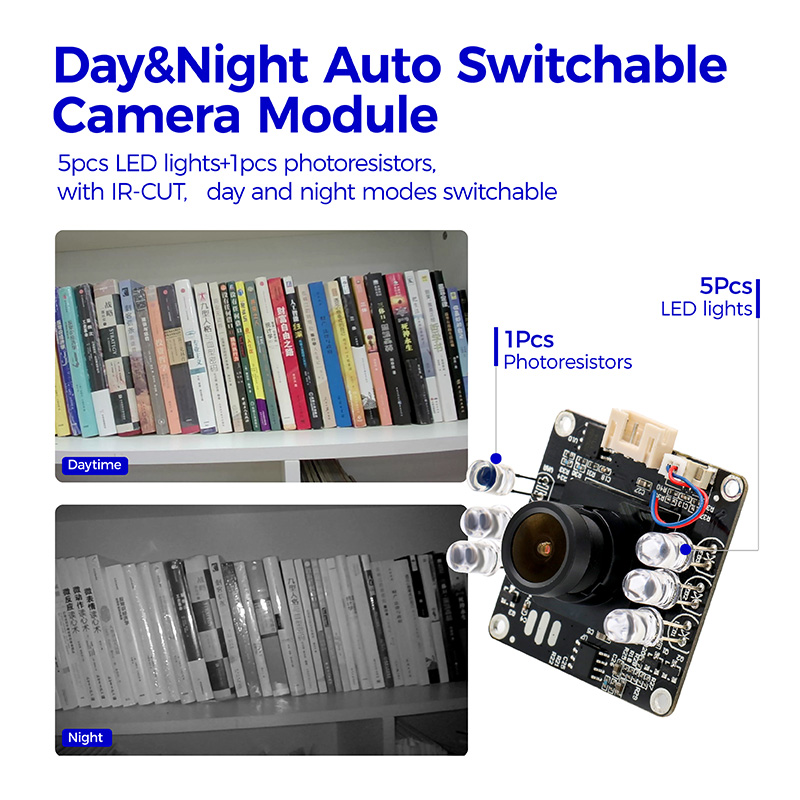

Day & Night Vision Auto Switch

The motorized (switchable) IR-CUT filter and infrared LED can be triggered by the photo resistor according to the light environment to be ON/OFF to block or pass the infrared light.This day&night vision and WDR camera is based on 1/2.7" AR0230 CMOS image sensor with advance 3.0µm pixel BSI technology from ON Semiconductor. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement.

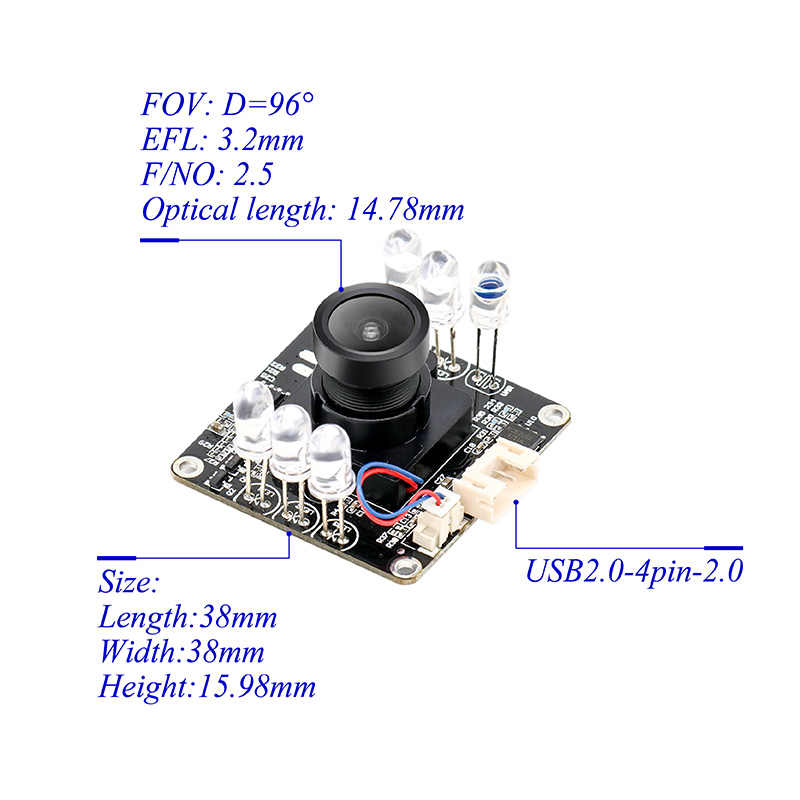

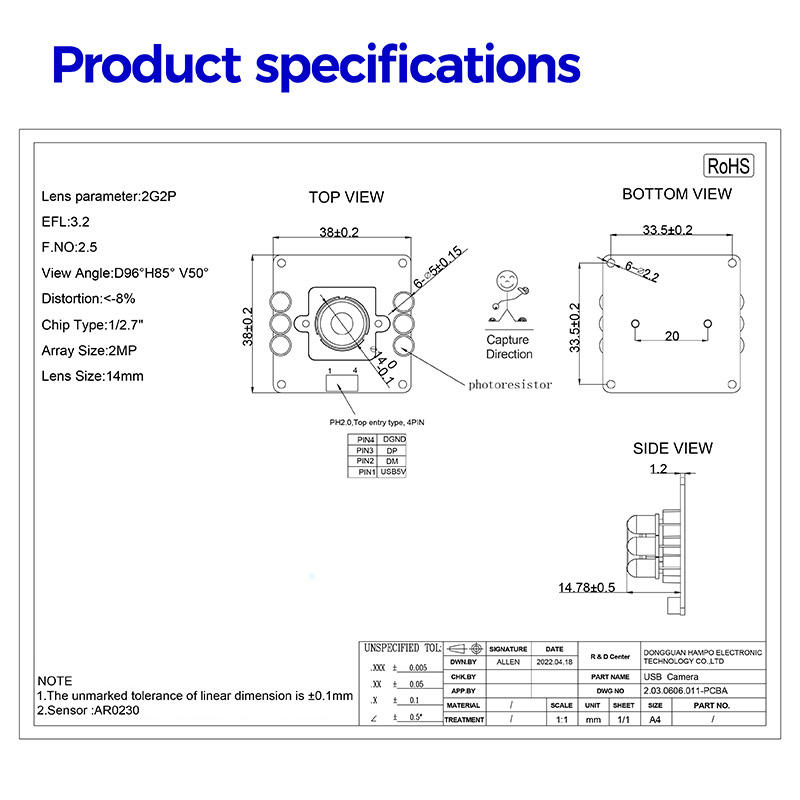

Specification

Sensor: AR0230
Sensor Size: 1/2.7"
Resolution: 1920*1080
Output: MJPC/YUV
Focus: Fixed Focus
Frame Rate: 30fps
Wide dynamic range: 96DB
Systems capability: Supported Windows XP(SP2, SP3)/Vista7/8/10, Linux, or OS with UVC driver

Company Profile

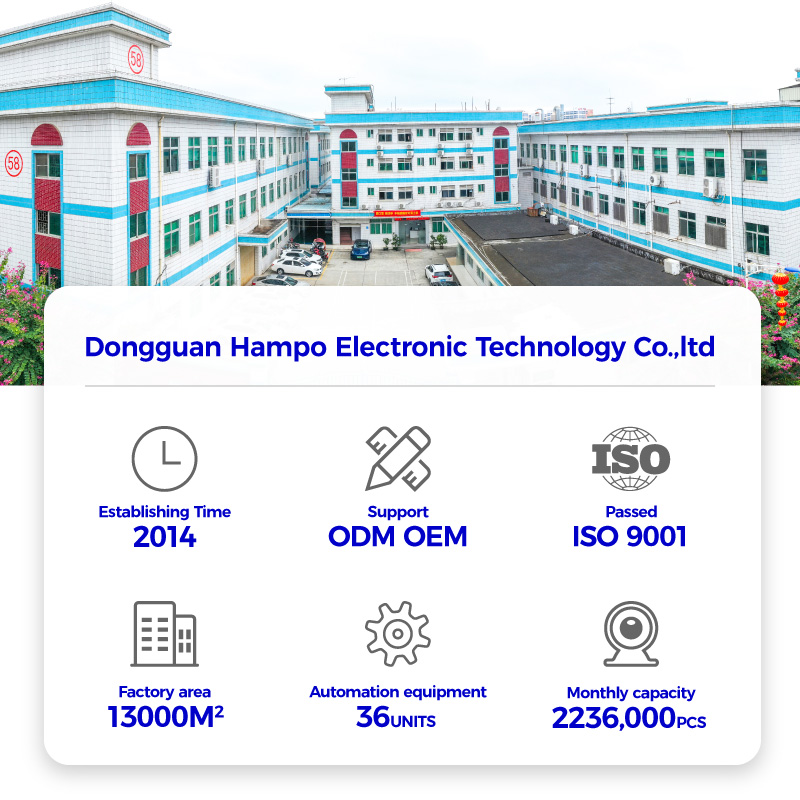

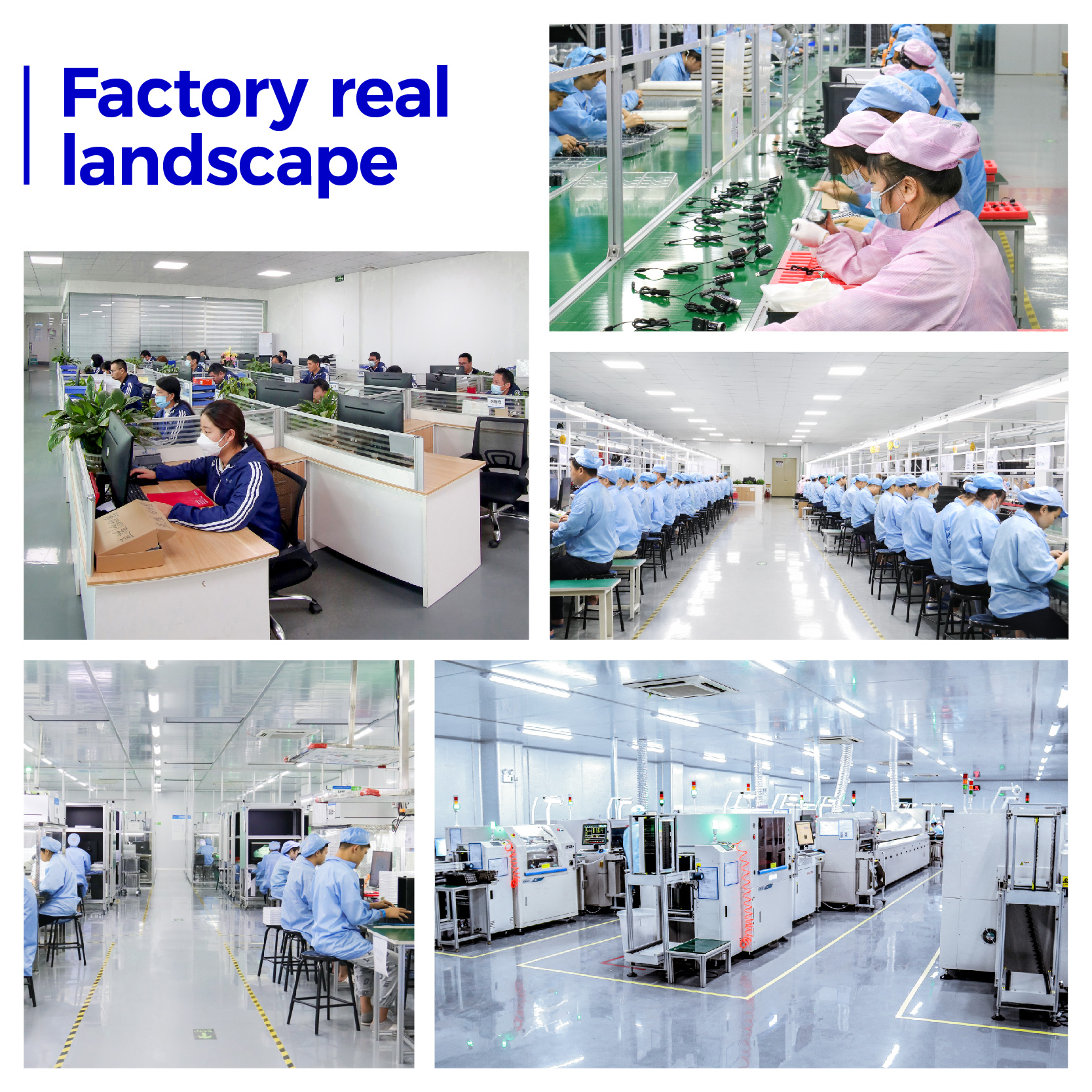

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
