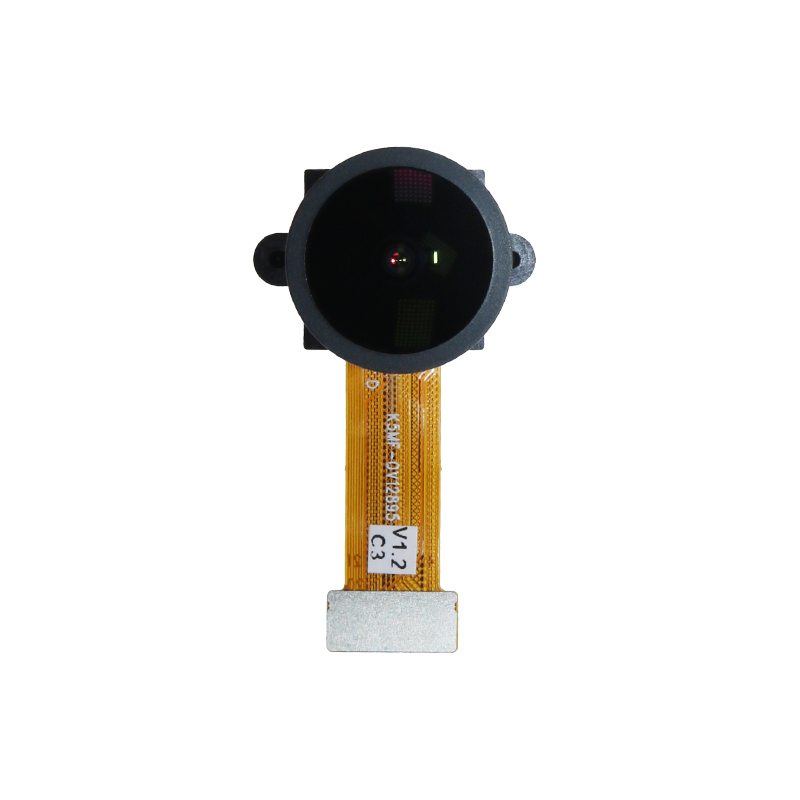

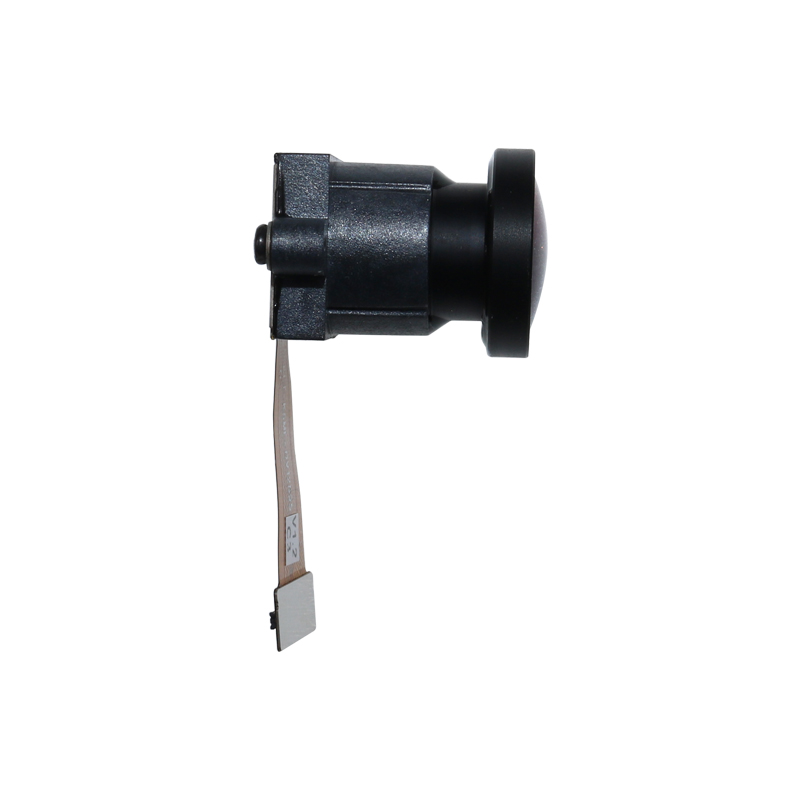

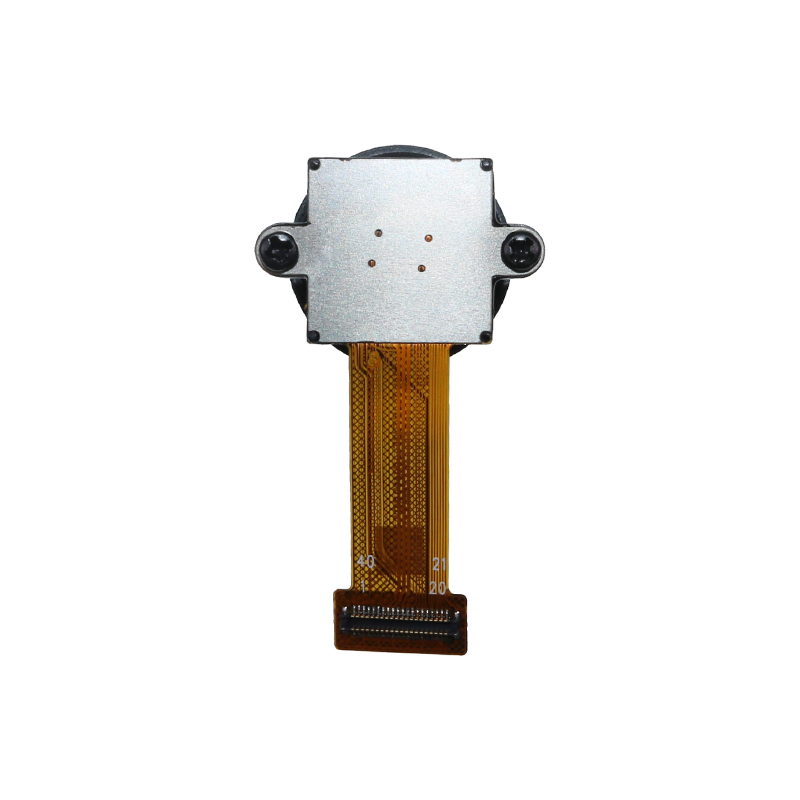

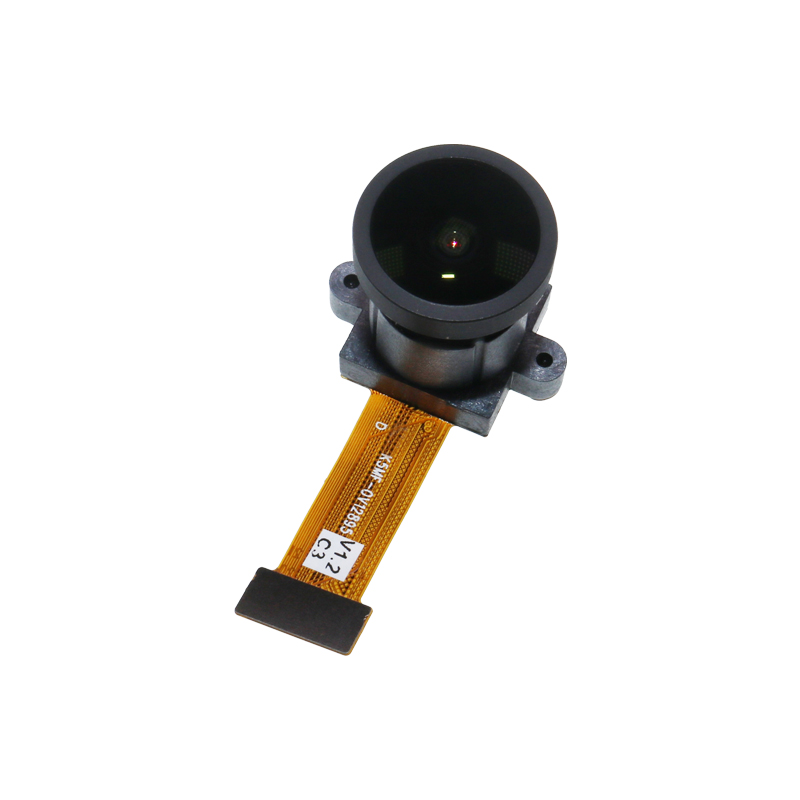

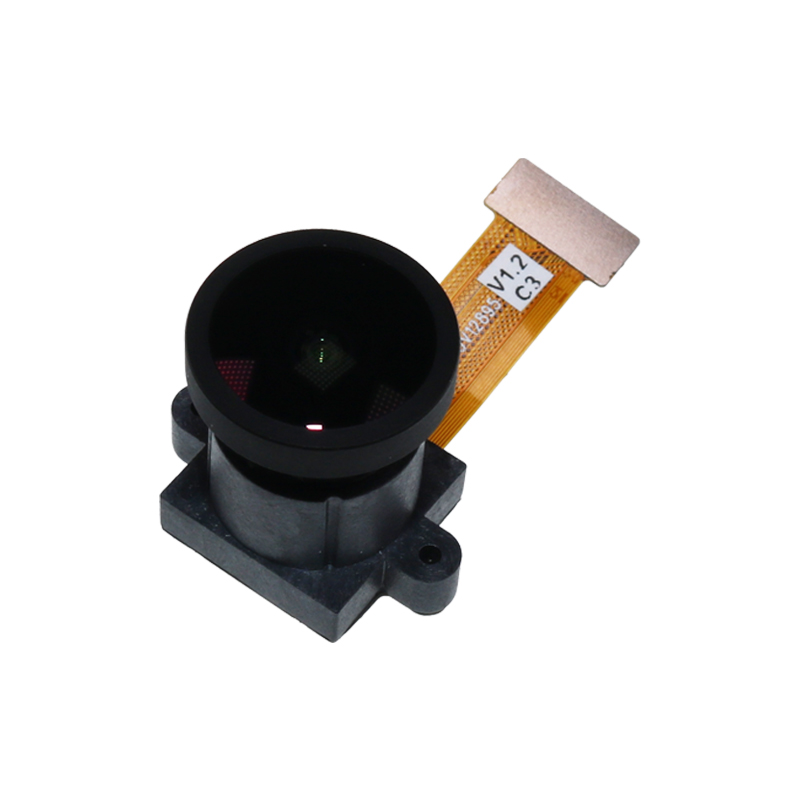

12MP OmniVision OV12895 MIPI Interface M12 Fixed Focus Camera Module

US $33.25 - US $37.05

US $35.00 - US $39.00

Production Lead Time:

7 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-K5MF-OV12895 V1.2

Image Sensor:

OV12895

View Angle:

160°(DFOV)

Focusing:

Resolution:

12MP

Module Size:

40.04 x 23.00mm

Interface:

MIPI

Description

Contact Supplier

Product Description

HAMPO-K5MF-OV12895 V1.2 is a 12Megapixel Mipi interface camera module, adopting OV12895 image sensor, which could captures ultra-high-resolution 4K2K video at 60 frames per second (fps) and full high-definition (FHD) 1080p videos at 240 fps with full field of view, enabling high-quality slow-motion video capture.

Specification

Camera Module No.	HAMPO-K5MF-OV12895 V1.2
Resolution	12MP
Image Sensor	OV12895
Sensor Size	1/2.3"
Pixel Size	1.55 um x 1.55 um
EFL	3.0 mm
F/No.	2.4
Pixel	4096 x 3072
View Angle	160.0°(DFOV) 125.0°(HFOV) 92.0°(VFOV)
Lens Dimensions	14.80 x 14.80 x 21.82 mm
Module Size	40.04 x 23.00 mm
Focusing	Fixed Focus
Interface	MIPI
Auto Focus VCM Driver IC	NONE
Lens Type	650nm IR Cut
Operating Temperature	-20°C to +85°C

Key Features
1.55 µm x 1.55 µm pixel
optical size of 1/2.3"
5° CRA
enhanced dual camera support
high-speed architecture for
fast frames per second (fps)
programmable controls for:
- gain
- exposure
- frame rate
- image size
- horizontal mirror
- vertical flip
- cropping
- panning
- windowing
support for image sizes:
- 12MP (4096x3072)
- 4K2K (3840x2160)
- 1080p (1920x1080), and more
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
