1MP OV9714 Fixed Focus DVP Camera Module

US $14.25 - US $16.15

US $15.00 - US $17.00

Production Lead Time:

7 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-K3MF-OV9714 V1.1

Image Sensor:

OV9714

View Angle:

68.7°(DFOV)

Focusing:

Resolution:

1MP

Module Size:

66.00 x 11.00 mm

Interface:

MIPI

Description

Contact Supplier

Product Description

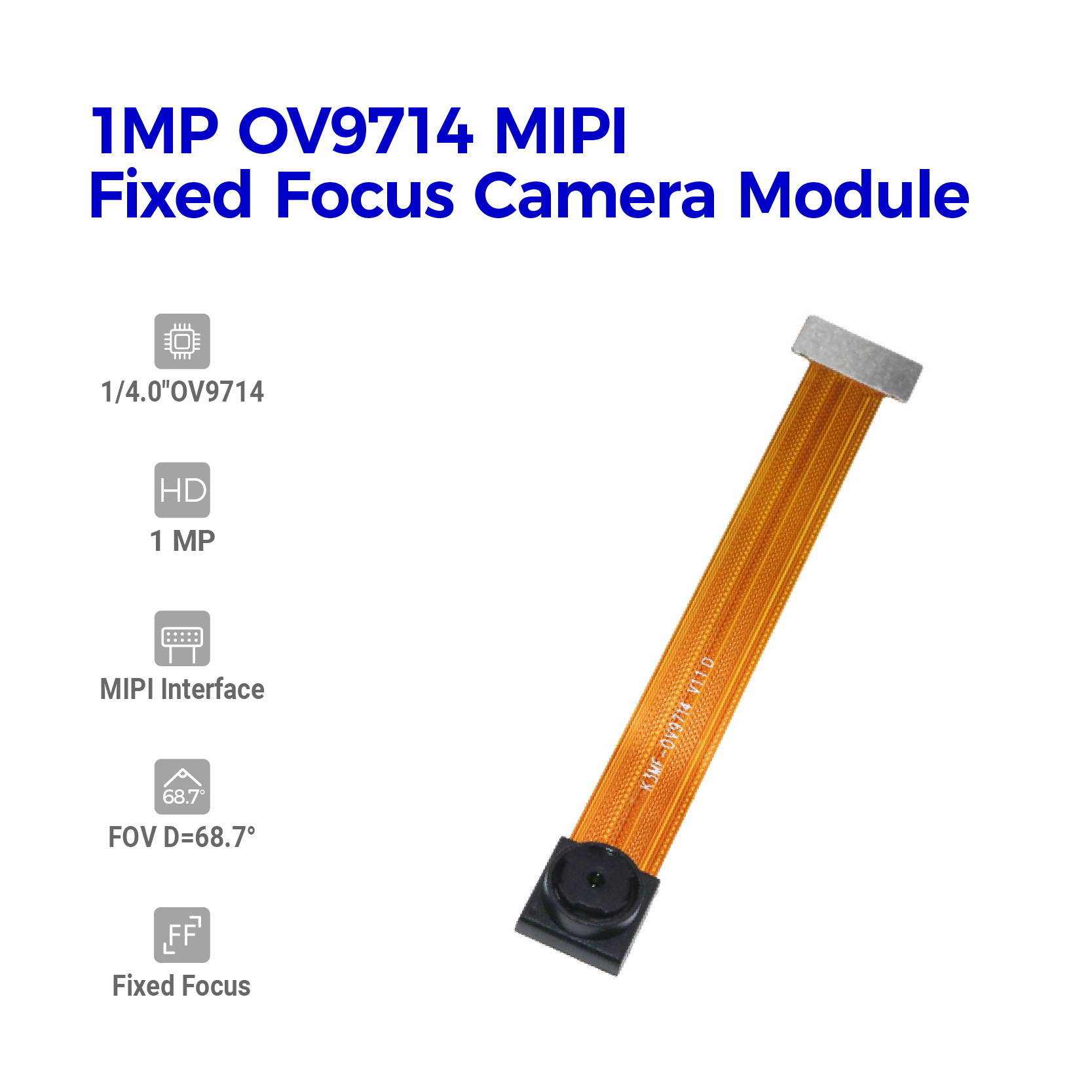

HAMPO-K3MF-OV9714 V1.1 is a 1MP OmniVision OV9714 MIPI Interface Fixed Focus Camera Module.It uses Narrow pitch connectors (0.4mm pitch).

APPLICATIONS :Recommended for board-to-FPC connections of mobile equipment, such as cellular phones, smart phones, laptops, and portable music players.

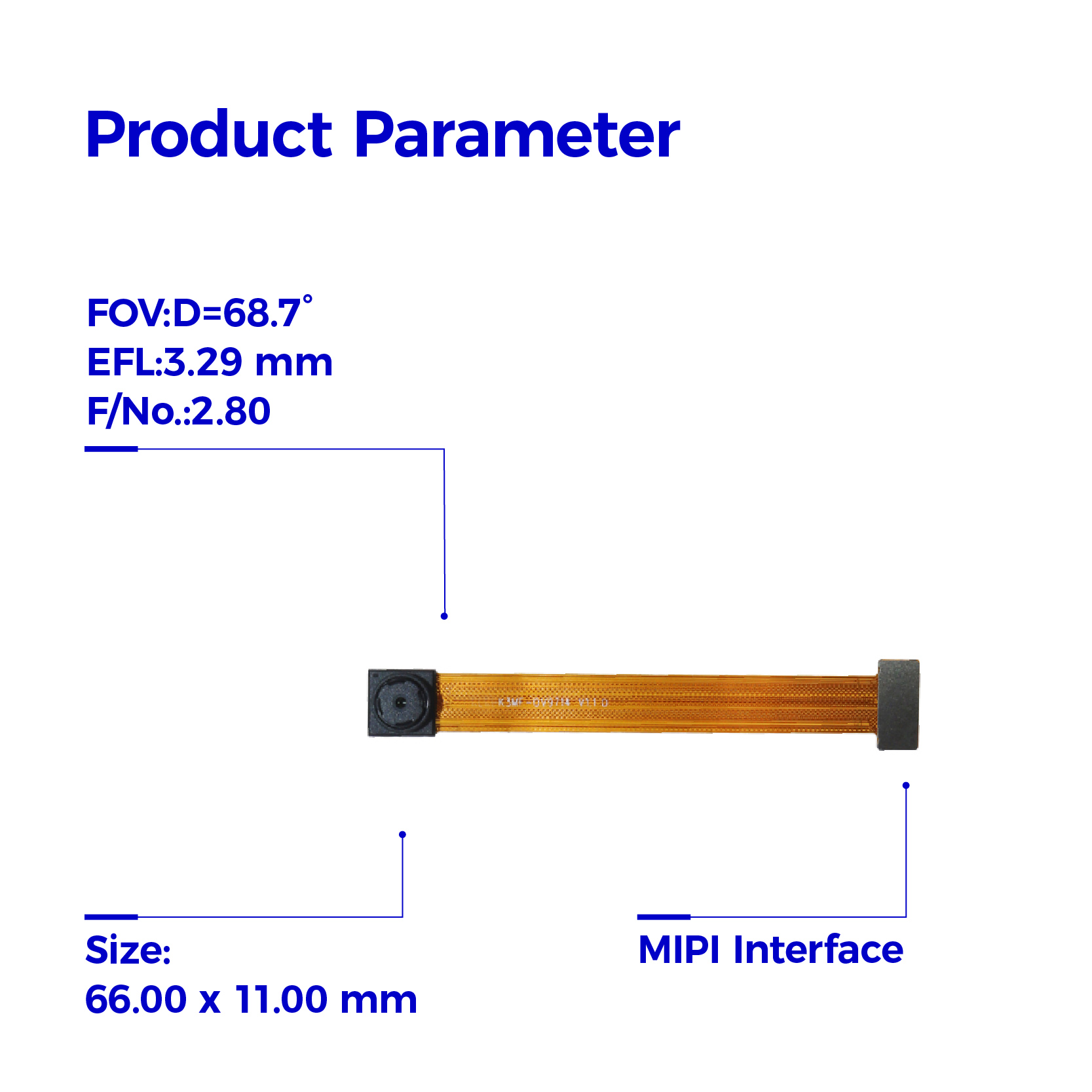

Specification

Camera Module No.	HAMPO-K3MF-OV9714 V1.1
Resolution	1MP
Image Sensor	OV9714
Sensor Type	1/4"
EFL	3.29 mm
F.NO	2.80
Pixel	1296 x 816
View Angle	68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
Lens Dimensions	8.00 x 8.00 x 4.97 mm
Module Size	66.00 x 11.00 mm
Module Type	Fixed Focus
Interface	MIPI
Auto Focus VCM Driver IC	None
Operating Temperature	-30°C to +85°C
Mating Connector	AXE540124

Key Features
*automatic black level calibration (ABLC)

*programmable controls for frame rate, mirror and flip, cropping and windowing

*image quality controls: lens correction and defective pixel canceling

*supports output formats: 8/10/12-bit RAW RGB (MIPI/LVDS)

*supports horizontal and vertical sub-sampling

*supports images sizes: 1280x800, 640x400, 320x200, and 160x100

*fast mode switching
