2MP Sensor AR0237 RGB-IR HiSPi Camera Module

US $19.00 - US $20.90

US $20.00 - US $22.00

Production Lead Time:

7 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-H1K-AR0237 V2.0

Image Sensor:

AR0237

View Angle:

153°(DFOV)

Focusing:

Fixed Focus

Resolution:

2MP

Module Size:

50.00 x 21.50 mm

Interface:

MIPI

Description

Contact Supplier

Product Description

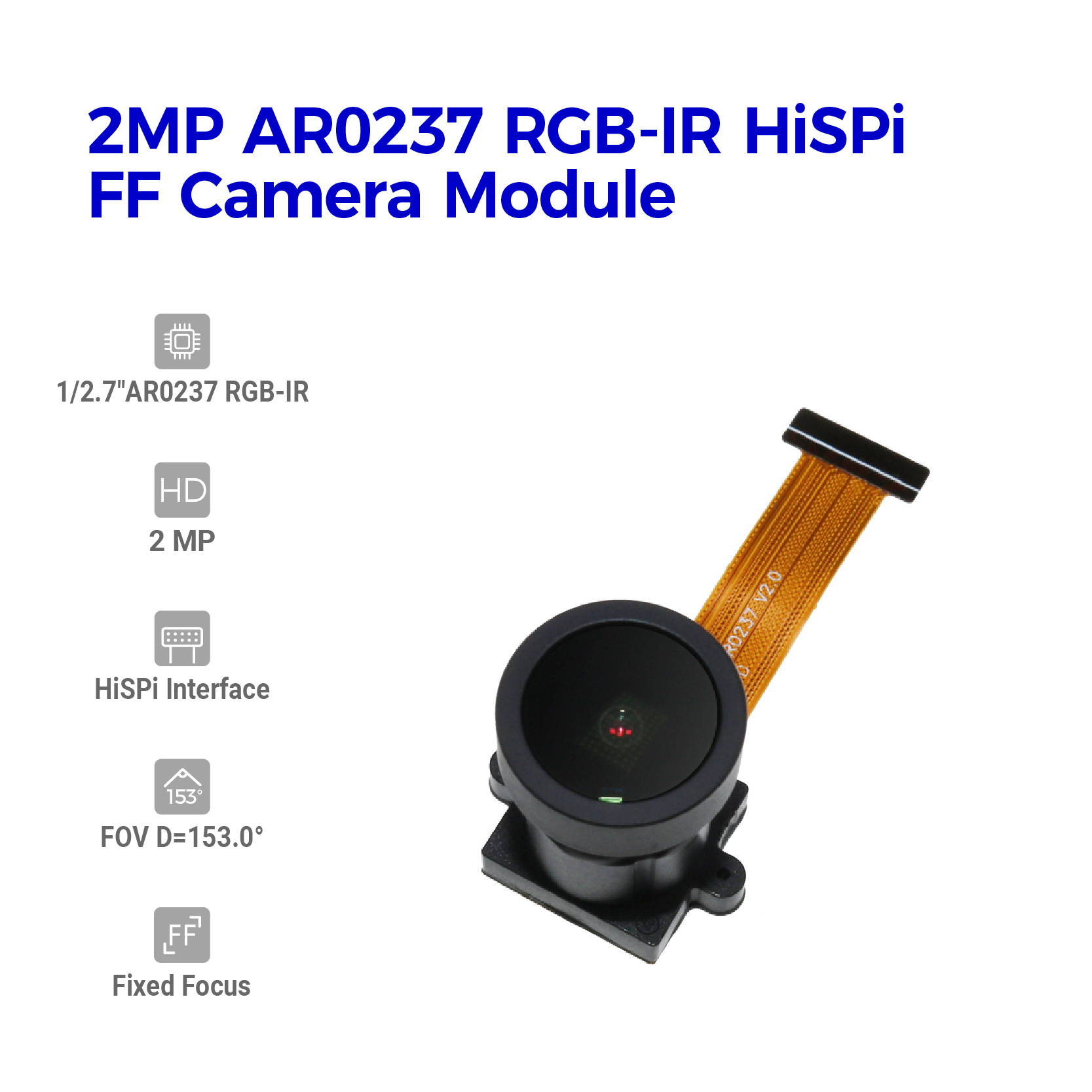

HAMPO-H1K-AR0237 V2.0 is a 2MP OnSemi AR0237 RGB-IR HiSPi Interface M12 Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.

APPLICATIONS :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.

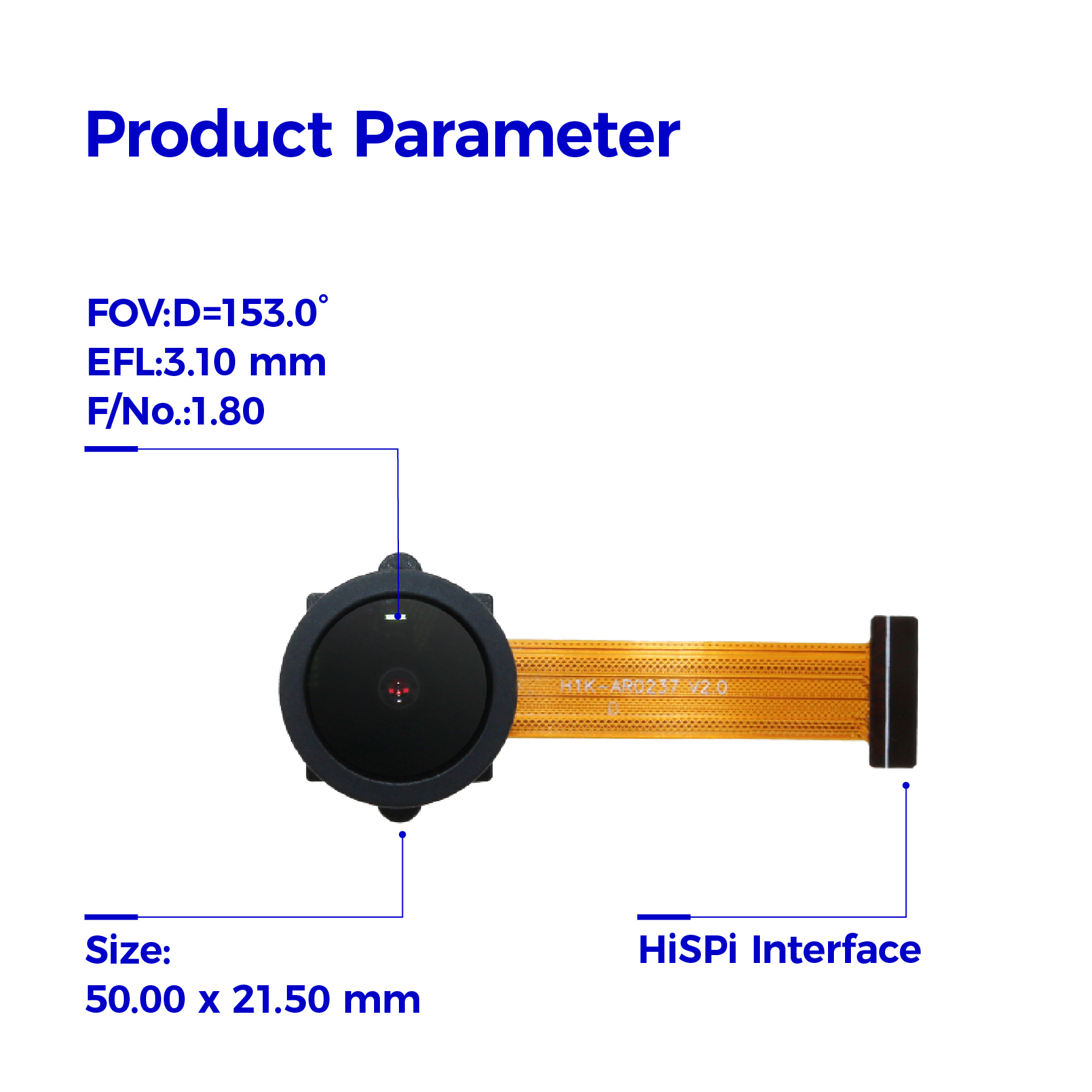

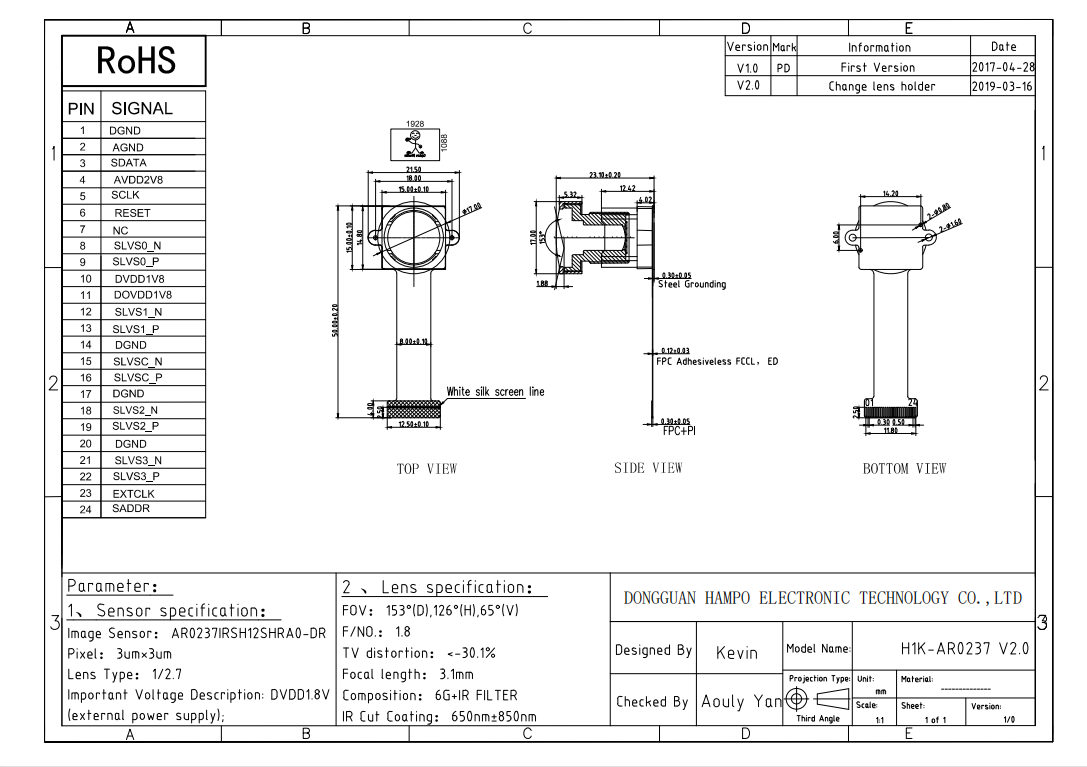

Specification

Camera Module No.	HAMPO-H1K-AR0237 V2.0
Resolution	2MP
Image Sensor	AR0237 RGB-IR
Sensor Type	1/2.7"
Pixel Size	3.0 um x 3.0 um
EFL	3.10 mm
F.NO	1.80
Pixel	1928 x 1088
View Angle	153.0°(DFOV) 126.0°(HFOV) 65.0°(VFOV)
Lens Dimensions	15.00 x 15.00 x 23.10 mm
Module Size	50.00 x 21.50 mm
Module Type	Fixed Focus
Interface	HiSPi
Auto Focus VCM Driver IC	None
Operating Temperature	-30°C to +85°C
Mating Connector	FH12-24S-0.5SH

Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
