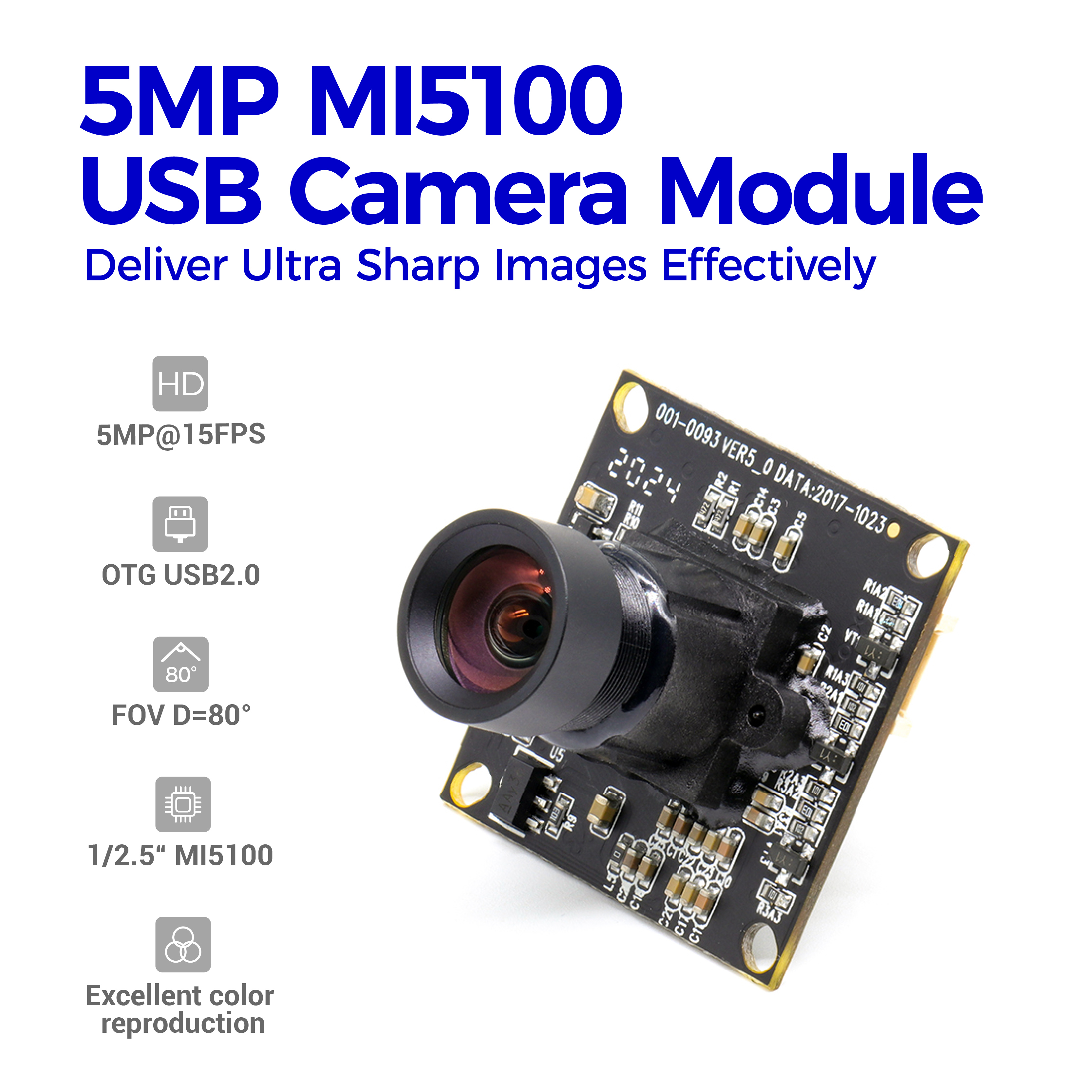

5MP MI5100 USB Camera Module

US $27.55 - US $30.40

US $29.00 - US $32.00

Production Lead Time:

5 day(s)

Shipping Method:

express delivery

Model Number:

003-0093

Video Compression Format:

H.264

Sensor:

CMOS, MI5100

Function:

Abnormal sound detection, Built-in Mic, NIGHT VISION

Keyword:

DVP CAMERA MODULE

Resolution:

Customized support::

Customized logo, Software reengineering, OEM, ODM

Description

Contact Supplier

Product Description

Model	003-0093
Max Resolution	2592*1944
Sensor Size	1/2.5"
Pixel Size	2.2μm*2.2μm
Wide Dynamic range	70 DB
Output Format	MJPG/YUY2
Focus	Fixed focus
Frame rate	30fps/15fps
Voltage	DC 5V
Working current	MAX 500mA
Interface	USB 2.0
Storage Temperature	-20°C to +70°C
System compatibility	1) Windows XP（SP2,SP3）/Vista/7/8/10 2) Linux or OS with UVC driver
Audio	YES

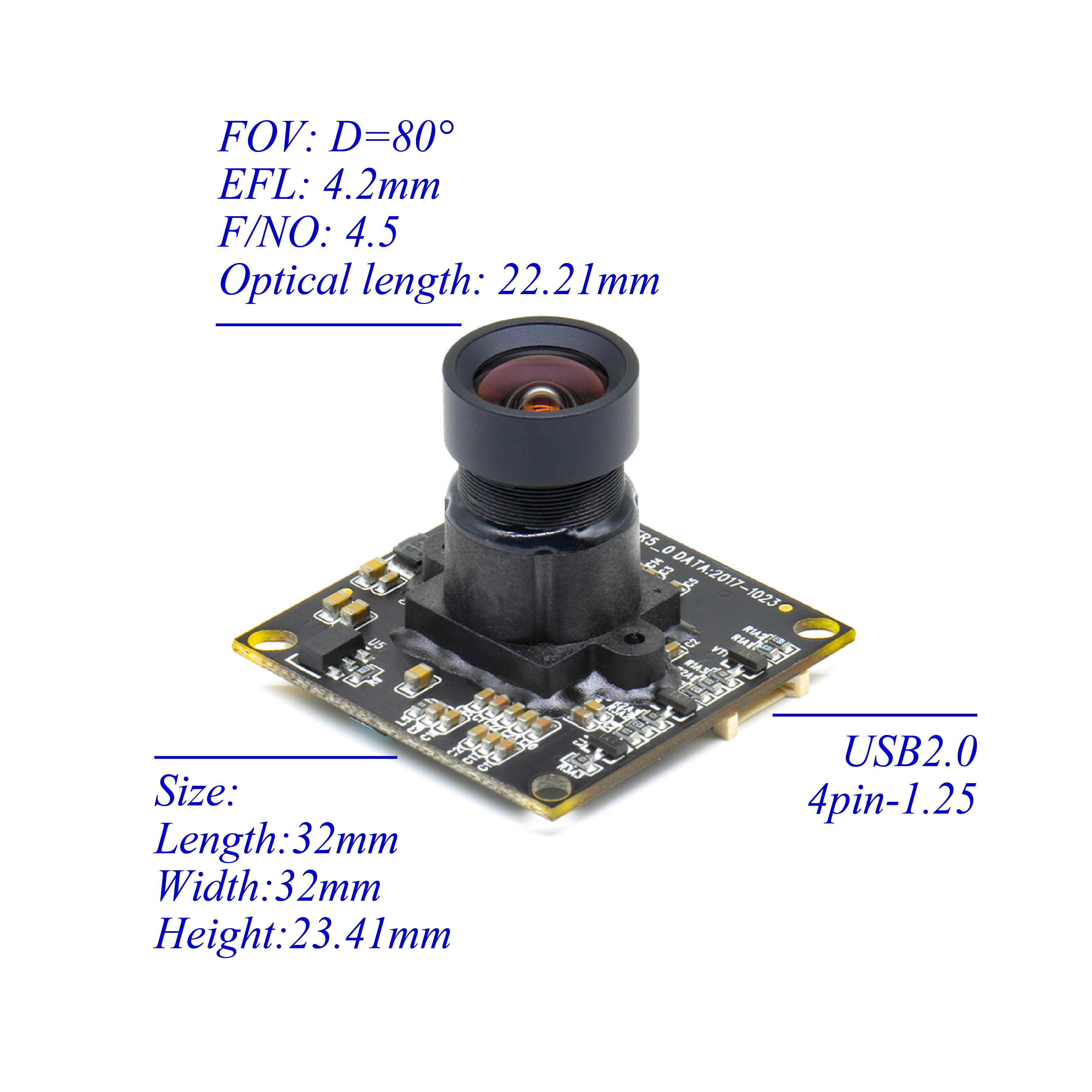

PCBA Size	32*32mm
FOV	D=80°
TTL	22.1mm
Lens construction	2G2P
Thread size	M12*P0.5

003-0093 is a 5MP USB Camera on the based of a large size of sensor MI5100, the max resolution is 2592*1944P.
It is clear enough to detect whether one person's hair follicles are being blocked, then given related solution to deal with the skin problem.
Beside this, it could also detect and judge someone's skin is over oil or dry, healthy or not and so on. It is an indispensable skin detect equipment for cosmetologists.

Key Features

Super Aptina MI5100 Image Sensor

5 megapixel USB camera module adopt high quality Aptina CMOS MI5100 sensor, deliver sharp images effectively. High definition with low color reproduction deviation. Frame rate 2592x1944 at 15fps, 1920x1080 at 30fps.

Big Sensor Size

Adopt a large sensor on 1/2.5" CMOS MI5100, bigger size of sensor, make a better image with less light. A supper clear video image is perfect for beauty, medical equipment.

Lower Color Reproduction Deviation

Camera with High definition and lower Color reproduction deviation produce sharp image and accurate information, super small and thin profile for embedded applications.

Plug&Play

 Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).

Applications

Document scanner, beauty equipment, education products etc.

Wide Compatibility

5MP HD USB camera compatible with Windows Win XP/Vista/Win7/Win8 /Win10, Linux with UVC

Company Introduction

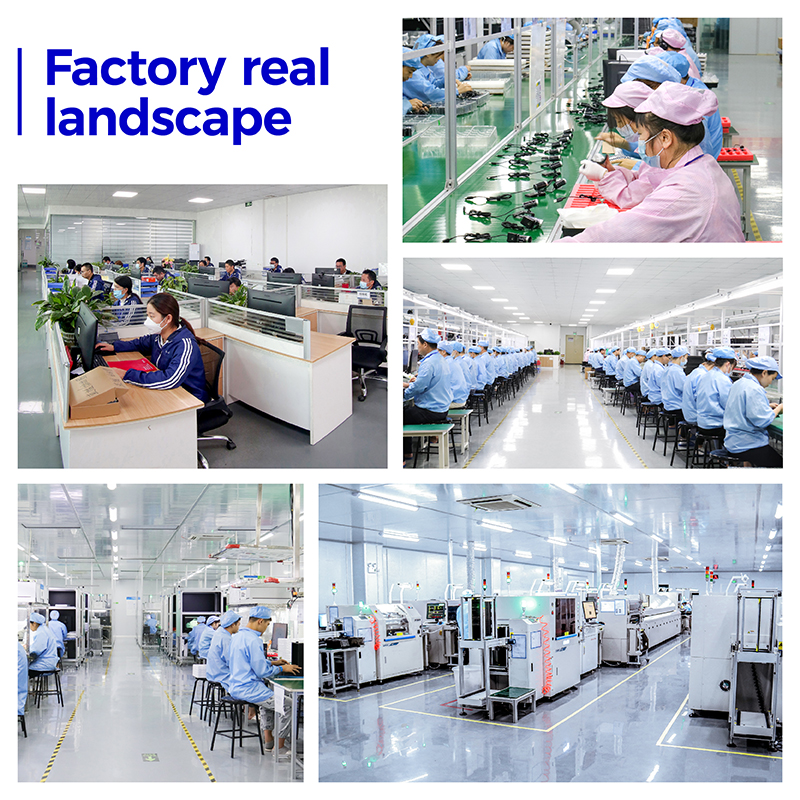

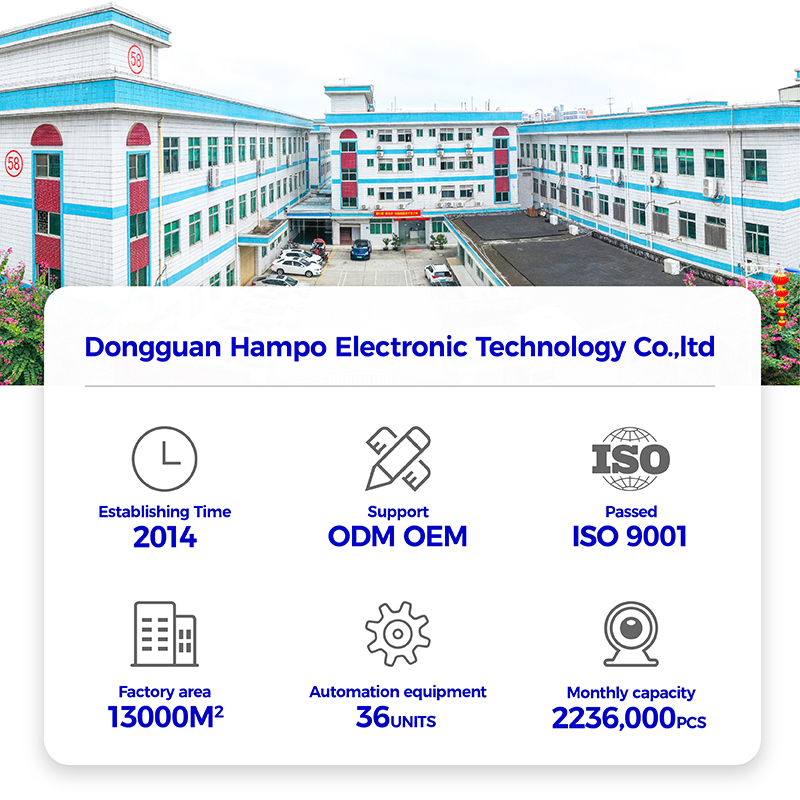

Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Our plant located in Arising Sun Industrial Park in Tangxia, Dongguan.
Currently Hampo has two buildings No.58 and No.26 as production base, covering total13,000 square meters.
We have around 300 of employees, 30% are engineers and technicials.
Our main products:
All kinds of USB video camera modules, MIPI video camera modules and DVP video camera modules; PC camera and video conference camera;
OID devices such as talking pen and smart pen etc.
Children's puzzle electronic products.
 We have served many famous companies such as Midea and A4 tech, and many research institutes.
