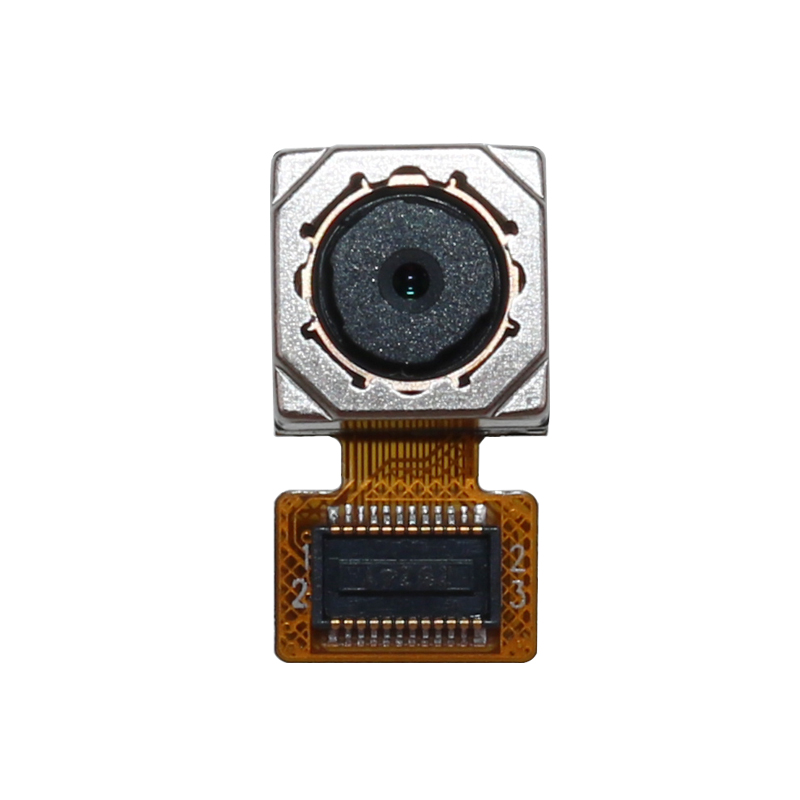

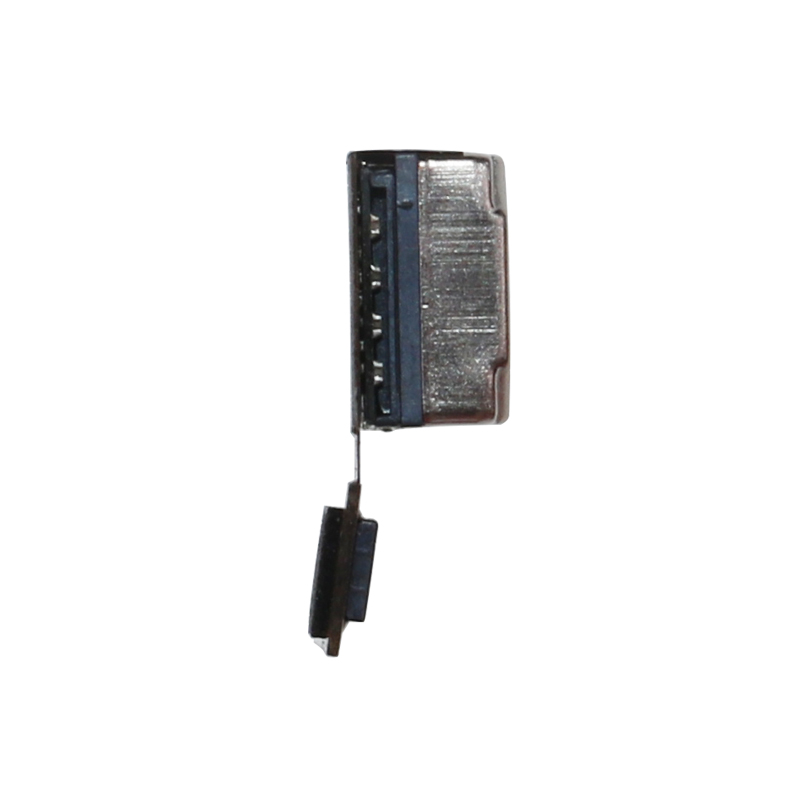

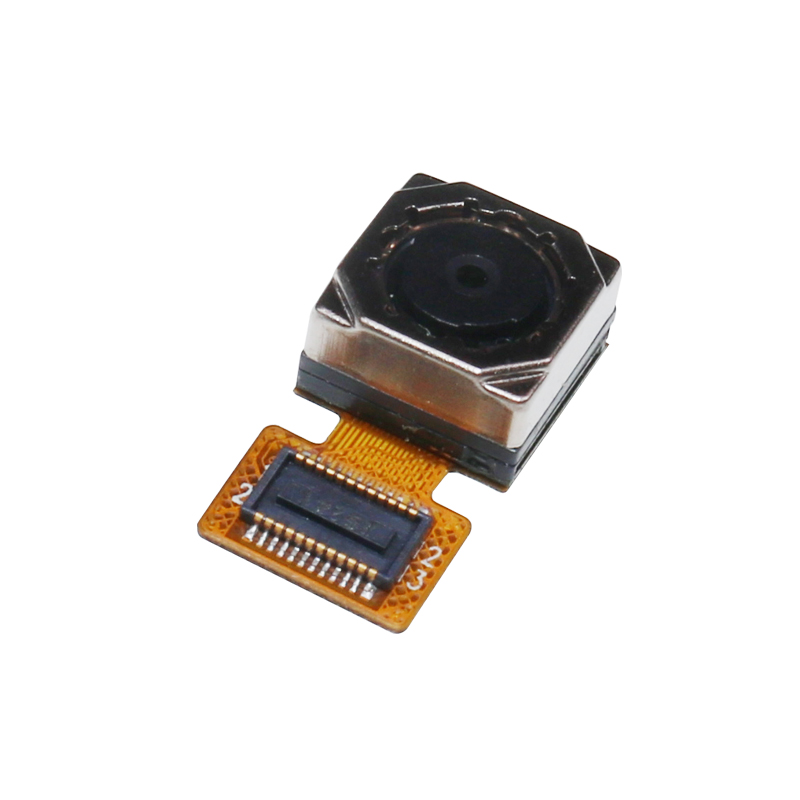

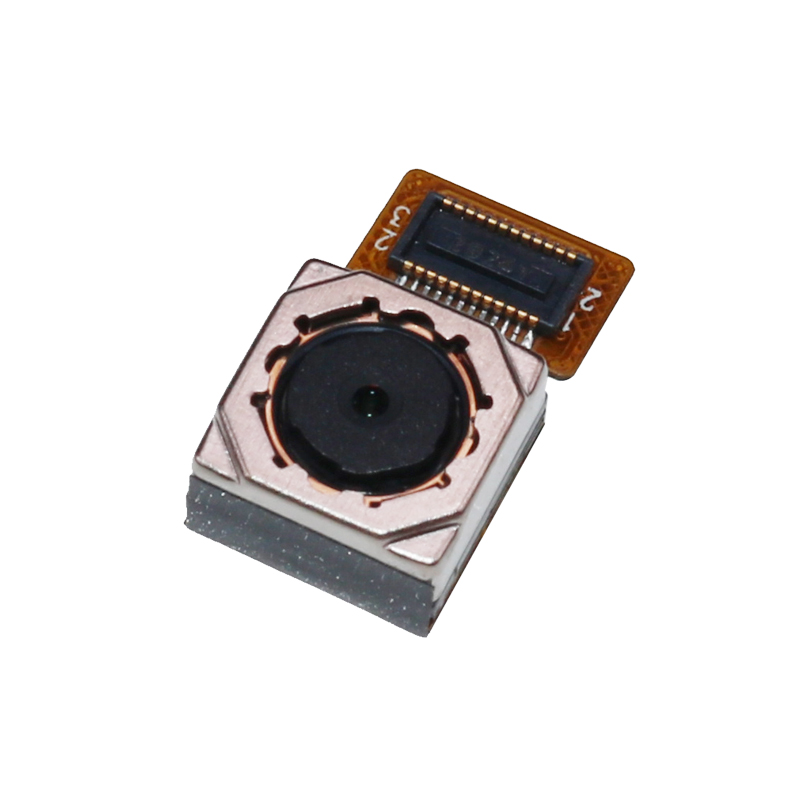

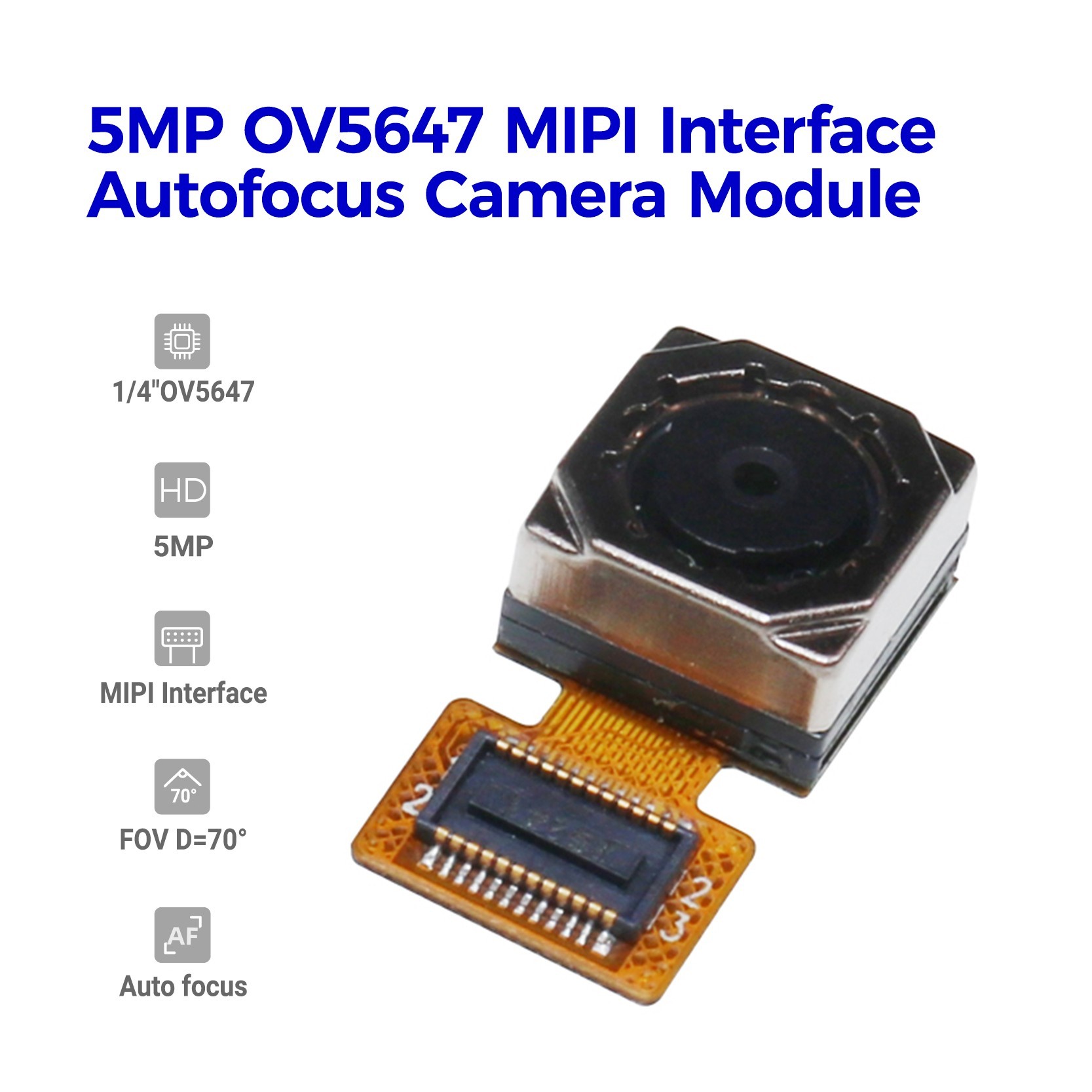

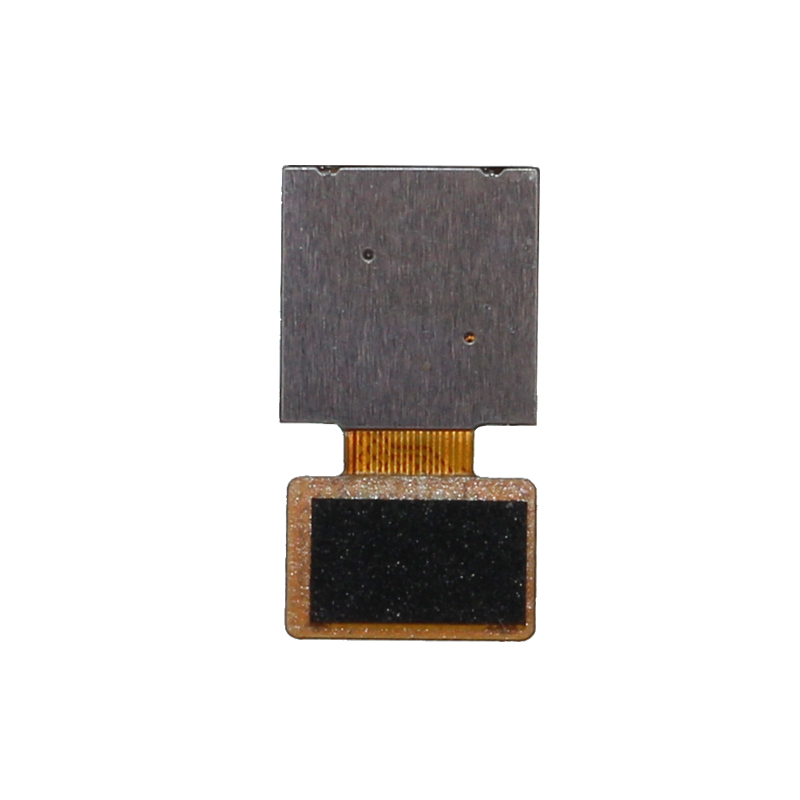

5MP OV5647 Sensor Auto Focus MIPI Camera Module

US $19.00 - US $20.90

US $20.00 - US $22.00

Production Lead Time:

7 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-H7MA-OV5647 V1.0

Image Sensor:

OV5647

View Angle:

70°(DFOV)

Focusing:

Resolution:

5MP

Module Size:

15.60 x 8.50 mm

Interface:

MIPI

Description

Contact Supplier

Product Description

HAMPO-H7MA-OV5647 V1.0 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5647 CMOS image sensor,which was built on OmniVision's proprietary 1.4-micron OmniBSI™ backside illumination pixel architecture. The OV5647 camera module delivers 5-megapixel photography in addition to high frame rate of 720p/60 and 1080p/30 high-definition (HD) video capture in an industry standard camera module size of 8.5 x 8.5 x 5 mm, making it an ideal solution for the mainstream mobile phone market.

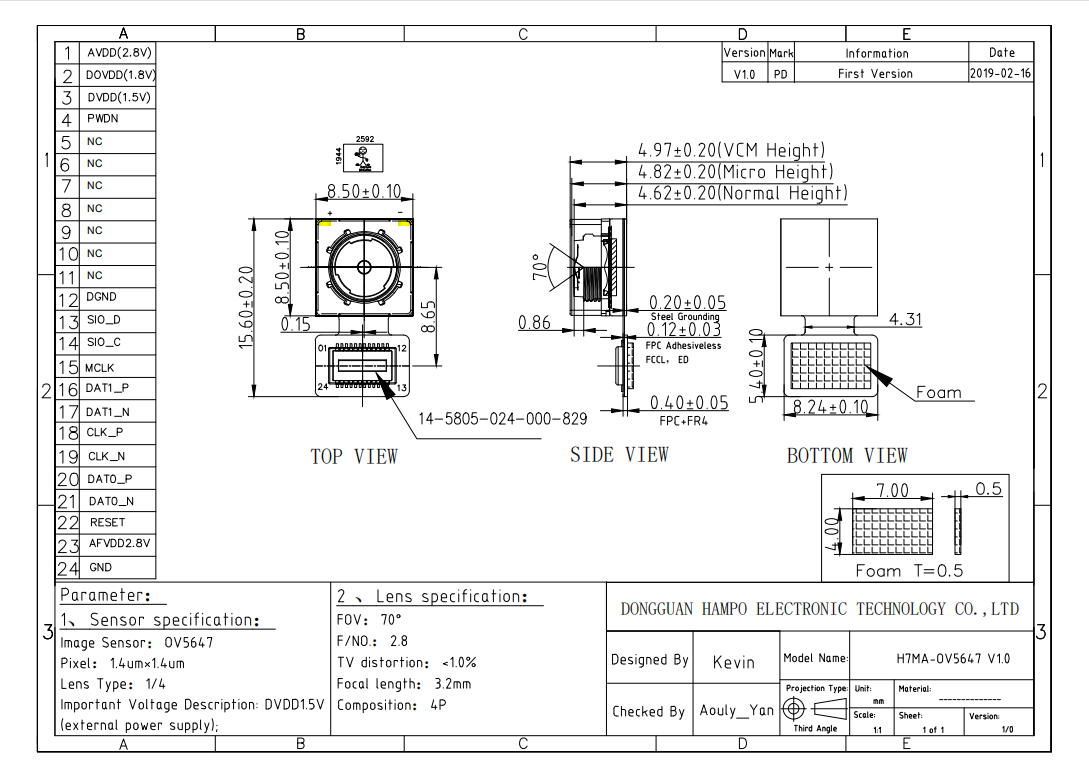

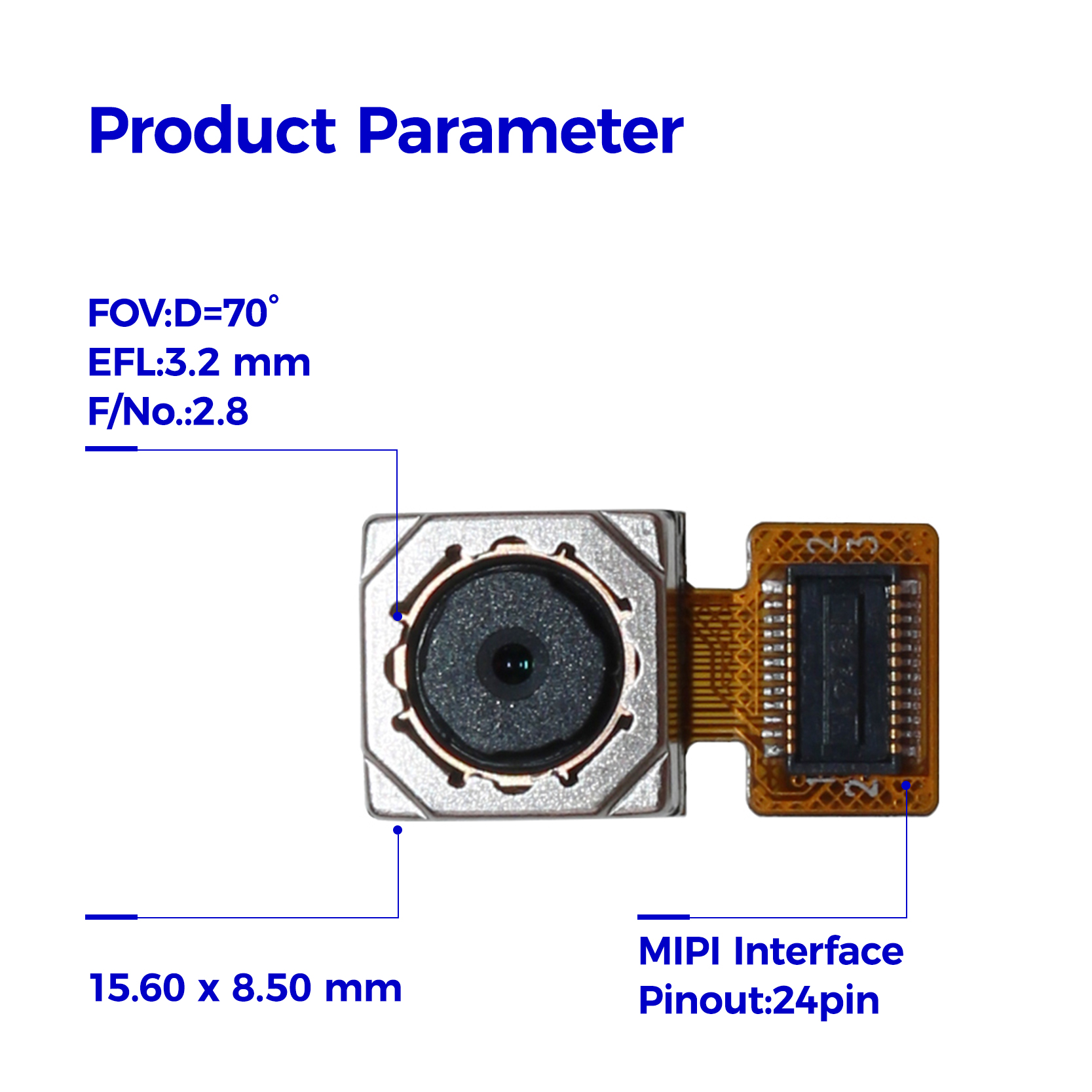

Specification

Camera Module No.	HAMPO-H7MA-OV5647 V1.0
Resolution	5MP
Image Sensor	OV5647
Sensor Size	1/4"
Pixel Size	1.4 um x 1.4 um
EFL	3.2 mm
F/No.	2.8
Pixel	2592 x 1944
View Angle	70.0°(DFOV) 58.6°(HFOV) 45.3°(VFOV)
Lens Dimensions	8.50 x 8.50 x 4.97 mm
Module Size	15.60 x 8.50 mm
Focusing	Auto Focus
Interface	MIPI
Lens Type	650nm IR Filter Lens
Operating Temperature	-30°C to +70°C
